TA7FSH Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

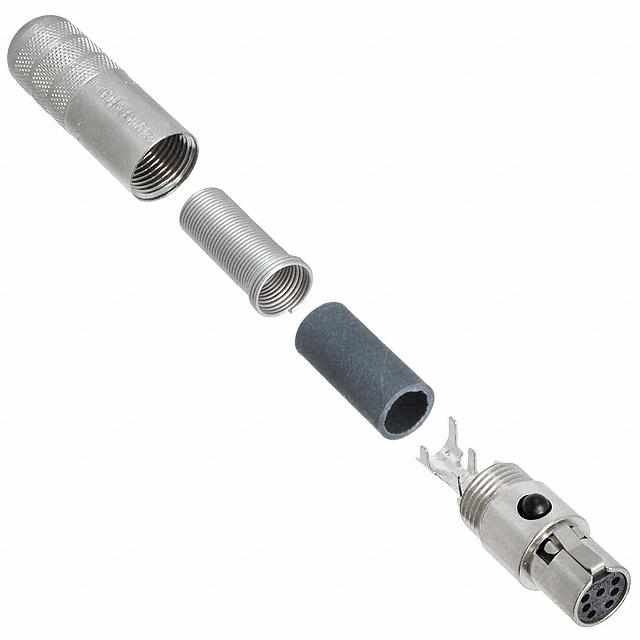

SHIELDED MINI XLR, 7 CONTACTS, FEMALE, SILVER PLATED CONTACTS, WITH FLEX RELIEF
| Part | Fastening Type | Shell Material | Voltage Rating | Contact Finish - Mating | Contact Material | Shell Finish | Color | Backshell Material, Plating | Shell Size - Insert | Mounting Type | Orientation | Features | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Connector Type | Shielding | Number of Positions | Material Flammability Rating | Current Rating (Amps) | Termination | Insert Material | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Latch Lock | Copper Alloy | 125 VAC | Silver | Copper Alloy | Nickel | Silver | Copper Alloy Nickel | Mini XLR | Free Hanging (In-Line) | Keyed | Backshell Cable Clamp Ground Strain Relief | -55 C | 85 °C | Audio Medical | Plug Female Sockets | Shielded | 7 | UL94 V-0 | 1.5 A | Solder | Thermoplastic | Metal |
