315-038 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 38POS 0.156

Part	Material - Insulation	Termination Rows [custom]	Card Type	Mounting Type	Contact Finish	Read Out	Contact Finish Thickness	Contact Finish Thickness	Features	Flange Feature	Contact Type	Number of Positions	Contact Material	Number of Positions/Bay/Row	Number of Rows [custom]	Pitch	Pitch	Color	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Max]	Card Thickness [Min]	Gender	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 315-038-556-258	Polyester Thermoplastic	2	Non Specified - Dual Edge	Board Edge Straddle Mount	Gold	Dual	0.25 Ám	10 Áin	Card Extender Card Guides	4-40 Flush Mount Threaded Insert Top Opening	Semi Bellows	38	Copper Alloy	19	2	3.96 mm	0.156 in	Green	Solder	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female
EDAC Inc. 315-038-520-258	Polyester Thermoplastic	2	Non Specified - Dual Edge	Panel Mount Through Hole	Gold	Dual	0.25 Ám	10 Áin		4-40 Flush Mount Threaded Insert Top Opening	Semi Bellows	38	Copper Alloy	19	2	3.96 mm	0.156 in	Green	Solder	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female
EDAC Inc. 315-038-556-203	Polyester Thermoplastic	2	Non Specified - Dual Edge	Board Edge Straddle Mount	Gold	Dual	0.25 Ám	10 Áin	Card Extender	Floating Bobbin Flush Mount	Semi Bellows	38	Copper Alloy	19	2	3.96 mm	0.156 in	Green	Solder	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.116 "	2.95 mm
EDAC Inc. 315-038-500-207	Polyester Thermoplastic	2	Non Specified - Dual Edge	Panel Mount	Gold	Dual	0.25 Ám	10 Áin		Flush Mount M3 Threaded Insert Top Opening	Semi Bellows	38	Copper Alloy	19	2	3.96 mm	0.156 in	Green	Solder Eyelet(s)	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female

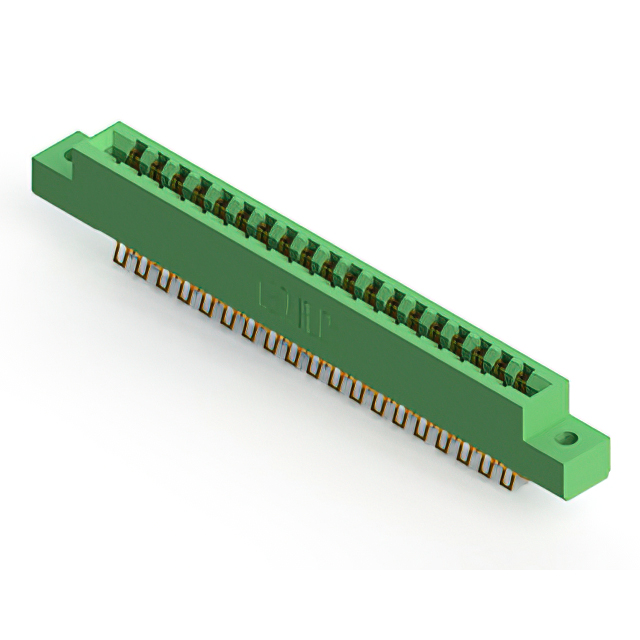

EDAC Inc. 315-038-555-202	Polyester Thermoplastic	2	Non Specified - Dual Edge	Board Edge Straddle Mount	Gold	Dual	0.25 Ám	10 Áin	Card Extender	Flush Mount Top Opening Unthreaded	Semi Bellows	38	Copper Alloy	19	2	3.96 mm	0.156 in	Green	Solder	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.128 "	3.25 mm

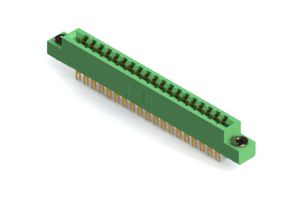

EDAC Inc. 315-038-500-203	Polyester Thermoplastic	2	Non Specified - Dual Edge	Panel Mount	Gold	Dual	0.25 Ám	10 Áin		Floating Bobbin Flush Mount	Semi Bellows	38	Copper Alloy	19	2	3.96 mm	0.156 in	Green	Solder Eyelet(s)	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.116 "	2.95 mm

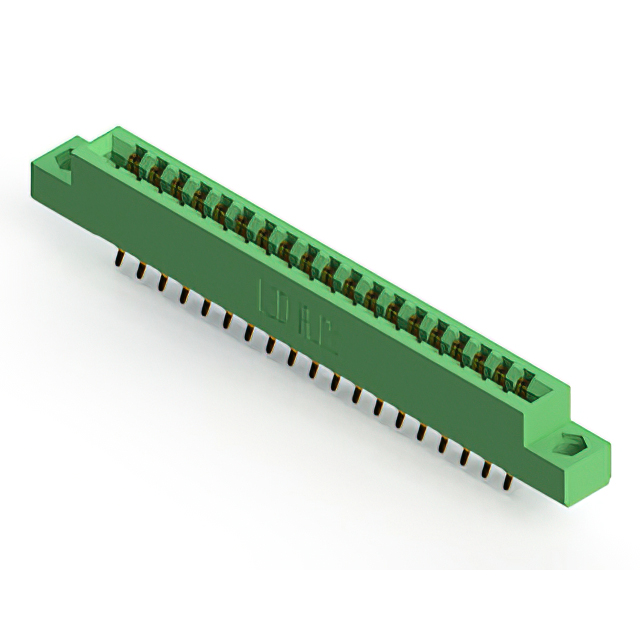

EDAC Inc. 315-038-556-204	Polyester Thermoplastic	2	Non Specified - Dual Edge	Board Edge Straddle Mount	Gold	Dual	0.25 Ám	10 Áin	Card Extender	Flush Mount Top Opening Unthreaded	Semi Bellows	38	Copper Alloy	19	2	3.96 mm	0.156 in	Green	Solder	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.156 "	3.96 mm

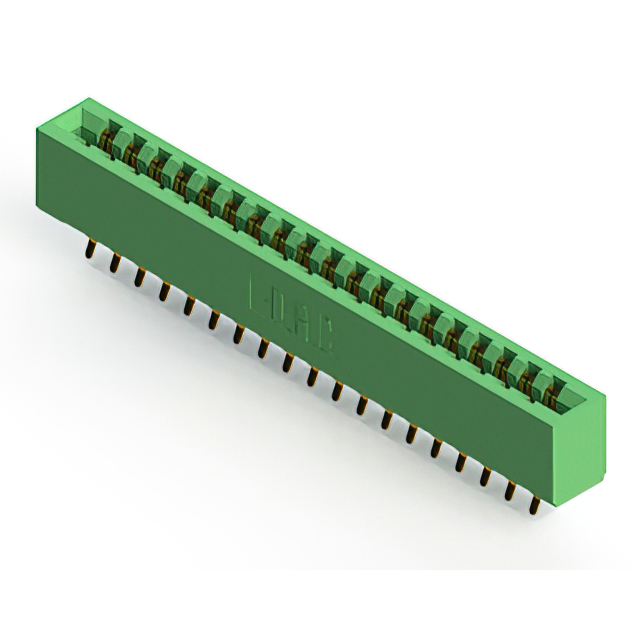

EDAC Inc. 315-038-556-201	Polyester Thermoplastic	2	Non Specified - Dual Edge	Board Edge Straddle Mount	Gold	Dual	0.25 Ám	10 Áin	Card Extender		Semi Bellows	38	Copper Alloy	19	2	3.96 mm	0.156 in	Green	Solder	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female
EDAC Inc. 315-038-555-268	Polyester Thermoplastic	2	Non Specified - Dual Edge	Board Edge Straddle Mount	Gold	Dual	0.25 Ám	10 Áin	Card Extender Card Guides	4-40 Flush Mount Threaded Insert Top Opening	Semi Bellows	38	Copper Alloy	19	2	3.96 mm	0.156 in	Green	Solder	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female

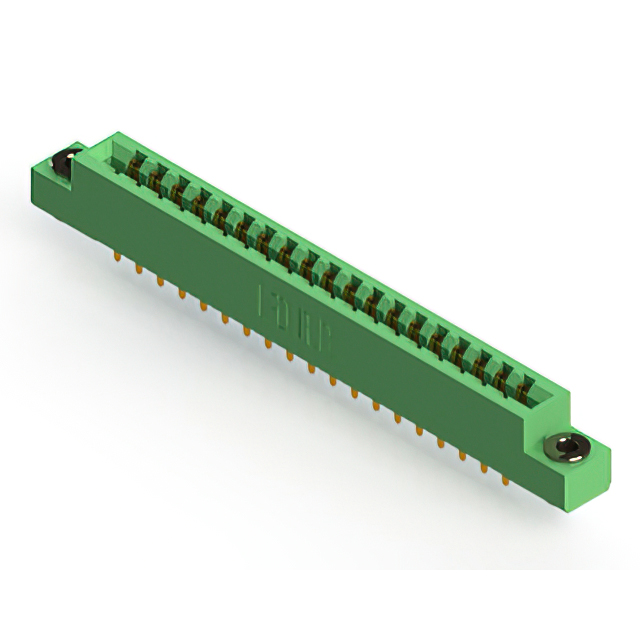

EDAC Inc. 315-038-521-203	Polyester Thermoplastic	2	Non Specified - Dual Edge	Panel Mount Through Hole	Gold	Dual	0.25 Ám	10 Áin		Floating Bobbin Flush Mount	Semi Bellows	38	Copper Alloy	19	2	3.96 mm	0.156 in	Green	Solder	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.116 "	2.95 mm
