PAT-01 Series

Catalog

SCA-SCU SM 2MM YELLOW SIMPLEX 1M

Part	Return Loss	Return Loss	Color - Connectors	Color - Cable	Jacket (Insulation) Material	Insertion Loss	Operating Temperature (Min)	Operating Temperature (Max)	Type	Ratings	Length - Overall	1st Connector	Fiber Core Diameter	Fiber Cladding Diameter	2nd Connector	Cable Type	Features	Cable Diameter

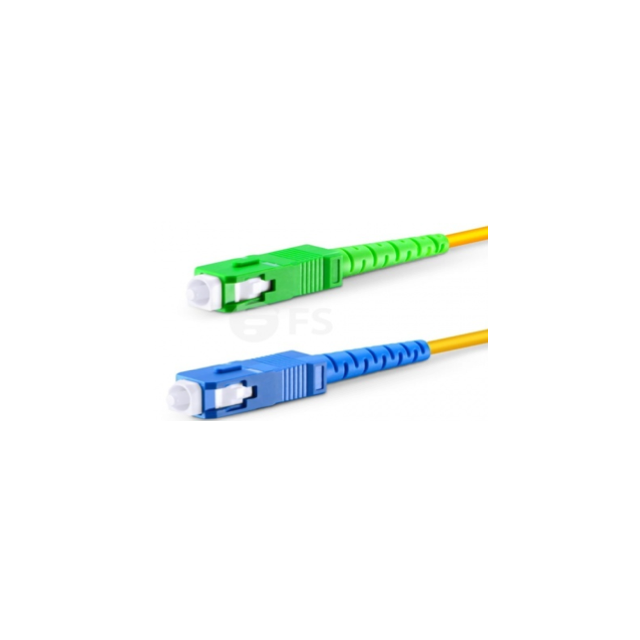

FiberSource, Inc PAT-01-DC-B-20-S-9	55 dB 65 dB	55dB 65dB	Blue Green	Yellow	Low Smoke Zero Halogen (LSZH)	0.2 dB	-40 °C	85 °C	Simplex Singlemode	LSZH	3.3 ft	SC/APC	9 µm	125 µm	SC/UPC	Bend Insensitive Fiber (BIF)	Low Smoke	0.08 "

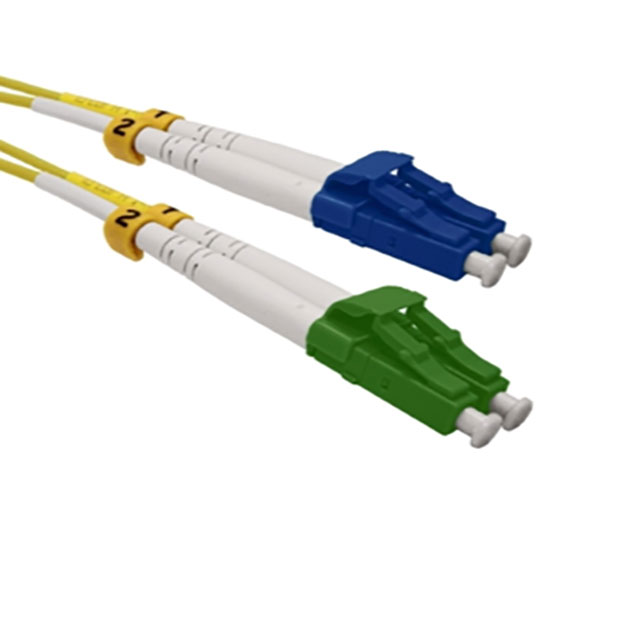

FiberSource, Inc PAT-01-JH-B-20-D-9	65 dB		Blue	Yellow		0.3 dB	-40 °C	85 °C	Duplex Singlemode	LSZH	3.3 ft	LC/APC	9 µm	125 µm	LC/UPC	Bend Insensitive Fiber (BIF)	Low Smoke	0.08 "
FiberSource, Inc PAT-01-HC-B-20-D-9	55 dB		Blue	Yellow		0.3 dB	-40 °C	85 °C	Duplex Singlemode	LSZH	3.3 ft	LC Duplex	9 µm	125 µm	SC Duplex	Bend Insensitive Fiber (BIF)	Low Smoke	0.08 "

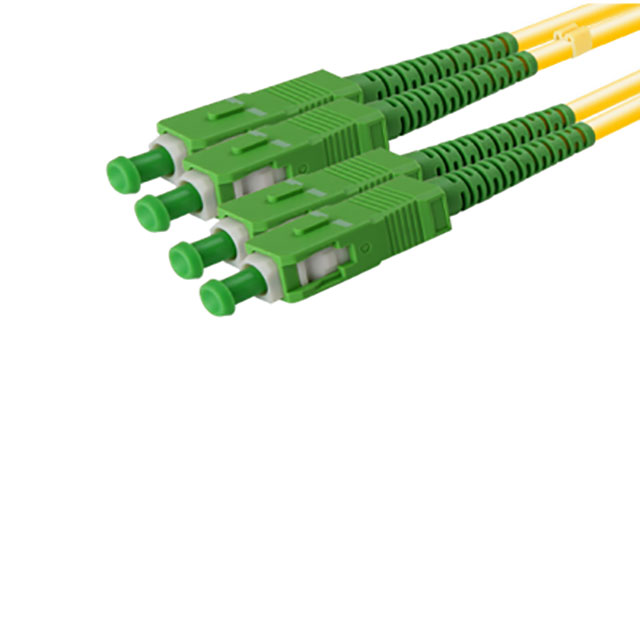

FiberSource, Inc PAT-01-DD-B-20-D-9	65 dB		Blue	Yellow		0.3 dB	-40 °C	85 °C	Duplex Singlemode	LSZH	3.3 ft	SC Duplex	9 µm	125 µm	SC Duplex	Bend Insensitive Fiber (BIF)	Low Smoke	0.08 "

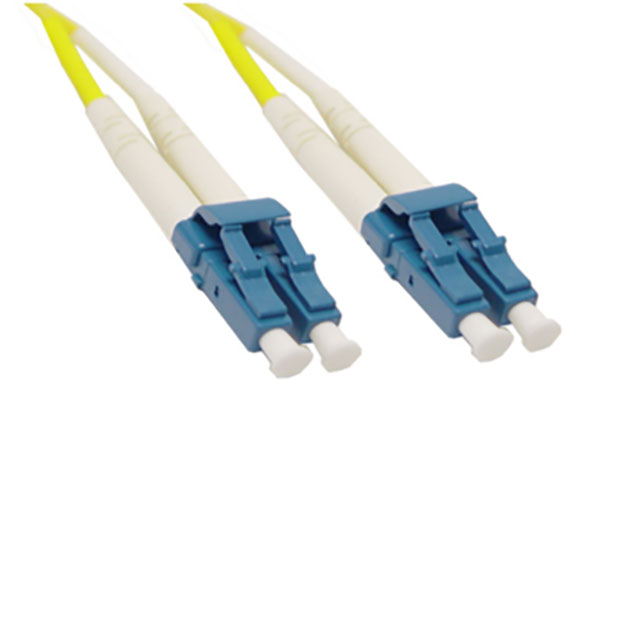

FiberSource, Inc PAT-01-HH-B-20-D-9	55 dB		Blue	Yellow		0.3 dB	-40 °C	85 °C	Duplex Singlemode	LSZH	3.3 ft	LC Duplex	9 µm	125 µm	LC Duplex	Bend Insensitive Fiber (BIF)	Low Smoke	0.08 "
FiberSource, Inc PAT-01-NN-F-20-D-A			Blue	Aqua			-40 °C	85 °C	Duplex Multimode OM3		3.3 ft	LC/PPC	50 µm	125 µm	LC/PPC			0.08 "

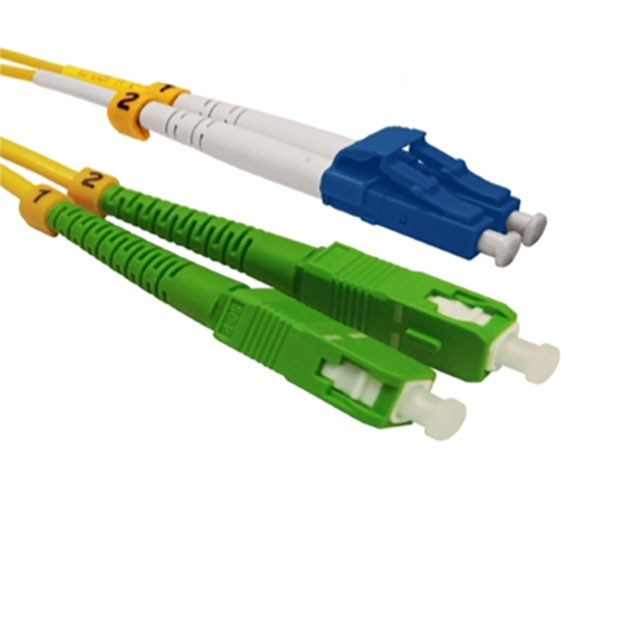

FiberSource, Inc PAT-01-HD-B-20-D-9	65 dB		Blue	Yellow		0.3 dB	-40 °C	85 °C	Duplex Singlemode	LSZH	3.3 ft	LC/UPC	9 µm	125 µm	SC/APC	Bend Insensitive Fiber (BIF)	Low Smoke	0.08 "

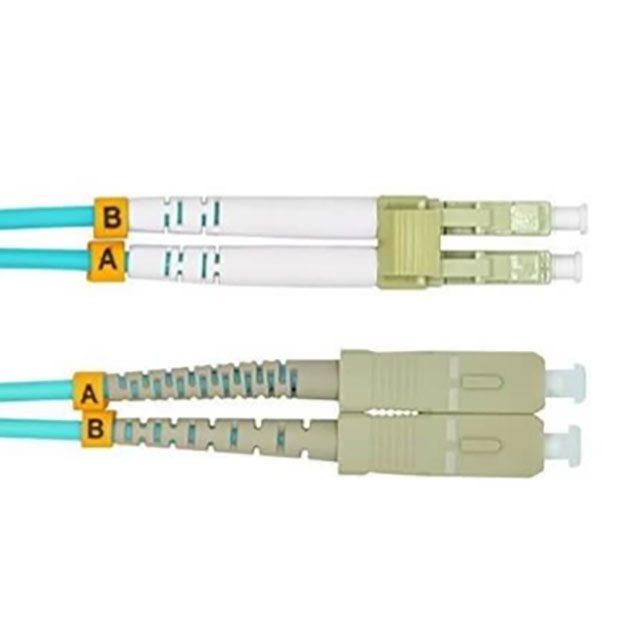

FiberSource, Inc PAT-01-NL-F-20-D-A			Blue	Aqua			-40 °C	85 °C	Duplex Multimode OM3		3.3 ft	LC/PPC	50 µm	125 µm	SC/PPC			0.08 "

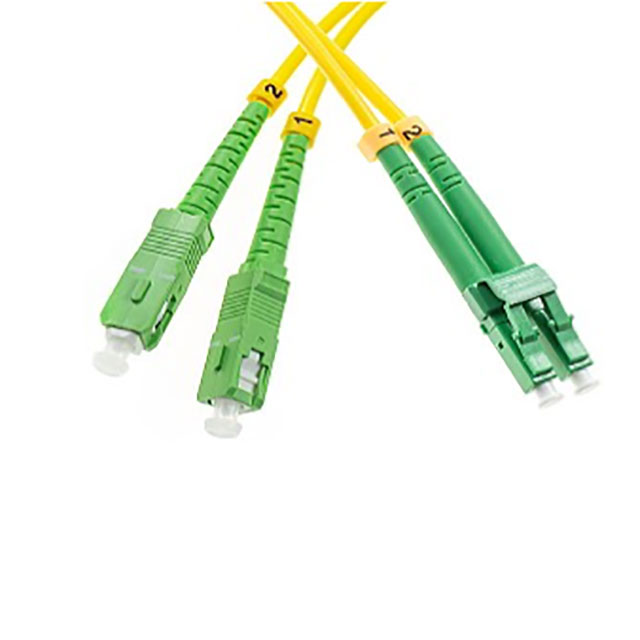

FiberSource, Inc PAT-01-JD-B-20-D-9	65 dB		Blue	Yellow		0.3 dB	-40 °C	85 °C	Duplex Singlemode	LSZH	3.3 ft	LC Duplex	9 µm	125 µm	SC Duplex	Bend Insensitive Fiber (BIF)	Low Smoke	0.08 "
FiberSource, Inc PAT-01-CC-B-20-D-9	55 dB		Blue	Yellow		0.3 dB	-40 °C	85 °C	Duplex Singlemode	LSZH	3.3 ft	SC Duplex	9 µm	125 µm	SC Duplex	Bend Insensitive Fiber (BIF)	Low Smoke	0.08 "
