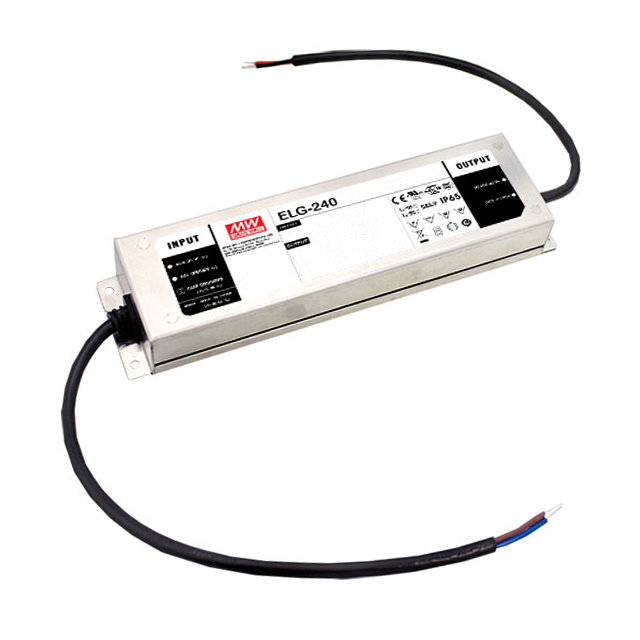

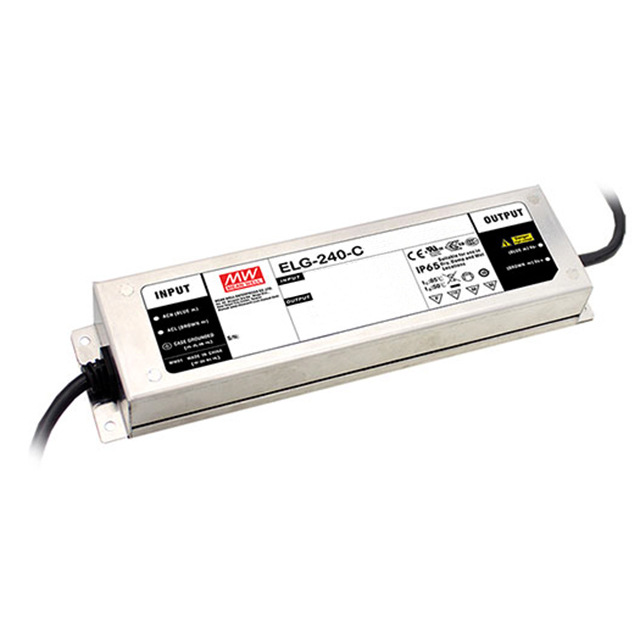

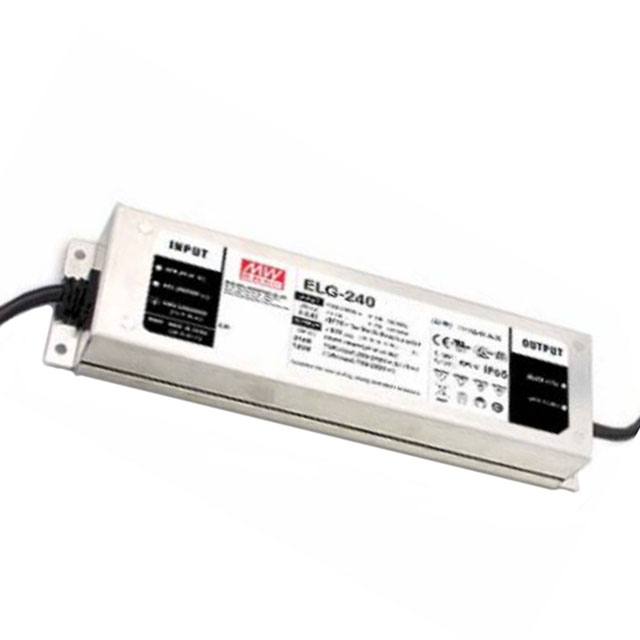

ELG-240 Series

Catalog

LED CC AC/DC DRIVER 240W

Part	Mounting Type	Number of Outputs	Current - Output (Max) [Max]	Termination Style	Voltage - Input (Min) [Min]	Efficiency	Voltage - Output [Min]	Voltage - Output [Max]	Topology	Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Isolation	Approval Agency	Features	Ratings	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Type	Dimming	Current - Output (Max)	Voltage - Output
MEAN WELL USA Inc. ELG-240-C700-3Y	Chassis Mount	1	700 mA	Wire Leads	100 VAC	93 %	172 V	343 V	AC DC Converter	305 VAC	2.8 in	37.5 mm	220 mm	8.66 in	71 mm	1.48 "	3750 VDC	CB CCC CE cURus EAC ENEC KC RCM	OTP OVP SCP	IP67	180 W	85 °C	-40 C	Constant Current
MEAN WELL USA Inc. ELG-240-C1400	Chassis Mount	1	1.4 A	Wire Leads	100 VAC	93 %	86 V	171 V	AC DC Converter	305 VAC	2.8 in	37.5 mm	220 mm	8.66 in	71 mm	1.48 "	3750 VDC	CB CCC CE cURus ENEC	OTP OVP SCP	IP67	239 W	85 °C	-40 C	Constant Current
MEAN WELL USA Inc. ELG-240-C1400AB3Y	Chassis Mount	1	1.4 A	Wire Leads	100 VAC	93 %	86 V	171 V	AC DC Converter	305 VAC	2.8 in	37.5 mm	220 mm	8.66 in	71 mm	1.48 "	3750 VDC	CB CCC CE cURus EAC ENEC KC RCM	OTP OVP SCP	IP65	239 W	85 °C	-40 C	Constant Current
MEAN WELL USA Inc. ELG-240-C1750B	Chassis Mount	1	1.75 A	Wire Leads	100 VAC	93 %	69 V	137 V	AC DC Converter	305 VAC	2.8 in	37.5 mm	220 mm	8.66 in	71 mm	1.48 "	3750 VDC	CB CCC CE cURus ENEC	OTP OVP SCP	IP67	240 Watts	85 °C	-40 C	Constant Current	Analog PWM
MEAN WELL USA Inc. ELG-240-C1050AB	Chassis Mount	1	1.05 A	Wire Leads	100 VAC	93 %	114 V	228 V	AC DC Converter	305 VAC	2.8 in	37.5 mm	220 mm	8.66 in	71 mm	1.48 "	3750 VDC	CB CCC CE cURus EAC ENEC KC RCM	OTP OVP SCP	IP65	180 W	85 °C	-40 C	Constant Current
MEAN WELL USA Inc. ELG-240-C2100DA	Chassis Mount	1	2.1 A	Wire Leads	100 VAC	93 %	57 V	115 VDC	AC DC Converter	305 VAC	2.8 in	37.5 mm	220 mm	8.66 in	71 mm	1.48 "	3750 VDC	CB CCC CE cURus EAC ENEC RCM	OTP OVP SCP	IP67	242 W	85 °C	-40 C	Constant Current
MEAN WELL USA Inc. ELG-240-48B	Chassis Mount	1		Wire Leads	100 VAC	93 %			AC DC Converter	305 VAC	2.8 in	37.5 mm	220 mm	8.66 in	71 mm	1.48 "	3750 VDC	CB CCC CE cURus ENEC	OCP OTP OVP SCP	IP67	240 Watts	90 °C	-40 C	Constant Current Voltage	Analog PWM	5 A	48 V
MEAN WELL USA Inc. ELG-240-42-3Y	Chassis Mount	1	5.71 A	Wire Leads	100 VAC	92.5 %			AC DC Converter	305 VAC	2.8 in	37.5 mm	220 mm	8.66 in	71 mm	1.48 "	3750 VDC	CB CCC CE cURus EAC ENEC KC RCM	OCP OTP OVP SCP	IP67	240 Watts	90 °C	-40 C	Constant Current Voltage			42 V

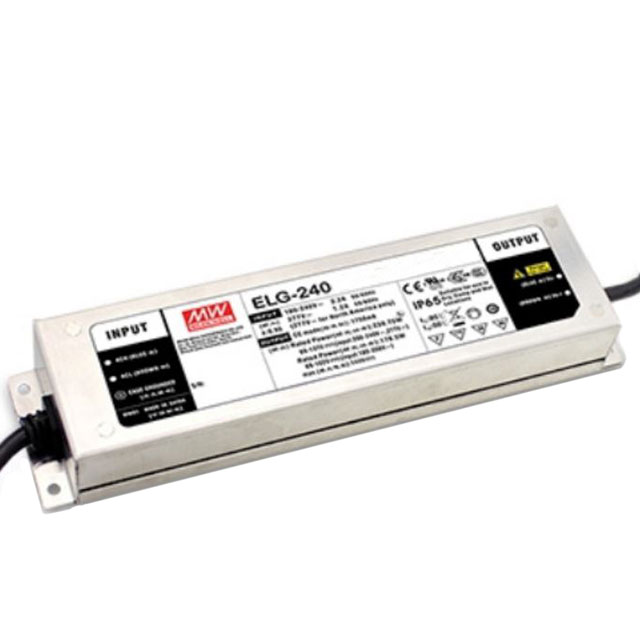

MEAN WELL USA Inc. ELG-240-C700DA	Chassis Mount	1	700 mA	Wire Leads	100 VAC	93 %	172 V	343 V	AC DC Converter	305 VAC	2.8 in	37.5 mm	220 mm	8.66 in	71 mm	1.48 "	3750 VDC	CB CCC CE cURus EAC ENEC KC RCM	OTP OVP SCP	IP67	180 W	85 °C	-40 C	Constant Current
MEAN WELL USA Inc. ELG-240-42A	Chassis Mount	1	5.71 A	Wire Leads	100 VAC	92.5 %			AC DC Converter	305 VAC	2.8 in	37.5 mm	220 mm	8.66 in	71 mm	1.48 "	3750 VDC	CB CCC CE cURus ENEC	OCP OTP OVP SCP	IP65	240 Watts	90 °C	-40 C	Constant Current Voltage	PWM		42 V
