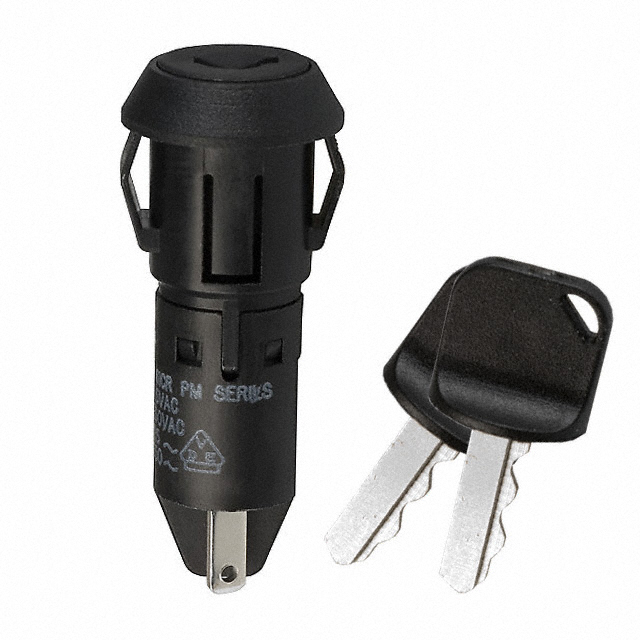

PM061UEB Series
Manufacturer: LITTELFUSE
Beta
⌘K
SWITCH: KEY SWITCH; STABL.POS: 2; SWITCH.METHOD: OFF-ON; KEY: FLAT
| Part | Depth Behind Flange | Electrical Life | Mounting Type | Voltage Rating - DC | Voltage Rating - AC | Current Rating (Amps) | Key Removable Positions | Angle of Throw | Actuator Type | Number of Positions | Termination Style | Contact Material | Switch Function | Contact Finish | Contact Timing | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 34.52 mm | 10000 Cycles | Panel Mount Snap-In | 28 V | 125 V | 4 A | All | 90 ° | Flat Key | 2 | Quick Connect - 0.110" (2.8mm) | Copper | Off-On | Silver | Not Specified | SPST |
