ASB02505 Series

Catalog

FAN AXIAL 25X10MM 5VDC WIRE

Part	Material - Frame	Current Rating (Amps)	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Size / Dimension [x]	Size / Dimension [z]	Air Flow	Air Flow	Width [y]	RPM	Features	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Fan Type	Weight	Weight	Bearing Type	Power (Watts)	Static Pressure	Static Pressure	Noise

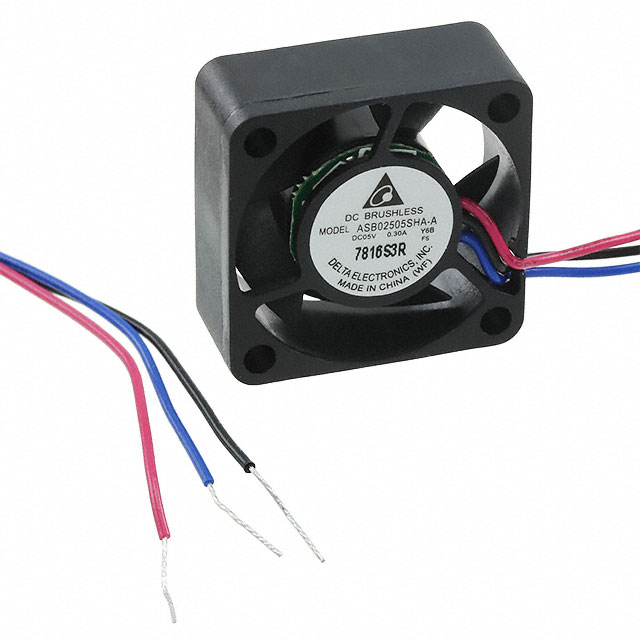

Delta Electronics ASB02505SHA-AY6B	Plastic	120 mA	20000 Hrs	5.5 V	4 VDC	Plastic	25 mm	25 mm	4.3 CFM	0.12 m³/min	10 mm	15000 RPM	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	70 °C	-10 °C	5 V	Tubeaxial	6.35 g	0.014 lb	Sleeve	600 mW	79.7 Pa	0.32 in H2O	31 dB(A)

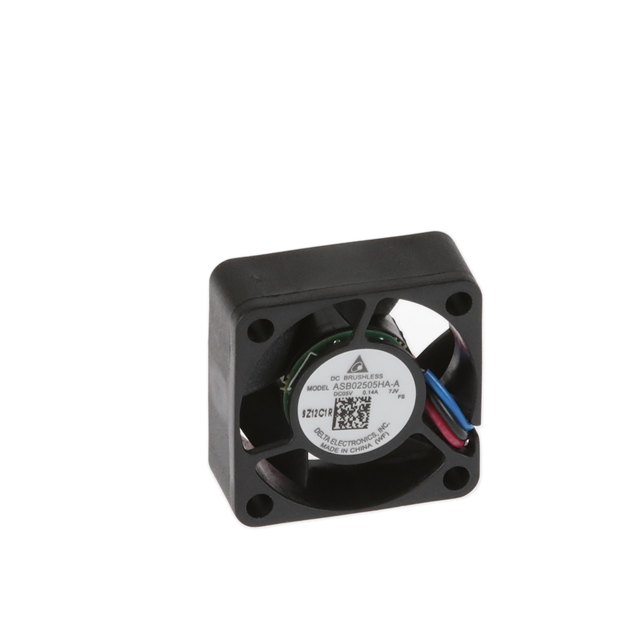

Delta Electronics ASB02505HA-A7JV	Plastic	0.09 A	30000 Hrs	5.5 V	4 VDC	Plastic	25 mm	25 mm	2.2 CFM	0.061 m³/min	10 mm	9000 RPM	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	70 °C	-10 °C	5 V	Tubeaxial	6.35 g	0.014 lb	Sleeve	450 mW	28.4 Pa	0.114 in H2O	18 dB(A)

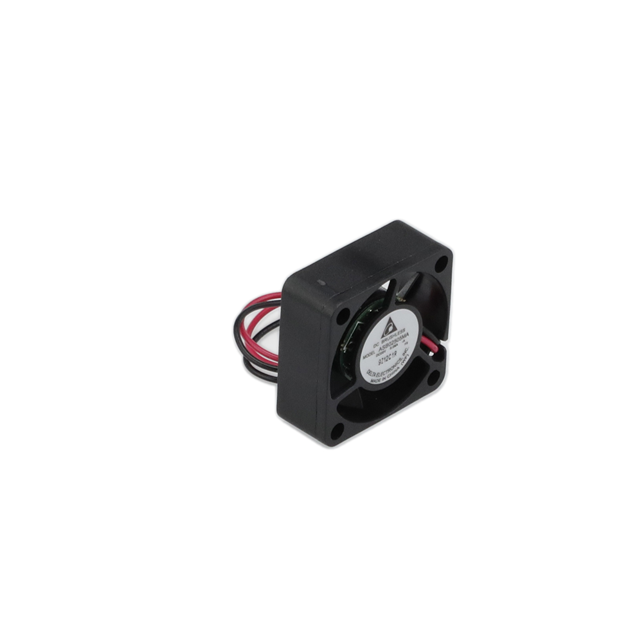

Delta Electronics ASB02505MA-A	Plastic	60 mA	20000 Hrs	6 VDC	4 VDC	Plastic	25 mm	25 mm			10 mm	7000 RPM		2 Wire Leads	70 °C	-10 °C	5 V	Tubeaxial	8.16 g	0.018 lb	Sleeve	300 mW	20 Pa	0.08 in H2O	11 dB(A)
