MRB14B Series

Catalog

MINIATURE PCB PROCESS SEALED ROTARY

Part	Panel Cutout Dimensions [diameter]	Index Stops	Circuit per Deck	Current Rating (Amps)	Depth Behind Panel [custom]	Voltage Rating - DC	Number of Decks [custom]	Contact Material	Contact Finish	Mounting Type	Termination Style	Angle of Throw	Features	Actuator Length [x]	Contact Timing	Actuator Type	Number of Poles per Deck	Voltage Rating - AC
NKK Switches MRB14B-CA	0.25 in	Fixed	SP3T	0.4 VA	11 mm	28 V	1	Beryllium Copper	Gold	Panel Mount Through Hole	PC Pin	45 °	Sealed - Fully	15.8 mm	Non-Shorting (BBM)	Knob	1	28 V

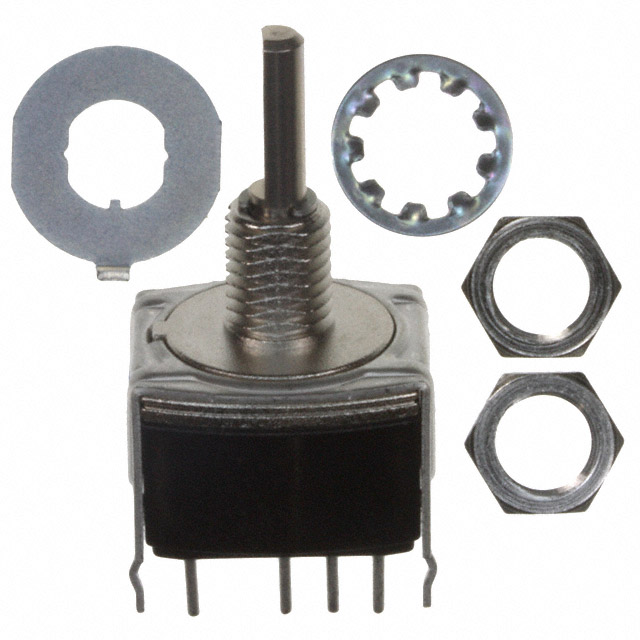

NKK Switches MRB14B	0.25 in	Fixed	SP3T	0.4 VA	11 mm	28 V	1	Beryllium Copper	Gold	Panel Mount Through Hole	PC Pin	45 °	Sealed - Fully	10 mm	Non-Shorting (BBM)	Flatted (3.17mm Dia)	1	28 V

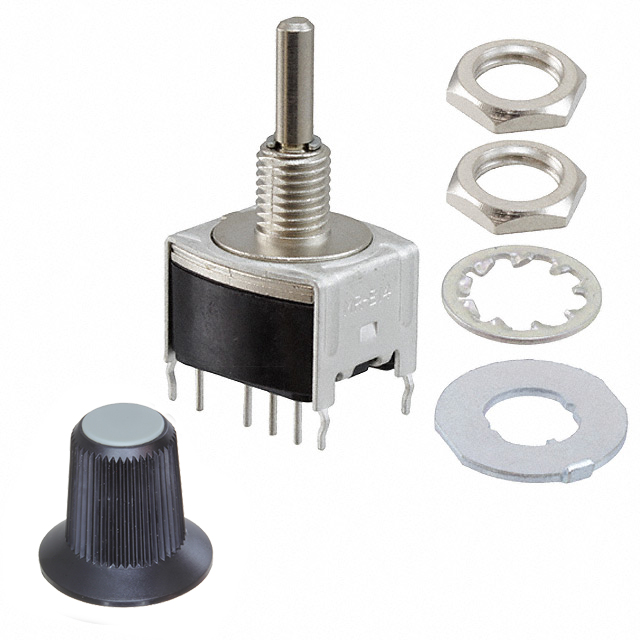

NKK Switches MRB14B-BH	0.25 in	Fixed	SP3T	0.4 VA	11 mm	28 V	1	Beryllium Copper	Gold	Panel Mount Through Hole	PC Pin	45 °	Sealed - Fully	14.3 mm	Non-Shorting (BBM)	Knob	1	28 V

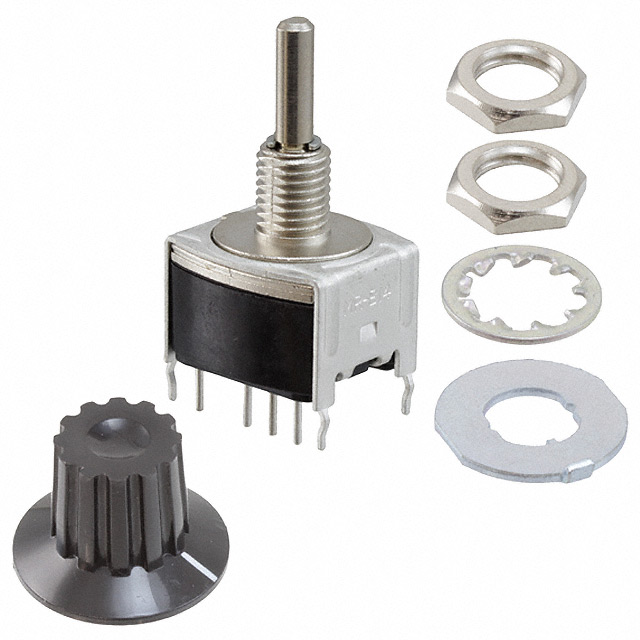

NKK Switches MRB14B-A	0.25 in	Fixed	SP3T	0.4 VA	11 mm	28 V	1	Beryllium Copper	Gold	Panel Mount Through Hole	PC Pin	45 °	Sealed - Fully	13 mm	Non-Shorting (BBM)	Knob	1	28 V
NKK Switches MRB14B-BA	0.25 in	Fixed	SP3T	0.4 VA	11 mm	28 V	1	Beryllium Copper	Gold	Panel Mount Through Hole	PC Pin	45 °	Sealed - Fully	14.3 mm	Non-Shorting (BBM)	Knob	1	28 V
