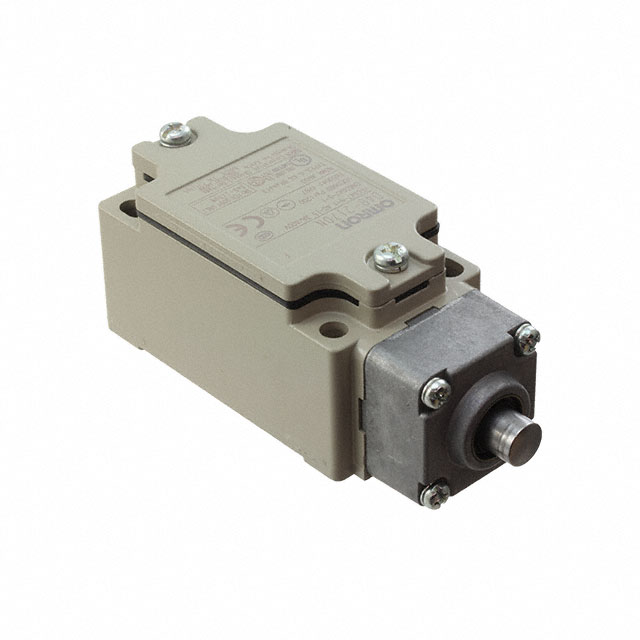

D4B-2170 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SWITCH SNAP ACTION SPDT 10A 120V
| Part | Release Force | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Differential Travel | Differential Travel | Ingress Protection | Voltage Rating - DC | Voltage Rating - AC | Circuit | Pretravel | Pretravel | Operating Force | Mechanical Life | Switch Function | Operating Position | Operating Position | Mounting Type | Electrical Life | Termination Style | Actuator Type | Overtravel | Overtravel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | 200 gf | 80 °C | -40 C | 6 A 10 A | 1 mm | 0.04 in | IP67 - Dust Tight Waterproof | 30 V | 120 V | SPDT (DB/DM) | 2 mm | 0.08 in | 1900 gf | 30000000 Cycles | On-Mom | 1.38 in | 35 mm | Chassis Mount | 500000 Cycles | Screw Terminal | Round (Pin Plunger) | 0.197 " | 5 mm |
