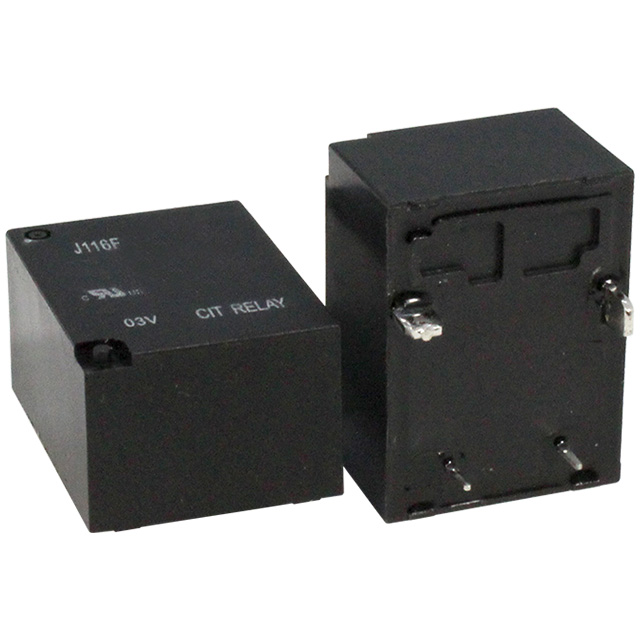

J116F11 Series

Catalog

RELAY GEN PURPOSE SPST 50A 5V

Part	Coil Resistance	Load - Max Switching [Max]	Contact Rating (Current)	Coil Type	Contact Form	Coil Voltage	Termination Style	Release Time	Relay Type	Must Operate Voltage	Contact Material	Operate Time	Seal Rating	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Switching Voltage [Max]	Must Release Voltage	Coil Current
CIT Relay and Switch J116F11AW5VDCS1.5	17 Ohms	13850 VA	50 A	Non Latching	SPST-NO (1 Form A)	5 VDC	PC Pin	10 ms	General Purpose	3.75 VDC	Silver Tin Oxide (AgSnO)	15 ms	Sealed - Fully	Through Hole	125 °C	-40 C	277 VAC	0.5 VDC	294.1 mA
CIT Relay and Switch J116F11A12VDCS1.5	96 Ohms	13850 VA	50 A	Non Latching	SPST-NO (1 Form A)	12 VDC	PC Pin	10 ms	General Purpose	9 VDC	Silver Tin Oxide (AgSnO)	15 ms	Sealed - Fully	Through Hole	125 °C	-40 C	277 VAC	1.2 VDC	125 mA
CIT Relay and Switch J116F11A5VDCS1.5	17 Ohms	13850 VA	50 A	Non Latching	SPST-NO (1 Form A)	5 VDC	PC Pin	10 ms	General Purpose	3.75 VDC	Silver Tin Oxide (AgSnO)	15 ms	Sealed - Fully	Through Hole	125 °C	-40 C	277 VAC	0.5 VDC	294.1 mA
CIT Relay and Switch J116F11AW24VDCS1.5	384 Ohms	13850 VA	50 A	Non Latching	SPST-NO (1 Form A)	24 VDC	PC Pin	10 ms	General Purpose	18 VDC	Silver Tin Oxide (AgSnO)	15 ms	Sealed - Fully	Through Hole	125 °C	-40 C	277 VAC	2.4 VDC	62.5 mA
CIT Relay and Switch J116F11A12VDCS.9	160 Ohms	13850 VA	50 A	Non Latching	SPST-NO (1 Form A)	12 VDC	PC Pin	10 ms	General Purpose	9 VDC	Silver Tin Oxide (AgSnO)	15 ms	Sealed - Fully	Through Hole	125 °C	-40 C	277 VAC	1.2 VDC	0.075 A
CIT Relay and Switch J116F11AW24VDCS.9	640 Ohms	13850 VA	50 A	Non Latching	SPST-NO (1 Form A)	24 VDC	PC Pin	10 ms	General Purpose	18 VDC	Silver Tin Oxide (AgSnO)	15 ms	Sealed - Fully	Through Hole	125 °C	-40 C	277 VAC	2.4 VDC	0.0375 A
CIT Relay and Switch J116F11A24VDCS1.5	384 Ohms	13850 VA	50 A	Non Latching	SPST-NO (1 Form A)	24 VDC	PC Pin	10 ms	General Purpose	18 VDC	Silver Tin Oxide (AgSnO)	15 ms	Sealed - Fully	Through Hole	125 °C	-40 C	277 VAC	2.4 VDC	62.5 mA
CIT Relay and Switch J116F11AW12VDCS1.5	96 Ohms	13850 VA	50 A	Non Latching	SPST-NO (1 Form A)	12 VDC	PC Pin	10 ms	General Purpose	9 VDC	Silver Tin Oxide (AgSnO)	15 ms	Sealed - Fully	Through Hole	125 °C	-40 C	277 VAC	1.2 VDC	125 mA
CIT Relay and Switch J116F11AW12VDCS.9	160 Ohms	13850 VA	50 A	Non Latching	SPST-NO (1 Form A)	12 VDC	PC Pin	10 ms	General Purpose	9 VDC	Silver Tin Oxide (AgSnO)	15 ms	Sealed - Fully	Through Hole	125 °C	-40 C	277 VAC	1.2 VDC	0.075 A
