UPLR2000 Series
Manufacturer: Cinch Connectivity Solutions Trompeter
Beta
⌘K

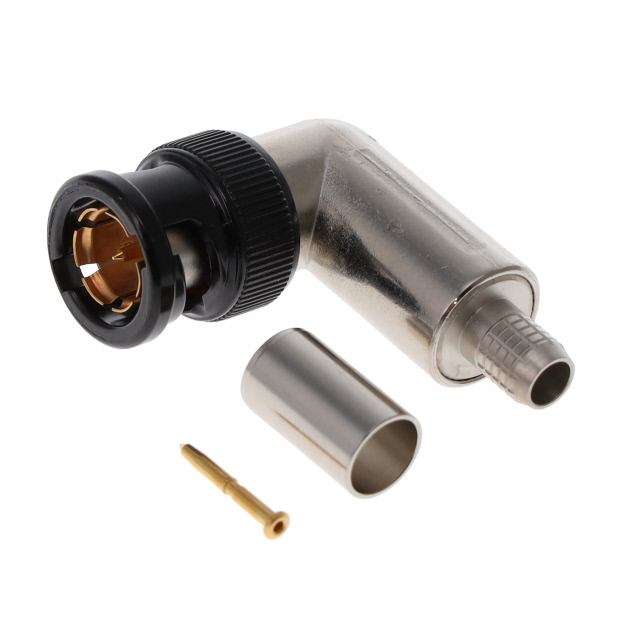

CONN BNC PLUG R/A 75 OHM CRIMP
| Part | Insertion Loss | Dielectric Material | Voltage Rating | Body Material | Mating Cycles | Body Finish | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Connector Style | Fastening Type | Cable Group | Housing Color | Contact Termination | Connector Type | Shield Termination | Center Contact Material | Number of Ports | Impedance | Mounting Type | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions Trompeter | 0.2 dB | Polytetrafluoroethylene (PTFE) | 500 V | Brass | 500 | Nickel | Gold | 85 °C | -40 C | BNC | Bayonet Lock | Belden 1505A | Black | Crimp | Plug Male Pin | Crimp | Brass | 1 | 75 Ohms | Free Hanging (In-Line) Right Angle | 6000 MHz |
