109L5724 Series

Catalog

FAN AXIAL 172X51MM 24VDC WIRE

Part	Material - Frame	Current Rating (Amps)	Material - Blade	Lifetime @ Temp.	Noise	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Fan Type	Static Pressure	Static Pressure	Approval Agency	Termination	Power (Watts)	Width [x]	Air Flow	Air Flow	Features	Bearing Type	Weight	Weight	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	RPM
Sanyo Denki America Inc. 109L5724H5D01	Aluminum	580 mA	Plastic	100000 Hrs	52 dB	Rectangular/Rounded	150 mm	172 mm	Tubeaxial	0.551 in H2O	137.2 Pa	CSA TUV UL	3 Wire Leads	13.92 W	51 mm	6.33 m³/min	226 CFM	Locked Rotor Sensor	Ball	1.7 lbs	760 g	24 VDC	-20 ░C	70 °C

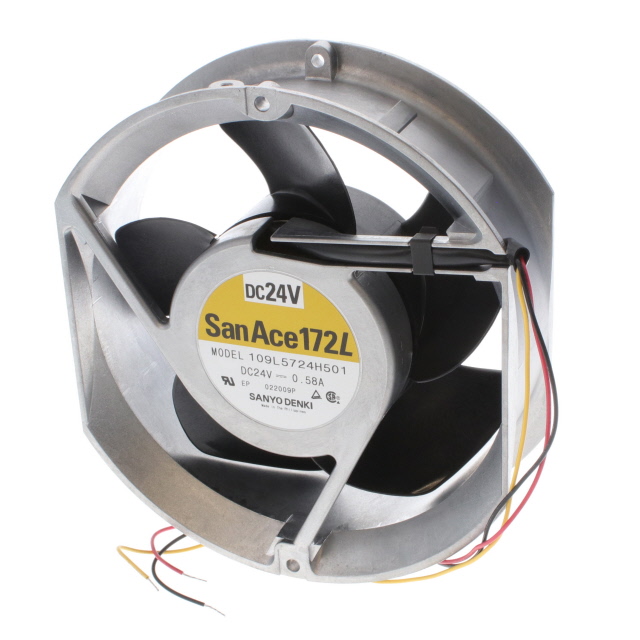

Sanyo Denki America Inc. 109L5724H501	Aluminum	580 mA	Plastic	100000 Hrs	52 dB	Rectangular/Rounded	150 mm	172 mm	Tubeaxial	0.551 in H2O	137.2 Pa	CSA TUV UL	3 Wire Leads	13.92 W	51 mm	6.33 m³/min	226 CFM	Speed Sensor (Tach)	Ball	1.7 lbs	760 g	24 VDC	-20 ░C	70 °C
Sanyo Denki America Inc. 109L5724M502	Aluminum	0.2 A	Plastic	100000 Hrs	41 dB	Rectangular/Rounded	150 mm	172 mm	Tubeaxial	0.271 in H2O	67.6 Pa	CSA TUV UL	2 Wire Leads	4.8 W	51 mm	4.14 mł/min	148 CFM		Ball	1.7 lbs	760 g	24 VDC	-20 ░C	70 °C	2000 RPM
Sanyo Denki America Inc. 109L5724M501	Aluminum	0.2 A	Plastic	100000 Hrs	41 dB	Rectangular/Rounded	150 mm	172 mm	Tubeaxial	0.271 in H2O	67.6 Pa	CSA TUV UL	3 Wire Leads	4.8 W	51 mm	4.14 mł/min	148 CFM	Speed Sensor (Tach)	Ball	1.7 lbs	760 g	24 VDC	-20 ░C	70 °C	2000 RPM
