2372112 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

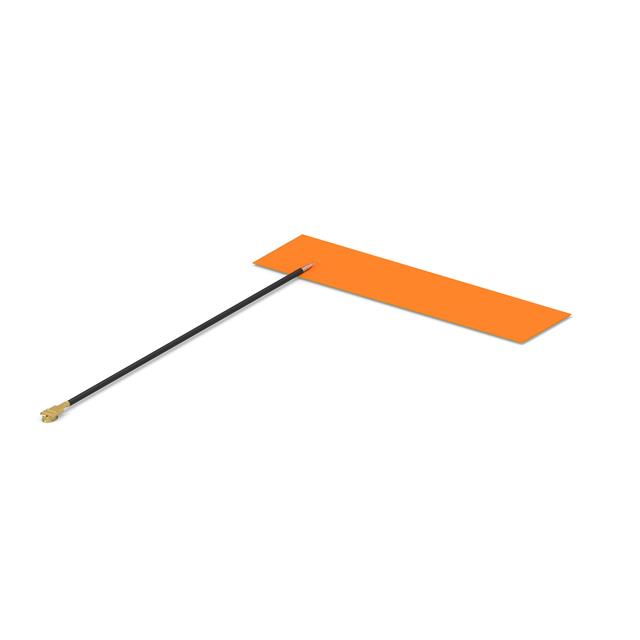

LTE ANTENNA COTS FPC ASSEMBLY 15
| Part | Features | Applications | Gain | VSWR | RF Family/Standard | Frequency Group | Antenna Type | Mounting Type | Frequency (Center/Band) | Height (Max) | Height (Max) [Max] | Number of Bands | Frequency Range [Min] | Frequency Range [Max] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Cable - 150mm | Cellular | 0 dBi | 3 | LTE UMTS WCDMA | Wide Band | PCB Trace | Adhesive | 1.94 GHz 2.5 GHz 829 MHz | 0.19 mm | 0.007 in | 3 | 1.71 GHz 2.3 GHz 698 MHz | 2.17 GHz 2.7 GHz 960 MHz | MHF |
