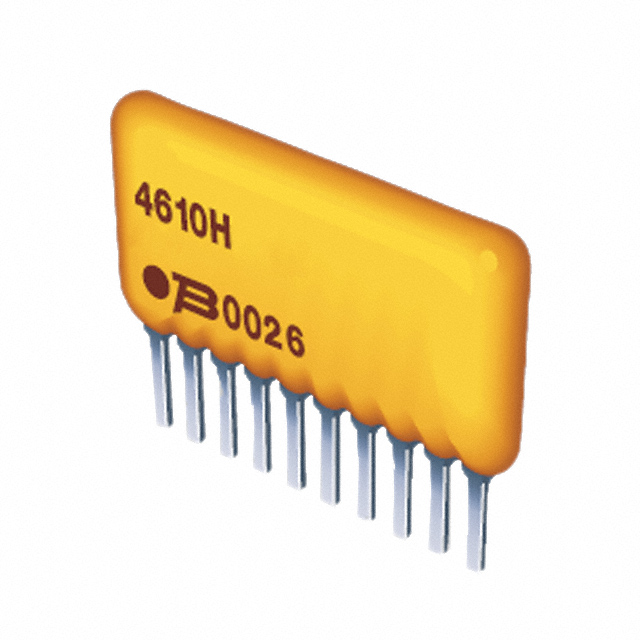

4610H Series
Manufacturer: Bourns Inc.
Beta
⌘K
RES ARRAY 9 RES 20K OHM 10SIP
| Part | Circuit Type | Number of Resistors | Height - Seated (Max) [Max] | Height - Seated (Max) | Number of Pins | Package / Case | Mounting Type | Temperature Coefficient | Supplier Device Package | Tolerance | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Resistance (Ohms) | Operating Temperature [Min] | Operating Temperature [Max] | Resistor-Ratio-Drift | Power Per Element | Resistance (Ohms) [custom] | Number of Resistors [custom] | Type | Resistance - Channel (Ohms) | Filter Order | Height | Height | Number of Channels | Voltage - Rated | Values [custom] | Values [custom] | Applications | Technology | ESD Protection | Values | Number of Channels [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Bussed | 9 | 0.35 in | 8.89 mm | 10 | 10-SIP | Through Hole | 100 ppm/°C | 10-SIP | 2 % | 0.998 in | 25.35 mm | 0.098 in | 2.49 mm | 20 kOhms | -55 C | 125 °C | 50 ppm/°C | 300 mW | ||||||||||||||||
Bourns Inc. | Isolated | 5 | 0.35 in | 8.89 mm | 10 | 10-SIP | Through Hole | 100 ppm/°C | 10-SIP | 2 % | 0.998 in | 25.35 mm | 0.098 in | 2.49 mm | -55 C | 125 °C | 50 ppm/°C | 500 mW | 68 kOhms | ||||||||||||||||
Bourns Inc. | Isolated | 5 | 0.35 in | 8.89 mm | 10 | 10-SIP | Through Hole | 100 ppm/°C | 10-SIP | 2 % | 0.998 in | 25.35 mm | 0.098 in | 2.49 mm | -55 C | 125 °C | 50 ppm/°C | 500 mW | 330 Ohms | ||||||||||||||||
 Bourns Inc. | Dual Terminator | 0.35 in | 8.89 mm | 10 | 10-SIP | Through Hole | 100 ppm/°C | 10-SIP | 2 % | 0.998 in | 25.35 mm | 0.098 in | 2.49 mm | -55 C | 125 °C | 50 ppm/°C | 300 mW | 1 kOhms 100 kOhms | 16 | ||||||||||||||||
Bourns Inc. | Bussed | 9 | 0.35 in | 8.89 mm | 10 | 10-SIP | Through Hole | 100 ppm/°C | 10-SIP | 2 % | 0.998 in | 25.35 mm | 0.098 in | 2.49 mm | -55 C | 125 °C | 50 ppm/°C | 300 mW | 3.3 kOhms | ||||||||||||||||
 Bourns Inc. | 10-SIP | Through Hole | 0.998 in | 25.35 mm | 0.15 " | 3.81 mm | -30 ░C | 85 °C | Low Pass | 120 Ohms | 1st | 0.335 in | 8.5 mm | 8 | 50 VDC | 120 Ohms | 100 pF | General Purpose | RC | ||||||||||||||||
Bourns Inc. | 10-SIP | Through Hole | 0.998 in | 25.35 mm | 0.15 " | 3.81 mm | -30 ░C | 85 °C | Low Pass | 100 Ohms | 1st | 0.335 in | 8.5 mm | 50 VDC | General Purpose | RC | 47 pF 100 Ohms | 9 | |||||||||||||||||
Bourns Inc. | Isolated | 5 | 0.35 in | 8.89 mm | 10 | 10-SIP | Through Hole | 100 ppm/°C | 10-SIP | 2 % | 0.998 in | 25.35 mm | 0.098 in | 2.49 mm | 12 kOhms | -55 C | 125 °C | 50 ppm/°C | 500 mW | ||||||||||||||||
Bourns Inc. | Isolated | 5 | 0.35 in | 8.89 mm | 10 | 10-SIP | Through Hole | 100 ppm/°C | 10-SIP | 2 % | 0.998 in | 25.35 mm | 0.098 in | 2.49 mm | 2 kOhms | -55 C | 125 °C | 50 ppm/°C | 500 mW | ||||||||||||||||
Bourns Inc. | Isolated | 5 | 0.35 in | 8.89 mm | 10 | 10-SIP | Through Hole | 100 ppm/°C | 10-SIP | 2 % | 0.998 in | 25.35 mm | 0.098 in | 2.49 mm | 1.2 kOhms | -55 C | 125 °C | 50 ppm/°C | 500 mW |
