201843 Series
Manufacturer: Molex
Beta
⌘K

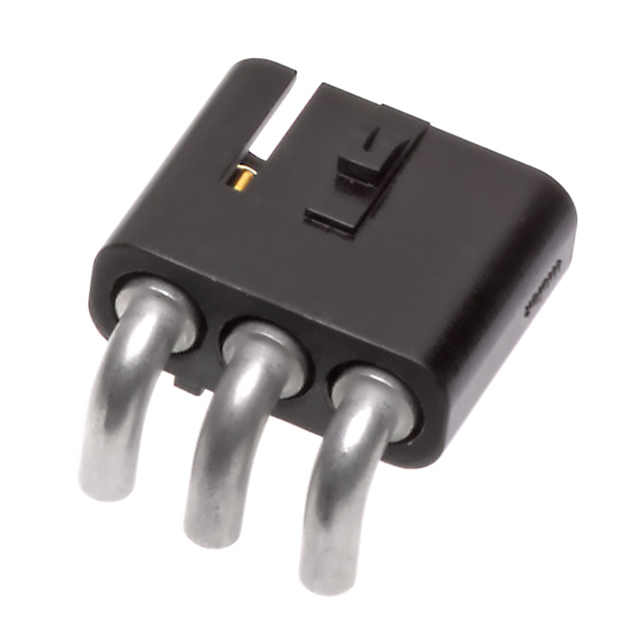

CONN HEADER R/A 3POS 7.4MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Applications | Features | Voltage Rating | Pitch - Mating | Pitch - Mating | Fastening Type | Style | Material Flammability Rating | Insulation Material | Mounting Type | Number of Rows | Number of Positions Loaded | Current Rating (Amps) | Termination | Contact Shape | Contact Type | Contact Finish - Post | Shrouding | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Insulation Height | Insulation Height [z] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 5 µm | 196.9 µin | Aerospace Automotive Industrial Medical | Board Guide | 1200 VDC | 0.291 in | 7.4 mm | Latch Lock | Board to Cable/Wire | UL94 V-0 | Polyetherimide (PEI) | Right Angle Through Hole | 1 | All | Varies by Wire Gauge | Solder | Circular | Male Pin | Tin | Shrouded - 4 Wall | Gray | -40 C | 150 °C | Copper Alloy | Header | 3.9 µin | 0.099 µm | Gold | 9.65 mm | 0.38 in | |
 Molex | 5 µm | 196.9 µin | Aerospace Automotive Industrial Medical | Board Guide | 1200 VDC | 0.291 in | 7.4 mm | Latch Lock | Board to Cable/Wire | UL94 V-0 | Polyetherimide (PEI) | Right Angle Through Hole | 1 | All | Varies by Wire Gauge | Solder | Circular | Male Pin | Tin | Shrouded - 4 Wall | Black | -40 C | 150 °C | Copper Alloy | Header | 3.9 µin | 0.099 µm | Gold | 9.65 mm | 0.38 in | |
 Molex | 5 µm | 196.9 µin | Aerospace Automotive Industrial Medical | Board Guide | 1200 VDC | 0.291 in | 7.4 mm | Latch Lock | Board to Cable/Wire | UL94 V-0 | Polyetherimide (PEI) | Right Angle Through Hole | 1 | All | Varies by Wire Gauge | Solder | Circular | Male Pin | Tin | Shrouded - 4 Wall | Gray | -40 C | 150 °C | Copper Alloy | Header | 3.9 µin | 0.099 µm | Gold | 9.65 mm | 0.38 in | 4 |
 Molex | 5 µm | 196.9 µin | Aerospace Automotive Industrial Medical | Board Guide | 1200 VDC | 0.291 in | 7.4 mm | Latch Lock | Board to Cable/Wire | UL94 V-0 | Polyetherimide (PEI) | Right Angle Through Hole | 1 | All | Varies by Wire Gauge | Solder | Circular | Male Pin | Tin | Shrouded - 4 Wall | Black | -40 C | 150 °C | Copper Alloy | Header | 3.9 µin | 0.099 µm | Gold | 9.65 mm | 0.38 in | 4 |
