71922 Series

Catalog

CONN HEADER R/A 14POS 2.54MM

Part	Contact Material	Contact Length - Post	Contact Length - Post	Mounting Type	Contact Finish - Mating	Termination	Number of Rows	Style	Contact Type	Contact Shape	Insulation Color	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Fastening Type	Insulation Height	Insulation Height	Connector Type	Shrouding	Number of Positions	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Amphenol ICC (FCI) 71922-114	Phosphor Bronze	0.114 in	2.9 mm	Through Hole Right Angle	Gold GXT™	Solder	2	Board to Cable/Wire	Male Pin	Square	Gray	0.1 in	2.54 mm	All	2.54 mm	0.1 in	30 Áin	0.76 Ám	0.228 in	5.8 mm	UL94 V-0	Latch Lock/Eject Hooks	8.61 mm	0.339 "	Header	Shrouded - 4 Wall	14
Amphenol ICC (FCI) 71922-106	Phosphor Bronze	0.114 in	2.9 mm	Through Hole Right Angle	Gold GXT™	Solder	2	Board to Cable/Wire	Male Pin	Square	Gray	0.1 in	2.54 mm	All	2.54 mm	0.1 in	30 Áin	0.76 Ám	0.228 in	5.8 mm	UL94 V-0	Latch Lock/Eject Hooks	8.61 mm	0.339 "	Header	Shrouded - 4 Wall	6
Amphenol ICC (FCI) 71922-034LF	Phosphor Bronze	0.114 in	2.9 mm	Through Hole Right Angle	Gold GXT™	Solder	2	Board to Cable/Wire	Male Pin	Square	Gray	0.1 in	2.54 mm	All	2.54 mm	0.1 in	30 Áin	0.76 Ám	0.228 in	5.8 mm	UL94 V-0	Push-Pull	8.61 mm	0.339 "	Header	Shrouded - 4 Wall	34	Tin	2 çm	78.7 çin
Amphenol ICC (FCI) 71922-244LF	Phosphor Bronze	0.114 in	2.9 mm	Through Hole Right Angle	Gold GXT™	Solder	2	Board to Cable/Wire	Male Pin	Square	Gray	0.1 in	2.54 mm	All	2.54 mm	0.1 in	30 Áin	0.76 Ám	0.228 in	5.8 mm	UL94 V-0	Latch Lock/Eject Hooks Short	8.61 mm	0.339 "	Header	Shrouded - 4 Wall	44	Tin	2 çm	78.7 çin
Amphenol ICC (FCI) 71922-260	Phosphor Bronze	0.114 in	2.9 mm	Through Hole Right Angle	Gold GXT™	Solder	2	Board to Cable/Wire	Male Pin	Square	Gray	0.1 in	2.54 mm	All	2.54 mm	0.1 in	30 Áin	0.76 Ám	0.228 in	5.8 mm	UL94 V-0	Latch Lock/Eject Hooks Short	8.61 mm	0.339 "	Header	Shrouded - 4 Wall	60

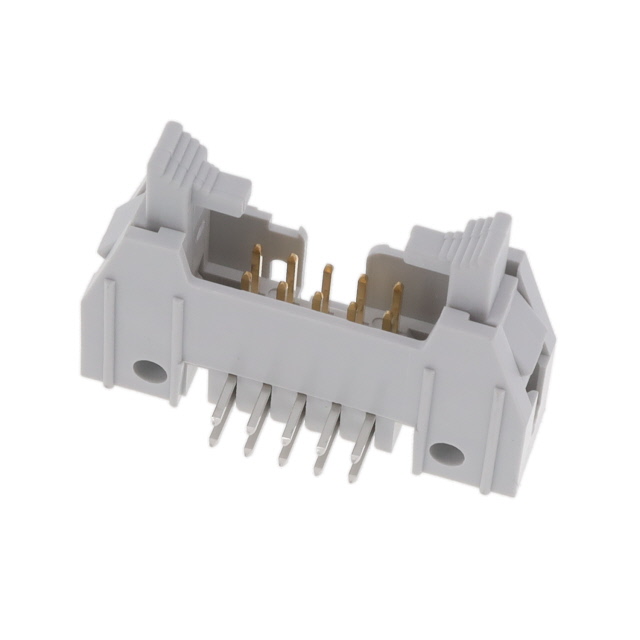

Amphenol ICC (FCI) 71922-210LF	Phosphor Bronze	0.114 in	2.9 mm	Through Hole Right Angle	Gold GXT™	Solder	2	Board to Cable/Wire	Male Pin	Square	Gray	0.1 in	2.54 mm	All	2.54 mm	0.1 in	30 Áin	0.76 Ám	0.228 in	5.8 mm	UL94 V-0	Latch Lock/Eject Hooks Short	8.61 mm	0.339 "	Header	Shrouded - 4 Wall	10	Tin	2 çm	78.7 çin
Amphenol ICC (FCI) 71922-034	Phosphor Bronze	0.114 in	2.9 mm	Through Hole Right Angle	Gold GXT™	Solder	2	Board to Cable/Wire	Male Pin	Square	Gray	0.1 in	2.54 mm	All	2.54 mm	0.1 in	30 Áin	0.76 Ám	0.228 in	5.8 mm	UL94 V-0	Push-Pull	8.61 mm	0.339 "	Header	Shrouded - 4 Wall	34
Amphenol ICC (FCI) 71922-206LF	Phosphor Bronze	0.114 in	2.9 mm	Through Hole Right Angle	Gold GXT™	Solder	2	Board to Cable/Wire	Male Pin	Square	Gray	0.1 in	2.54 mm	All	2.54 mm	0.1 in	30 Áin	0.76 Ám	0.228 in	5.8 mm	UL94 V-0	Latch Lock/Eject Hooks Short	8.61 mm	0.339 "	Header	Shrouded - 4 Wall	6	Tin	2 çm	78.7 çin
Amphenol ICC (FCI) 71922-060	Phosphor Bronze	0.114 in	2.9 mm	Through Hole Right Angle	Gold GXT™	Solder	2	Board to Cable/Wire	Male Pin	Square	Gray	0.1 in	2.54 mm	All	2.54 mm	0.1 in	30 Áin	0.76 Ám	0.228 in	5.8 mm	UL94 V-0	Push-Pull	8.61 mm	0.339 "	Header	Shrouded - 4 Wall	60
Amphenol ICC (FCI) 71922-218LF	Phosphor Bronze	0.114 in	2.9 mm	Through Hole Right Angle	Gold GXT™	Solder	2	Board to Cable/Wire	Male Pin	Square	Gray	0.1 in	2.54 mm	All	2.54 mm	0.1 in	30 Áin	0.76 Ám	0.228 in	5.8 mm	UL94 V-0	Latch Lock/Eject Hooks Short	8.61 mm	0.339 "	Header	Shrouded - 4 Wall	18	Tin	2 çm	78.7 çin
