LDD-1500 Series

Catalog

LED DRIVER CC BUCK 2-46V 1.5A

Part	Mounting Type	Number of Outputs	Current - Output (Max) [Max]	Features	Termination Style	Dimming	Approval Agency	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage - Output [Max]	Voltage - Output [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Efficiency	Ratings	Topology	Voltage - Input (Max) [Max]	Package / Case	Size / Dimension [y]	Size / Dimension [z]

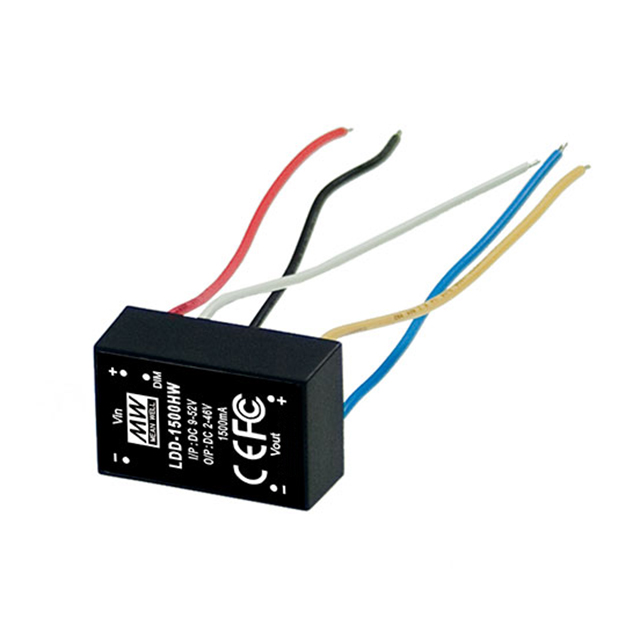

MEAN WELL USA Inc. LDD-1500HW	Chassis Mount	1	1.5 A	OTP Remote On/Off SCP	Wire Leads	PWM	CE	9 V	85 °C	-40 C	Constant Current	46 V	2 V	0.8 "	1.25 in	12.2 mm	0.48 "	31.8 mm	20.3 mm	97 %	IP67	Buck	52 V

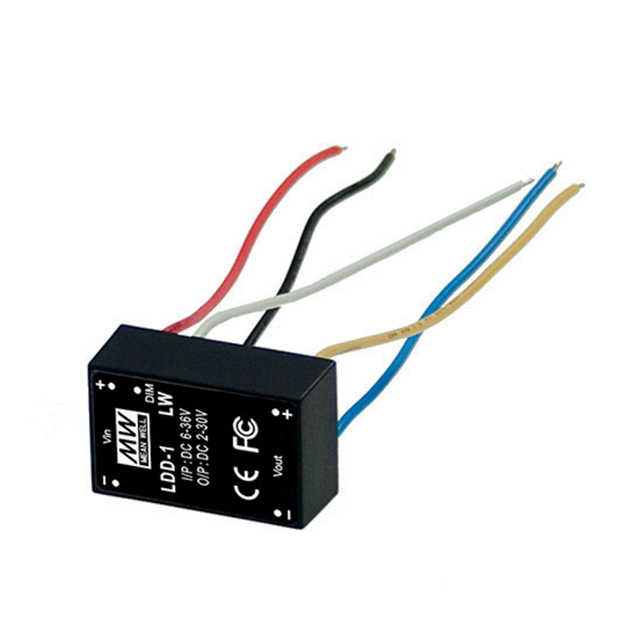

MEAN WELL USA Inc. LDD-1500LW	Chassis Mount	1	1.5 A	OTP Remote On/Off SCP	Wire Leads	PWM	CE	6 V	85 °C	-40 C	Constant Current	30 VDC	2 V	0.8 "	1.25 in	12.2 mm	0.48 "	31.8 mm	20.3 mm	95 %	IP67	Buck	36 V

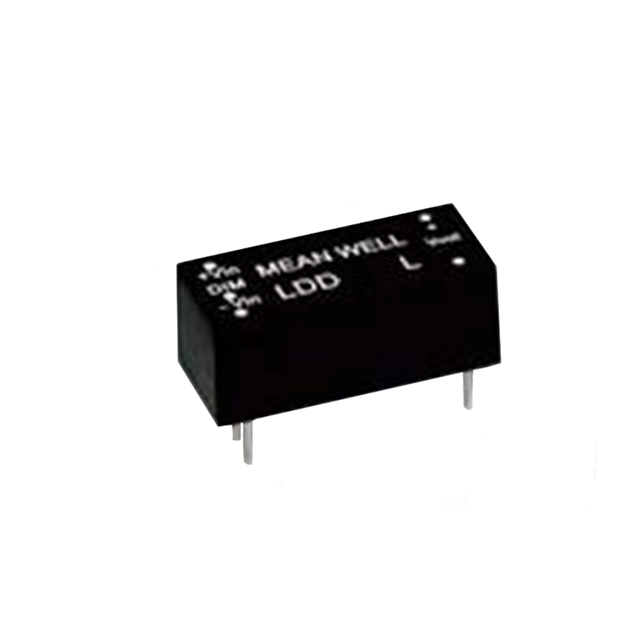

MEAN WELL USA Inc. LDD-1500L	Through Hole	1	1.5 A	Remote On/Off SCP		Analog PWM	CE	6 V	71 °C	-40 C	Constant Current	30 VDC	2 V	0.8 "	1.25 in	12.2 mm	0.48 "	31.8 mm	20.3 mm	95 %		Buck	36 V	24-DIP Module 9 Leads
MEAN WELL USA Inc. LDD-1500LS	Surface Mount	1	1.5 A	Remote On/Off SCP		Analog PWM	CE	6 V	71 °C	-40 C	Constant Current	30 VDC	2 V	0.8 "	1.25 in		0.45 in	31.8 mm		95 %		Buck	36 V	24-SMD Module 18 Leads	20.3 mm	11.4 mm
