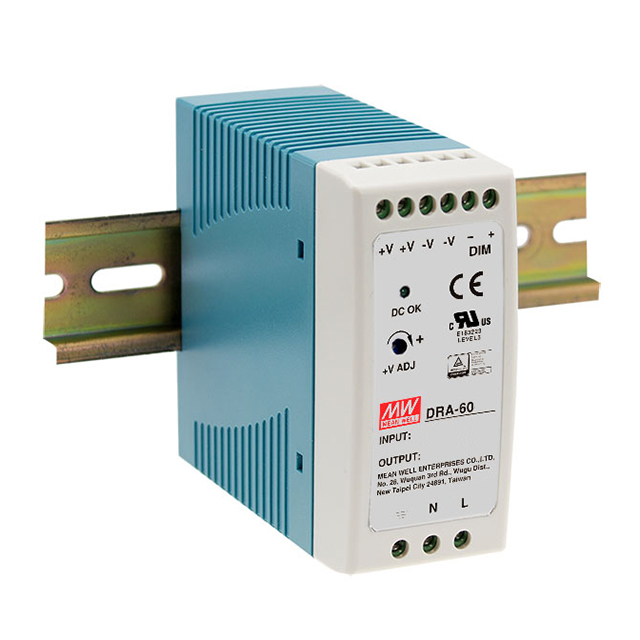

DRA-60 Series

Catalog

AC/DC DIN RAIL SUPPLY 24V 60W

Part	Minimum Load Required	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Approval Agency	Applications	Input Type	Efficiency	Power (Watts)	Number of Outputs	DC Voltage - Input (Max) [Max]	DC Voltage - Input (Min) [Min]	Features
MEAN WELL USA Inc. DRA-60-24		90 VAC	264 VAC	3000 V	-30 °C	70 °C	2.5 A	24 V	40 mm	90 mm	3.54 "	3.94 in	100 mm	1.57 "	CB CE cURus TUV	ITE (Commercial)	AC or DC	87 %	60 W	1	370 V	127 V	Adjustable Output Universal Input
