80117 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

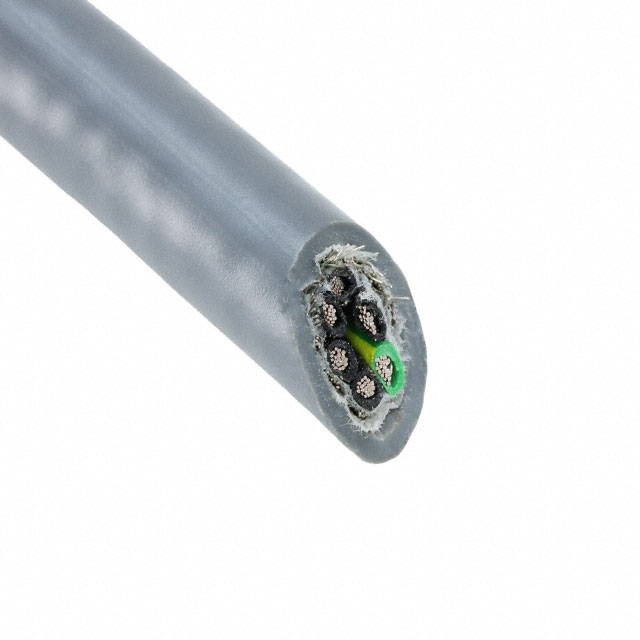

MULTICONDUCTOR CABLE, ECOFLEX® PUR, SHIELDED, 6 CONDUCTOR, 22 AWG, 0.382 MM², 100 FT, 30.5 M
| Part | Cable Type | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Jacket (Insulation) Material | Conductor Insulation | Shield Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Length [x] | Length [x] | Shield Type | Conductor Strand [custom] | Conductor Strand | Conductor Material | Number of Conductors | Shield Coverage | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Multi-Conductor | 90 °C | -50 °C | Slate | Polyurethane (PU) | Polyphenylene Ether (PPE) | Copper Tinned | 0.253 in | 6.43 mm | 600 V | 30.5 m | 100 ft | Braid | 19 Strands | 34 AWG | Copper Tinned | 6 | 85 % | 22 AWG | 0.0319 in | 0.81 mm |
