317-038 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 38POS 0.156

Part	Material - Insulation	Number of Positions	Color	Gender	Mounting Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Material	Read Out	Number of Positions/Bay/Row	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Pitch	Pitch	Card Type	Contact Finish	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row [custom]	Features	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 317-038-540-801	Diallyl Phthalate (DAP)	38	Green	Female	Through Hole	Cantilever	-65 ░C	125 °C	Wire Wrap	Copper Alloy	Dual	19	0.25 Ám	10 Áin	2	3.96 mm	0.156 in	Non Specified - Dual Edge	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 317-038-541-678	Diallyl Phthalate (DAP)	76	Green	Female	Through Hole	Cantilever	-65 ░C	125 °C	Wire Wrap	Copper Alloy	Single		0.25 Ám	10 Áin	2	3.96 mm	0.156 in	Non Specified - Dual Edge	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	38	Card Guides	4-40 Threaded Insert Top Mount Opening

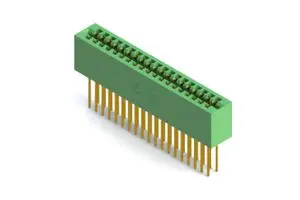

EDAC Inc. 317-038-542-801	Diallyl Phthalate (DAP)	38	Green	Female	Through Hole	Cantilever	-65 ░C	125 °C	Wire Wrap	Copper Alloy	Dual	19	0.25 Ám	10 Áin	2	3.96 mm	0.156 in	Non Specified - Dual Edge	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 317-038-541-601	Diallyl Phthalate (DAP)	76	Green	Female	Through Hole	Cantilever	-65 ░C	125 °C	Wire Wrap	Copper Alloy	Single		0.25 Ám	10 Áin	2	3.96 mm	0.156 in	Non Specified - Dual Edge	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	38
EDAC Inc. 317-038-542-808	Diallyl Phthalate (DAP)	38	Green	Female	Through Hole	Cantilever	-65 ░C	125 °C	Wire Wrap	Copper Alloy	Dual	19	0.25 Ám	10 Áin	2	3.96 mm	0.156 in	Non Specified - Dual Edge	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm			4-40 Threaded Insert Top Mount Opening

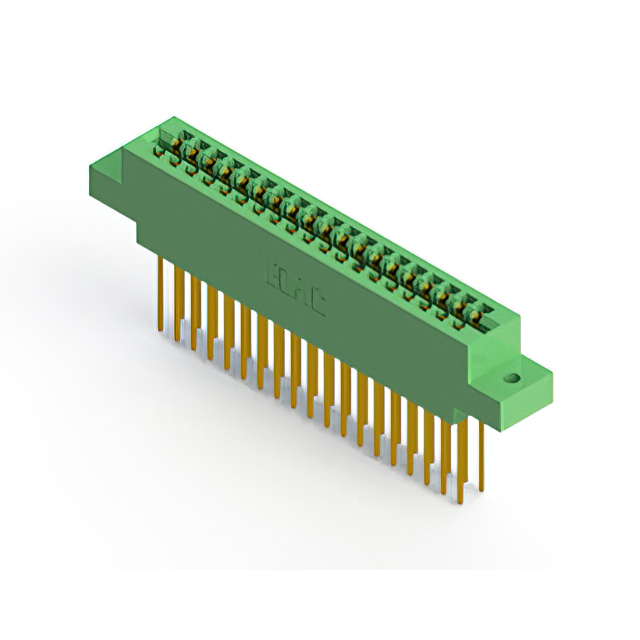

EDAC Inc. 317-038-542-802	Diallyl Phthalate (DAP)	38	Green	Female	Through Hole	Cantilever	-65 ░C	125 °C	Wire Wrap	Copper Alloy	Dual	19	0.25 Ám	10 Áin	2	3.96 mm	0.156 in	Non Specified - Dual Edge	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 317-038-541-607	Diallyl Phthalate (DAP)	76	Green	Female	Through Hole	Cantilever	-65 ░C	125 °C	Wire Wrap	Copper Alloy	Single		0.25 Ám	10 Áin	2	3.96 mm	0.156 in	Non Specified - Dual Edge	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	38		M3 Threaded Insert Top Mount Opening

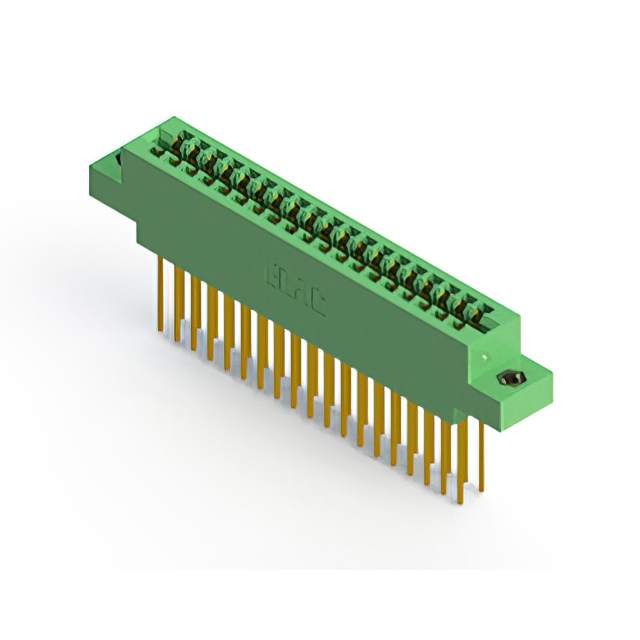

EDAC Inc. 317-038-540-878	Diallyl Phthalate (DAP)	38	Green	Female	Through Hole	Cantilever	-65 ░C	125 °C	Wire Wrap	Copper Alloy	Dual	19	0.25 Ám	10 Áin	2	3.96 mm	0.156 in	Non Specified - Dual Edge	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm		Card Guides	4-40 Threaded Insert Top Mount Opening

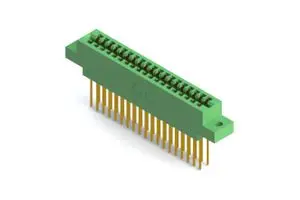

EDAC Inc. 317-038-540-804	Diallyl Phthalate (DAP)	38	Green	Female	Through Hole	Cantilever	-65 ░C	125 °C	Wire Wrap	Copper Alloy	Dual	19	0.25 Ám	10 Áin	2	3.96 mm	0.156 in	Non Specified - Dual Edge	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm				0.156 "	3.96 mm
EDAC Inc. 317-038-541-602	Diallyl Phthalate (DAP)	76	Green	Female	Through Hole	Cantilever	-65 ░C	125 °C	Wire Wrap	Copper Alloy	Single		0.25 Ám	10 Áin	2	3.96 mm	0.156 in	Non Specified - Dual Edge	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	38
