CH1NGS Series
Manufacturer: CIT Relay and Switch
Beta
⌘K

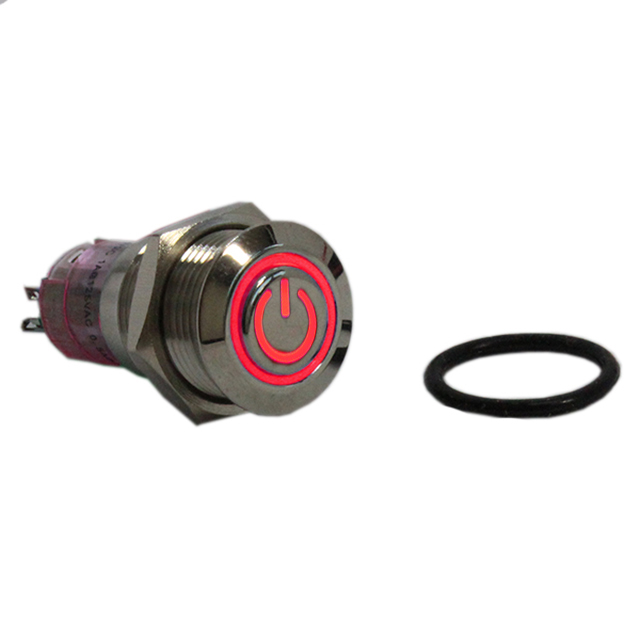

SWITCH PB SPDT 1A 125V
| Part | Electrical Life | Illumination Type, Color | Ingress Protection | Termination Style | Voltage Rating - DC | Mounting Type | Type | Panel Cutout Dimensions [diameter] | Actuator Marking | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Type | Switch Function | Circuit | Voltage Rating - AC | Current Rating (Amps) | Color - Actuator/Cap | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 30000 Cycles | Green/Red LED | IP67 - Dust Tight Waterproof | Solder Lug | 24 V | Panel Mount Front | Anti-Vandal Illuminated | 16 mm | No Marking | -25 °C | 70 °C | Button Flush Round | On-Mom | SPDT | 125 V | 1 A | Silver | Stainless Steel |
