G6K Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

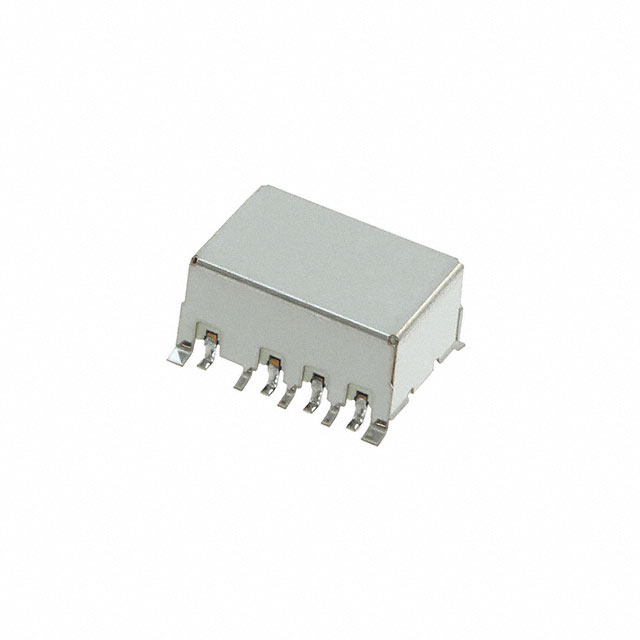

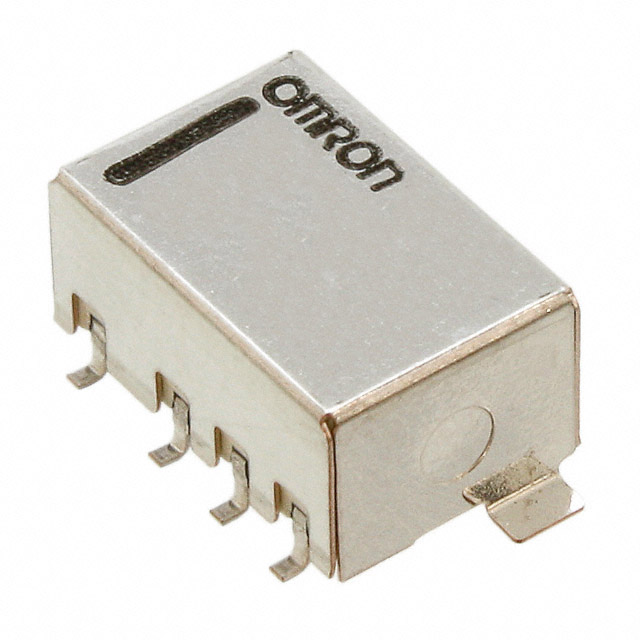

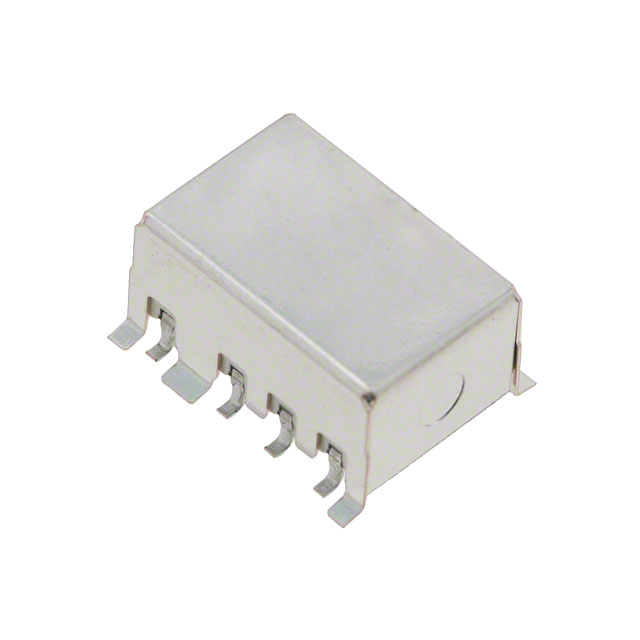

RELAY RF DPDT 1A 5V
| Part | Mounting Type | Must Operate Voltage | Coil Current | Release Time | Coil Voltage | Contact Rating (Current) | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Contact Material | Must Release Voltage | Coil Power | Operate Time | Contact Form | Switching Voltage [Max] | Coil Type | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Surface Mount | 4 VDC | 21.1 mA | 3 ms | 5 VDC | 1 A | -40 °C | 70 °C | Gull Wing | Gold (Au) Silver (Ag) | 0.5 VDC | 100 mW | 3 ms | DPDT (2 Form C) | 60 VDC 125 VAC | Non Latching | 237 Ohms |
 Omron Electronics Inc-EMC Div | Surface Mount | 3.75 VDC | 21.1 mA | 3 ms | 5 VDC | 1 A | -40 °C | 70 °C | Gull Wing | Gold (Au) Silver (Ag) | 100 mW | 3 ms | DPDT (2 Form C) | 60 VDC 125 VAC | Latching Single Coil | 237 Ohms | |
 Omron Electronics Inc-EMC Div | Surface Mount | 3.6 VDC | 23.2 mA | 3 ms | 4.5 VDC | 1 A | -40 °C | 70 °C | Gull Wing | Gold (Au) Silver (Ag) | 0.45 VDC | 100 mW | 3 ms | DPDT (2 Form C) | 60 VDC 125 VAC | Non Latching | 194 Ohms |
Omron Electronics Inc-EMC Div | Surface Mount | 3.75 VDC | 21.1 mA | 3 ms | 5 VDC | 1 A | -40 °C | 70 °C | Gull Wing | Gold (Au) Silver (Ag) | 100 mW | 3 ms | DPDT (2 Form C) | 60 VDC 125 VAC | Latching Single Coil | 237 Ohms | |
Omron Electronics Inc-EMC Div | Surface Mount | 9.6 VDC | 9.1 mA | 3 ms | 12 VDC | 1 A | -40 °C | 70 °C | Gull Wing | Gold (Au) Silver (Ag) | 1.2 VDC | 100 mW | 3 ms | DPDT (2 Form C) | 60 VDC 125 VAC | Non Latching | 1.31 kOhms |
Omron Electronics Inc-EMC Div | Surface Mount | 19.2 VDC | 4.6 mA | 3 ms | 24 VDC | 1 A | -40 °C | 70 °C | Gull Wing | Gold (Au) Silver (Ag) | 2.4 VDC | 100 mW | 3 ms | DPDT (2 Form C) | 60 VDC 125 VAC | Non Latching | 5.22 kOhms |
Omron Electronics Inc-EMC Div | Surface Mount | 4 VDC | 21.1 mA | 3 ms | 5 VDC | 1 A | -40 °C | 70 °C | Gull Wing | Gold (Au) Silver (Ag) | 0.5 VDC | 100 mW | 3 ms | DPDT (2 Form C) | 60 VDC 125 VAC | Non Latching | 237 Ohms |
 Omron Electronics Inc-EMC Div | Surface Mount | 9.6 VDC | 9.1 mA | 3 ms | 12 VDC | 1 A | -40 °C | 70 °C | Gull Wing | Gold (Au) Silver (Ag) | 1.2 VDC | 100 mW | 3 ms | DPDT (2 Form C) | 60 VDC 125 VAC | Non Latching | 1.31 kOhms |
Omron Electronics Inc-EMC Div | Surface Mount | 2.4 VDC | 33 mA | 3 ms | 1 A | -40 °C | 70 °C | Gull Wing | Gold (Au) Silver (Ag) | 0.3 VDC | 100 mW | 3 ms | DPDT (2 Form C) | 60 VDC 125 VAC | Non Latching | 91 Ohms | |
Omron Electronics Inc-EMC Div | Surface Mount | 9.6 VDC | 9.1 mA | 3 ms | 12 VDC | 1 A | -40 °C | 70 °C | Gull Wing | Gold (Au) Silver (Ag) | 1.2 VDC | 100 mW | 3 ms | DPDT (2 Form C) | 60 VDC 125 VAC | Non Latching | 1.31 kOhms |
