71V016 Series

3.3V 64K x 16 Bit Asynchronous Static RAM

Manufacturer: Renesas Electronics Corporation

Catalog

3.3V 64K x 16 Bit Asynchronous Static RAM

Part	Memory Format	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Memory Interface	Memory Type	Package / Case	Package / Case	Package / Case	Access Time	Voltage - Supply [Max]	Voltage - Supply [Min]	Technology	Memory Size	Memory Organization [custom]	Memory Organization [custom]	Write Cycle Time - Word, Page	Package / Case	Supplier Device Package
Renesas Electronics Corporation 71V016SA10YG8	SRAM	Surface Mount	70 °C	0 °C	Parallel	Volatile	10.16 mm	44-BSOJ	10.16 mm	10 ns	3.6 V	3.15 V	SRAM - Asynchronous	1 Mbit	64 K	16 bits	10 ns
Renesas Electronics Corporation 71V016SA10PHG8	SRAM	Surface Mount	70 °C	0 °C	Parallel	Volatile	10.16 mm	44-TSOP		10 ns	3.6 V	3.15 V	SRAM - Asynchronous	1 Mbit	64 K	16 bits	10 ns	10.16 mm	44-TSOP II
Renesas Electronics Corporation 71V016SA12YG	SRAM	Surface Mount	70 °C	0 °C	Parallel	Volatile	10.16 mm	44-BSOJ	10.16 mm	12 ns	3.6 V	3 V	SRAM - Asynchronous	1 Mbit	64 K	16 bits	12 ns
Renesas Electronics Corporation 71V016SA15YG8	SRAM	Surface Mount	70 °C	0 °C	Parallel	Volatile	10.16 mm	44-BSOJ	10.16 mm	15 ns	3.6 V	3 V	SRAM - Asynchronous	1 Mbit	64 K	16 bits	15 ns

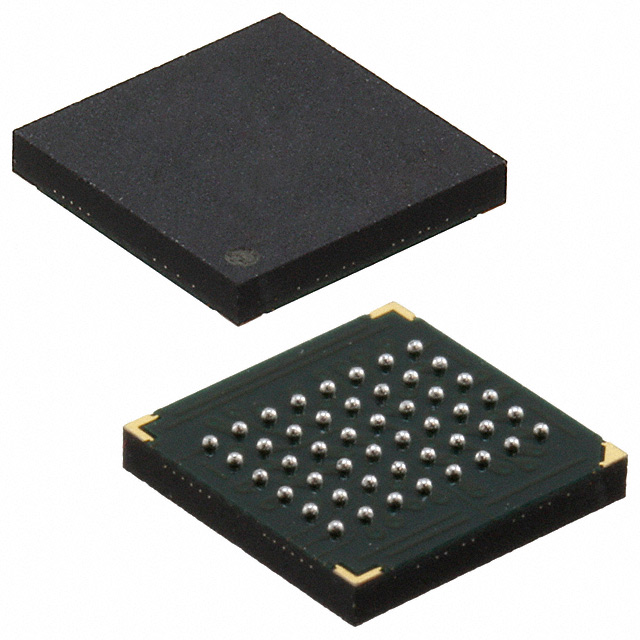

Renesas Electronics Corporation 71V016SA20BFG8	SRAM	Surface Mount	70 °C	0 °C	Parallel	Volatile		48-LFBGA		20 ns	3.6 V	3 V	SRAM - Asynchronous	1 Mbit	64 K	16 bits	20 ns		48-CABGA (7x7)
Renesas Electronics Corporation 71V016SA12BF	SRAM	Surface Mount	70 °C	0 °C	Parallel	Volatile		48-LFBGA		12 ns	3.6 V	3 V	SRAM - Asynchronous	1 Mbit	64 K	16 bits	12 ns		48-CABGA (7x7)
Renesas Electronics Corporation 71V016SA20YG	SRAM	Surface Mount	70 °C	0 °C	Parallel	Volatile	10.16 mm	44-BSOJ	10.16 mm	20 ns	3.6 V	3 V	SRAM - Asynchronous	1 Mbit	64 K	16 bits	20 ns
Renesas Electronics Corporation 71V016SA15BFGI8	SRAM	Surface Mount	85 °C	-40 °C	Parallel	Volatile		48-LFBGA		15 ns	3.6 V	3 V	SRAM - Asynchronous	1 Mbit	64 K	16 bits	15 ns		48-CABGA (7x7)
Renesas Electronics Corporation 71V016SA12BF8	SRAM	Surface Mount	70 °C	0 °C	Parallel	Volatile		48-LFBGA		12 ns	3.6 V	3 V	SRAM - Asynchronous	1 Mbit	64 K	16 bits	12 ns		48-CABGA (7x7)
Renesas Electronics Corporation 71V016SA15PHGI	SRAM	Surface Mount	85 °C	-40 °C	Parallel	Volatile	10.16 mm	44-TSOP		15 ns	3.6 V	3 V	SRAM - Asynchronous	1 Mbit	64 K	16 bits	15 ns	10.16 mm	44-TSOP II

Catalog

3.3V 64K x 16 Bit Asynchronous Static RAM

Description

The 71V016 3.3V CMOS SRAM is organized as 64K x 16. All bidirectional inputs and outputs of the 71V016 are LVTTL-compatible and operation is from a single 3.3V supply. Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation.
