68016 Series

Catalog

CONN HEADER R/A 26POS 2.54MM

Part	Contact Type	Contact Finish - Mating	Mounting Type	Connector Type	Current Rating (Amps)	Contact Shape	Insulation Height [z]	Insulation Height [z]	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post [x]	Contact Length - Post [x]	Fastening Type	Insulation Color	Shrouding	Material Flammability Rating	Contact Length - Mating [x]	Contact Length - Mating	Number of Rows	Contact Material	Contact Finish - Post
Amphenol ICC (FCI) 68016-126HLF	Male Pin	Gold or Gold GXT™	Through Hole Right Angle	Header	3 A	Square	0.095 in	2.41 mm	0.1 in	2.54 mm	All	30 Áin	0.76 Ám	Solder	26	-65 ░C	130 °C	0.12 in	3.05 mm	Push-Pull	Black	Unshrouded	UL94 V-0	0.23 in	5.84 mm	1	Phosphor Bronze

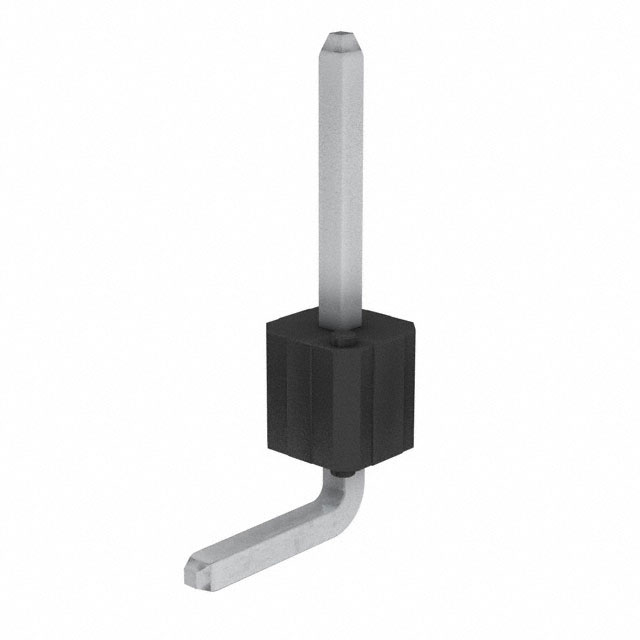

Amphenol ICC (FCI) 68016-401HLF	Male Pin		Through Hole Right Angle	Header	3 A	Square	0.095 in	2.41 mm			All	100 çin	2.54 çm	Solder	1	-65 ░C	130 °C	0.12 in	3.05 mm	Push-Pull	Black	Unshrouded	UL94 V-0	0.23 in	5.84 mm	1	Phosphor Bronze
Amphenol ICC (FCI) 68016-608	Male Pin	Gold or Gold GXT™	Through Hole Right Angle	Header	3 A	Square	0.095 in	2.41 mm	0.1 in	2.54 mm	All	30 Áin	0.76 Ám	Solder	8	-65 ░C	130 °C	0.12 in	3.05 mm	Push-Pull	Black	Unshrouded	UL94 V-0	0.23 in	5.84 mm	1	Phosphor Bronze
Amphenol ICC (FCI) 68016-133HLF	Male Pin	Gold or Gold GXT™	Through Hole Right Angle	Header	3 A	Square	0.095 in	2.41 mm	0.1 in	2.54 mm	All	30 Áin	0.76 Ám	Solder	33	-65 ░C	130 °C	0.12 in	3.05 mm	Push-Pull	Black	Unshrouded	UL94 V-0	0.23 in	5.84 mm	1	Phosphor Bronze
Amphenol ICC (FCI) 68016-231HLF	Male Pin	Gold or Gold GXT™	Through Hole Right Angle	Header	3 A	Square	0.095 in	2.41 mm	0.1 in	2.54 mm	All	15 µin	0.38 µm	Solder	31	-65 ░C	130 °C	0.12 in	3.05 mm	Push-Pull	Black	Unshrouded	UL94 V-0	0.23 in	5.84 mm	1	Phosphor Bronze
Amphenol ICC (FCI) 68016-204HLF	Male Pin	Gold or Gold GXT™	Through Hole Right Angle	Header	3 A	Square	0.095 in	2.41 mm	0.1 in	2.54 mm	All	15 µin	0.38 µm	Solder	4	-65 ░C	130 °C	0.12 in	3.05 mm	Push-Pull	Black	Unshrouded	UL94 V-0	0.23 in	5.84 mm	1	Phosphor Bronze
Amphenol ICC (FCI) 68016-229HLF	Male Pin	Gold or Gold GXT™	Through Hole Right Angle	Header	3 A	Square	0.095 in	2.41 mm	0.1 in	2.54 mm	All	15 µin	0.38 µm	Solder	29	-65 ░C	130 °C	0.12 in	3.05 mm	Push-Pull	Black	Unshrouded	UL94 V-0	0.23 in	5.84 mm	1	Phosphor Bronze

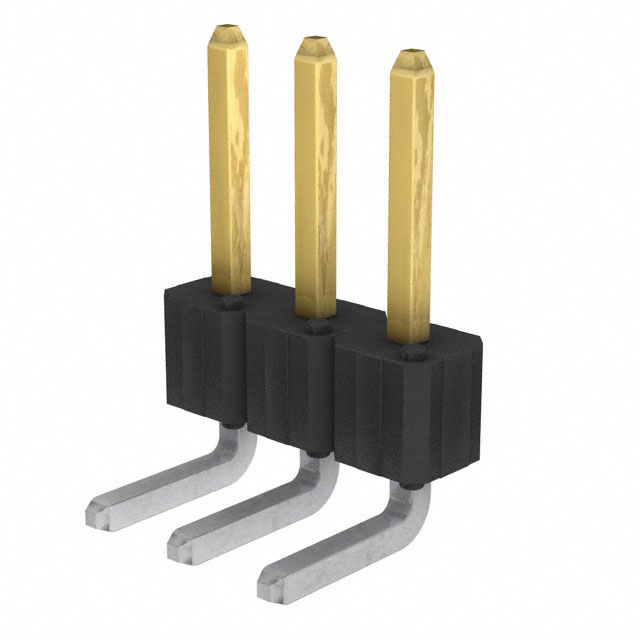

Amphenol ICC (FCI) 68016-103HLF	Male Pin	Gold or Gold GXT™	Through Hole Right Angle	Header	3 A	Square	0.095 in	2.41 mm	0.1 in	2.54 mm	All	30 Áin	0.76 Ám	Solder		-65 ░C	130 °C	0.12 in	3.05 mm	Push-Pull	Black	Unshrouded	UL94 V-0	0.23 in	5.84 mm	1	Phosphor Bronze

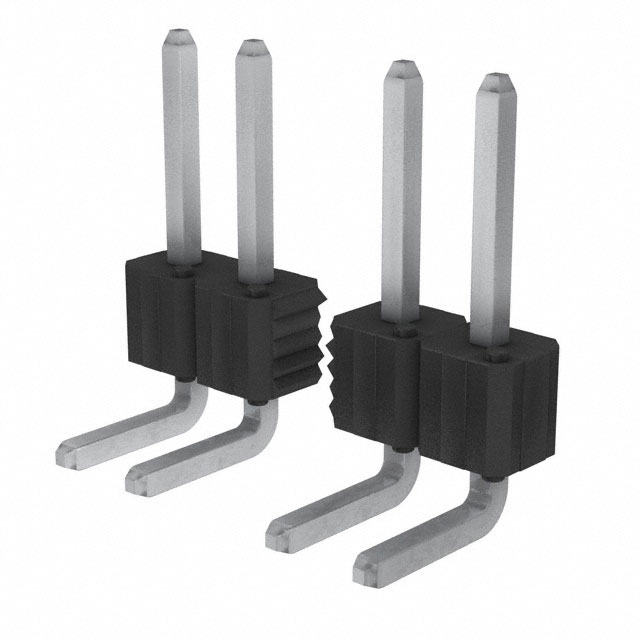

Amphenol ICC (FCI) 68016-405HLF	Male Pin		Through Hole Right Angle	Header	3 A	Square	0.095 in	2.41 mm	0.1 in	2.54 mm	All	100 çin	2.54 çm	Solder		-65 ░C	130 °C	0.12 in	3.05 mm	Push-Pull	Black	Unshrouded	UL94 V-0	0.23 in	5.84 mm	1	Phosphor Bronze	Tin
Amphenol ICC (FCI) 68016-110	Male Pin	Gold or Gold GXT™	Through Hole Right Angle	Header		Square	0.095 in	2.41 mm	0.1 in	2.54 mm	All	30 Áin	0.76 Ám	Solder	10			0.12 in	3.05 mm	Push-Pull	Black	Unshrouded	UL94 V-0	0.23 in	5.84 mm	1	Phosphor Bronze
