45451 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

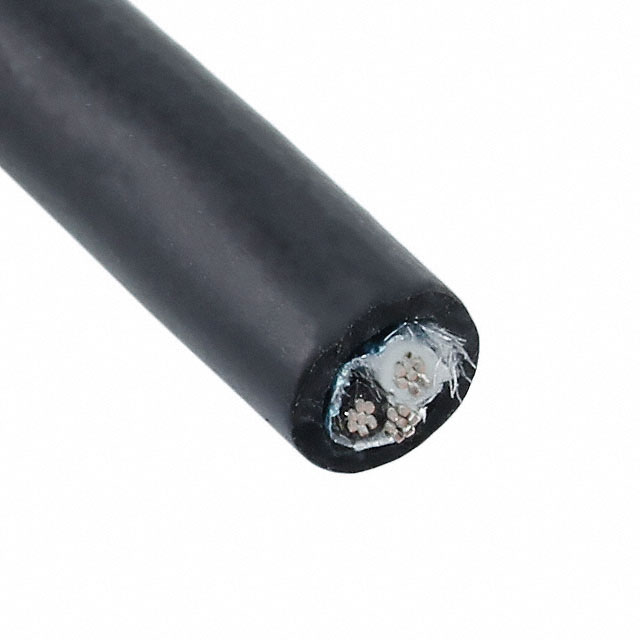

CABLE 2COND 20AWG SHLD 1000'
| Part | Shield Coverage | Shield Material | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Features | Number of Conductors | Conductor Material | Ratings | Jacket (Insulation) Material | Voltage | Conductor Insulation | Conductor Insulation | Length | Length | Cable Type | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Spool Size [x] | Spool Size [x] | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | Foil | 0.238 " | 6.05 mm | Slate | Biological Compatibility Drain Wire Rip Cord | 2 | Copper Tinned | ISO 10993 | Thermoplastic Elastomer (TPE) | 300 VDC | TPE | Thermoplastic Elastomer | 304.8 m | 1000 ft | Multi-Conductor | 20 AWG | 1.143 mm | 0.045 in | 28 AWG | 7 | 125 °C | -50 °C | |||
 ALPHA WIRE | 100 % | Aluminum | Foil | 0.238 " | 6.05 mm | Black | Biological Compatibility Drain Wire Rip Cord | 2 | Copper Tinned | ISO 10993 | Thermoplastic Elastomer (TPE) | 300 VDC | TPE | Thermoplastic Elastomer | Multi-Conductor | 20 AWG | 1.143 mm | 0.045 in | 28 AWG | 7 | 125 °C | -50 °C | 304.8 m | 1000 ft | Enter Number of Feet in Order Quantity |
