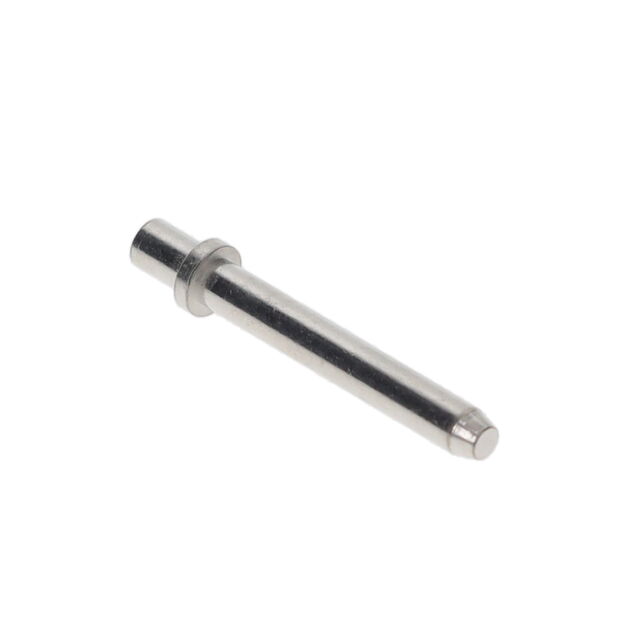

4357-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC
| Part | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Hole Diameter | Mounting Hole Diameter | Pin Size - Below Flange | Pin Size - Below Flange | Length - Below Flange [x] | Length - Below Flange [x] | Length - Overall [x] | Length - Overall [x] | Termination | Insulation | Contact Finish | Terminal Type | Terminal Style | Contact Material | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Length - Above Flange [x] | Length - Above Flange [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 1.52 mm | 0.06 in | 0.094 " | 2.39 mm | 0.064 " | 1.63 mm | 1.58 mm | 0.062 in | 2.13 mm | 0.084 " | 13.94 mm | 0.549 in | Solder | Non-Insulated | Tin | PC Pin | Single End | Brass Alloy | Through Hole | 200 Áin | 5.08 Ám | 11.18 mm | 0.44 in |
