78362 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

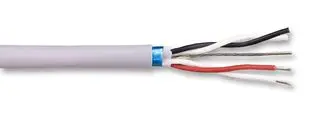

MULTIPAIR CABLE, ECOGEN™ ECOCABLE® MINI, SHIELDED, 2 PAIR, 26 AWG, 0.154 MM², 100 FT, 30.5 M
| Part | Shield Coverage | Shield Material | Wire Gauge | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Length [x] | Length [x] | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Voltage | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Features | Jacket (Insulation) Material | Conductor Insulation | Ratings | Cable Type | Number of Conductors | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Copper Tinned Suprashield® | 26 AWG | 0.381 mm | 0.015 in | 100 ft | 30.5 m | 19 | 38 | Braid Foil | 300 VDC | Copper Tinned | 80 °C | -40 C | Slate | Biological Compatibility Drain Wire Rip Cord | Polyphenylene Ether Modified (mPPE) | Polyphenylene Ether Modified (mPPE) | ISO 10993 UL Style 21460 | Multi-Pair | 4 | ||
 ALPHA WIRE | 100 % | Copper Tinned Suprashield® | 26 AWG | 0.381 mm | 0.015 in | 19 | 38 | Braid Foil | 300 VDC | Copper Tinned | 80 °C | -40 C | Slate | Biological Compatibility Drain Wire Rip Cord | Polyphenylene Ether Modified (mPPE) | Polyphenylene Ether Modified (mPPE) | ISO 10993 UL Style 21460 | Multi-Pair | 4 | 304.8 m | 1000 ft |
