770872 Series

Catalog

CONN HEADER VERT 2POS 4.14MM

Part	Applications	Contact Finish Thickness - Post	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Voltage Rating	Features	Shrouding	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Insulation Color	Insulation Height	Insulation Height	Mounting Type	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Fastening Type	Style	Contact Finish - Post	Contact Material	Termination	Contact Shape	Number of Positions	Number of Rows	Contact Length - Post	Contact Length - Post	Insulation Material

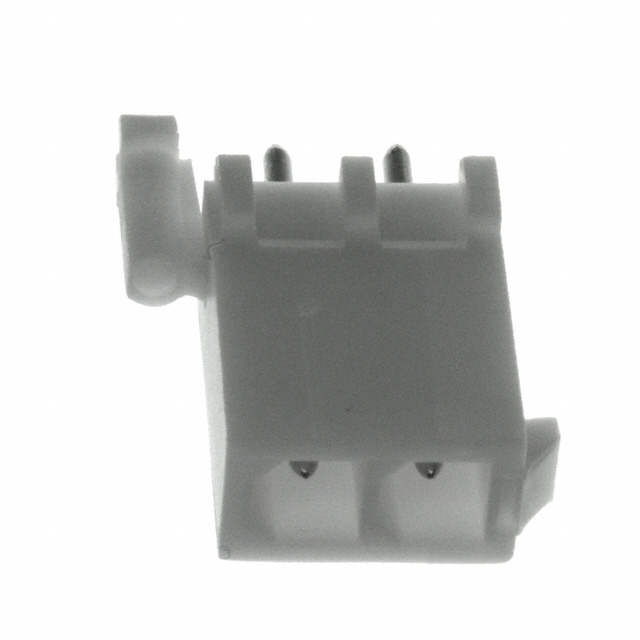

TE Connectivity AMP Connectors 770872-1	General Purpose	3.81 Ám	Varies by Wire Gauge	0.163 in	4.14 mm	Tin-Lead	600 VAC	Board Lock	Shrouded - 4 Wall	Male Pin	150 Áin	3.81 Ám	All	White	13.5 mm	0.531 in	Through Hole	Header	85 °C	-20 ░C	UL94 V-0	Locking Ramp	Board to Cable/Wire	Tin-Lead	Brass	Solder	Circular	2	1	4.45 mm	0.175 in	Nylon Polyamide (PA)
TE Connectivity AMP Connectors 770872-2	General Purpose	3.81 Ám	Varies by Wire Gauge	0.163 in	4.14 mm	Gold	600 VAC	Board Lock	Shrouded - 4 Wall	Male Pin	30 Áin	0.76 Ám	All	White	13.5 mm	0.531 in	Through Hole	Header	105 ░C	-20 ░C	UL94 V-0	Locking Ramp	Board to Cable/Wire	Tin-Lead	Brass	Solder	Circular	2	1	4.45 mm	0.175 in	Nylon Polyamide (PA)
