TS5A26542 Series

0.75-Ω on-state resistance, 5-V, 2:1 (SPDT), 2-channel analog switch with input logic translation

Catalog

0.75-Ω on-state resistance, 5-V, 2:1 (SPDT), 2-channel analog switch with input logic translation

Part	Multiplexer/Demultiplexer Circuit	Switch Circuit	Package / Case	Crosstalk	Channel-to-Channel Matching (ΔRon)	On-State Resistance (Max) [Max]	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Charge Injection	Supplier Device Package	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	-3db Bandwidth	Mounting Type	Current - Leakage (IS(off)) (Max)	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Number of Circuits

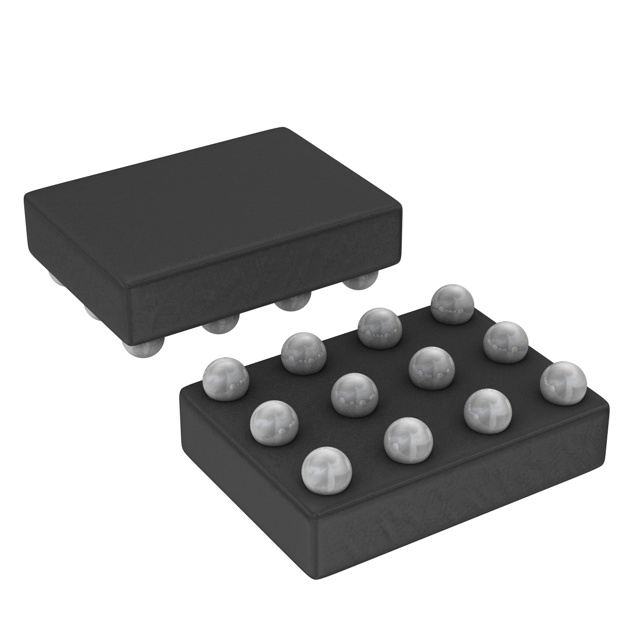

Texas Instruments TS5A26542YZTR	2:1	SPDT	12-UFBGA DSBGA	-63 dB	50 mOhm	750 mOhm	2.25 V	5.5 V	85 °C	-40 °C	15 pC	12-DSBGA (1.9x1.4)	20 ns	25 ns	43 MHz	Surface Mount	20 nA	37 pF	37 pF	2

Catalog

0.75-Ω on-state resistance, 5-V, 2:1 (SPDT), 2-channel analog switch with input logic translation

Key Features

• Specified Break-Before-Make SwitchingLow ON-State Resistance (0.75Max)Control Inputs Reference to VIOLow Charge InjectionExcellent ON-State Resistance MatchingLow Total Harmonic Distortion (THD)2.25-V to 5.5-V Power Supply (V+)1.65-V to 1.95-V Logic Supply (VIO)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class IIESD Performance Tested Per JESD 222000-V Human-Body Model(A114-B, Class II)1000-V Charged-Device Model (C101)300-V Machine Model (A115-A)COM Inputs8000-V Human-Body Model(A114-B, Class II)±15-kV Contact Discharge (IEC 61000-4-2)APPLICATIONSCell PhonesPDAsPortable InstrumentationNanoFree Is a trademark of Texas InstrumentsSpecified Break-Before-Make SwitchingLow ON-State Resistance (0.75Max)Control Inputs Reference to VIOLow Charge InjectionExcellent ON-State Resistance MatchingLow Total Harmonic Distortion (THD)2.25-V to 5.5-V Power Supply (V+)1.65-V to 1.95-V Logic Supply (VIO)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class IIESD Performance Tested Per JESD 222000-V Human-Body Model(A114-B, Class II)1000-V Charged-Device Model (C101)300-V Machine Model (A115-A)COM Inputs8000-V Human-Body Model(A114-B, Class II)±15-kV Contact Discharge (IEC 61000-4-2)APPLICATIONSCell PhonesPDAsPortable InstrumentationNanoFree Is a trademark of Texas Instruments

Description

The TS5A26542 is a dual single-pole double-throw (SPDT) analog switch that is designed to operate from 2.25 V to 5.5 V. The device offers a low ON-state resistance with an excellent channel-to-channel ON-state resistance matching, and the break-before-make feature to prevent signal distortion during the transferring of a signal from one path to the another. The device has excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications. The TS5A26542 has a separate logic supply pin (VIO) that operates from 1.65 V to 1.95 V. VIOpowers the control circuitry, which allows the TS5A26542 to be controlled by 1.8-V signals. The TS5A26542 is a dual single-pole double-throw (SPDT) analog switch that is designed to operate from 2.25 V to 5.5 V. The device offers a low ON-state resistance with an excellent channel-to-channel ON-state resistance matching, and the break-before-make feature to prevent signal distortion during the transferring of a signal from one path to the another. The device has excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications. The TS5A26542 has a separate logic supply pin (VIO) that operates from 1.65 V to 1.95 V. VIOpowers the control circuitry, which allows the TS5A26542 to be controlled by 1.8-V signals.
