C3CES-2 Series

Catalog

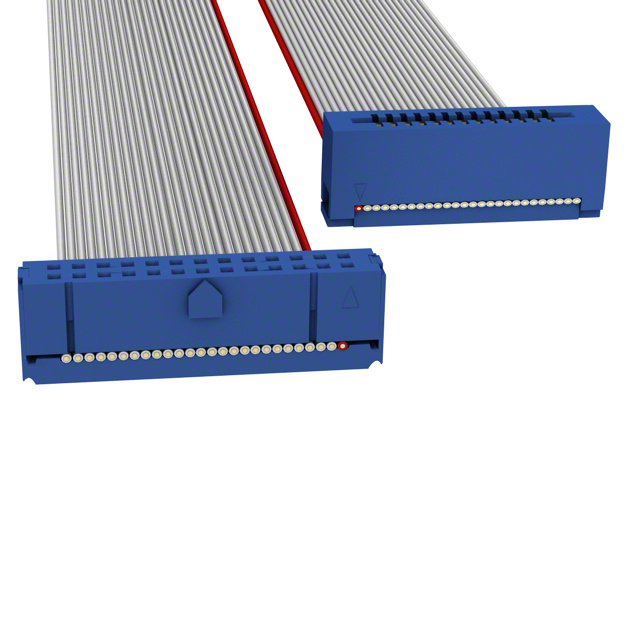

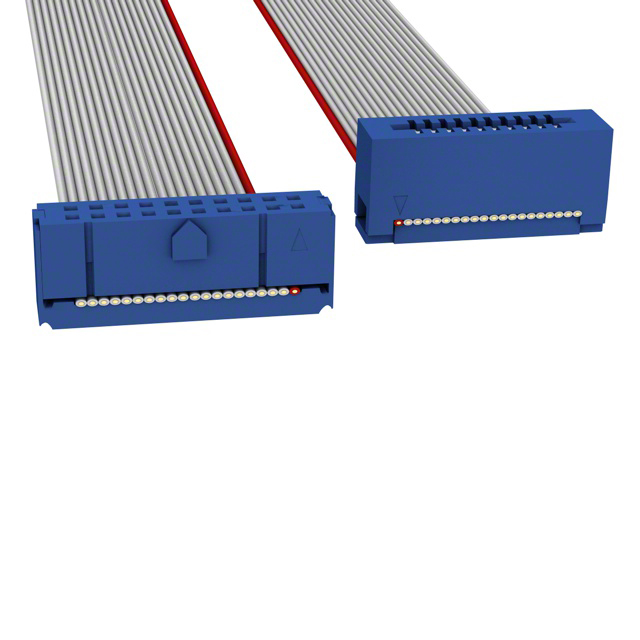

IDC CABLE - CKC26S/AE26G/CCE26S

Part	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Shielding	Pitch - Connector	Pitch - Connector	Usage	Number of Positions	Features	Length	Length	Length	Contact Finish	Pitch - Cable	Pitch - Cable	Connector Type	Color	Length [x]	Length [x]
CW Industries C3CES-2606G	IDC	2.54 µm	100 µin	2	Unshielded	0.1 in	2.54 mm	Board In	26	Polarizing Key	152.4 mm	0.5 '	6 "	Tin	0.05 in	1.27 mm	Socket to Card Edge
CW Industries C3CES-2036M	IDC	2.54 µm	100 µin	2	Unshielded	0.1 in	2.54 mm	Board In	20	Polarizing Key	91.44 cm	3 ft		Tin	0.05 in	1.27 mm	Socket to Card Edge	Multiple Ribbon
CW Industries C3CES-2618G	IDC	2.54 µm	100 µin	2	Unshielded	0.1 in	2.54 mm	Board In	26	Polarizing Key				Tin	0.05 in	1.27 mm	Socket to Card Edge		457.2 mm	1.5 ft
CW Industries C3CES-2018G	IDC	2.54 µm	100 µin	2	Unshielded	0.1 in	2.54 mm	Board In	20	Polarizing Key				Tin	0.05 in	1.27 mm	Socket to Card Edge		457.2 mm	1.5 ft
CW Industries C3CES-2636M	IDC	2.54 µm	100 µin	2	Unshielded	0.1 in	2.54 mm	Board In	26	Polarizing Key	91.44 cm	3 ft		Tin	0.05 in	1.27 mm	Socket to Card Edge	Multiple Ribbon
CW Industries C3CES-2636G	IDC	2.54 µm	100 µin	2	Unshielded	0.1 in	2.54 mm	Board In	26	Polarizing Key	91.44 cm	3 ft		Tin	0.05 in	1.27 mm	Socket to Card Edge
CW Industries C3CES-2006G	IDC	2.54 µm	100 µin	2	Unshielded	0.1 in	2.54 mm	Board In	20	Polarizing Key	152.4 mm	0.5 '	6 "	Tin	0.05 in	1.27 mm	Socket to Card Edge
