MPM3506 Series

Catalog

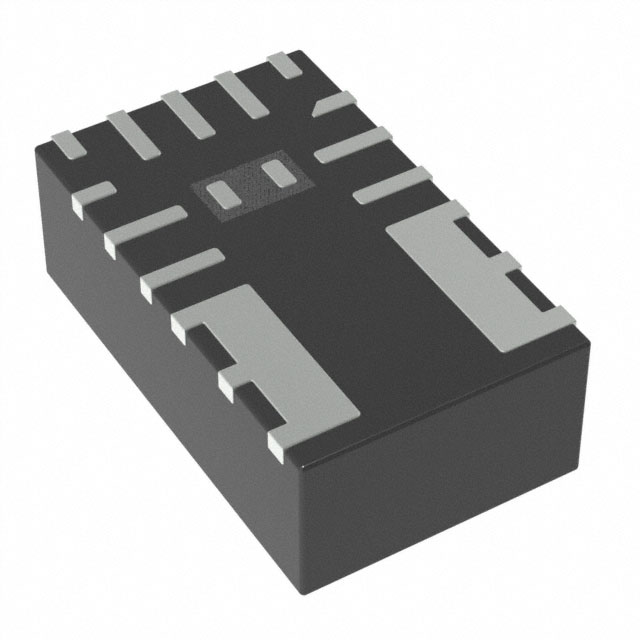

DC/DC POL CONVERTER, ADJUSTABLE, SYNC BUCK, 1.15MHZ, 4.5V TO 36V IN, 0.81V TO 33.12V/600MA OUT, QFN

Part	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Voltage - Input (Min) [Min]	Features	Package / Case	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	Applications	Mounting Type	Current - Output (Max) [Max]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Supplier Device Package
Monolithic Power Systems Inc. MPM3506AGQV-P	0.81 V	32 V	4.5 V	OCP OTP UVLO	19-PowerLQFN Module	0.06 "	0.12 in	3 mm	5 mm	0.2 in	1.6 mm	1	ITE (Commercial)	Surface Mount	600 mA	Non-Isolated PoL Module	-40 C	125 °C	36 V	19-QFN (3x5)
Monolithic Power Systems Inc. MPM3506AGQV-Z	0.81 V	32 V	4.5 V	OCP OTP UVLO	19-PowerLQFN Module	0.06 "	0.12 in	3 mm	5 mm	0.2 in	1.6 mm	1	ITE (Commercial)	Surface Mount	600 mA	Non-Isolated PoL Module	-40 C	125 °C	36 V	19-QFN (3x5)
