430200 Series

Catalog

CONN BARRIER STRP 16CIRC 0.438"

Part	Material - Insulation	Terminal Screw Material	Terminal Screw Finish	Operating Temperature	Material Flammability Rating	Mounting Type	Barrier Type	Features	Current Rating (Amps)	Top Termination	Terminal Block Type	Wire Gauge [Max]	Wire Gauge [Min]	Number of Circuits	Pitch [x]	Pitch [x]	Voltage Rating	Number of Wire Entries	Bottom Termination	Number of Rows	Number of Wire Entries [custom]	Number of Circuits [custom]
Curtis Industries 430200-16-0	Polypropylene (PP)	Steel	Zinc	105 C	UL94 V-0	Chassis Panel	2 Wall (Dual)	Flange	20 A	Screws	Barrier Block	22 AWG	12 AWG	16	0.438 in	11.12 mm	600 V	16	Solder Turret	1
Curtis Industries 430200-07-0	Polypropylene (PP)	Steel	Zinc	105 C	UL94 V-0	Chassis Panel	2 Wall (Dual)	Flange	20 A	Screws	Barrier Block	22 AWG	12 AWG	7	0.438 in	11.12 mm	600 V		Solder Turret	1	7
Curtis Industries 430200-06-0	Polypropylene (PP)	Steel	Zinc	105 C	UL94 V-0	Chassis Panel	2 Wall (Dual)	Flange	20 A	Screws	Barrier Block	22 AWG	12 AWG	6	0.438 in	11.12 mm	600 V	6	Solder Turret	1
Curtis Industries 430200-04-0	Polypropylene (PP)	Steel	Zinc	105 C	UL94 V-0	Chassis Panel	2 Wall (Dual)	Flange	20 A	Screws	Barrier Block	22 AWG	12 AWG	4	0.438 in	11.12 mm	600 V	4	Solder Turret	1
Curtis Industries 430200-15-0	Polypropylene (PP)	Steel	Zinc	105 C	UL94 V-0	Chassis Panel	2 Wall (Dual)	Flange	20 A	Screws	Barrier Block	22 AWG	12 AWG	15	0.438 in	11.12 mm	600 V	15	Solder Turret	1
Curtis Industries 430200-10-0	Polypropylene (PP)	Steel	Zinc	105 C	UL94 V-0	Chassis Panel	2 Wall (Dual)	Flange	20 A	Screws	Barrier Block	22 AWG	12 AWG	10	0.438 in	11.12 mm	600 V	10	Solder Turret	1
Curtis Industries 430200-24-0	Polypropylene (PP)	Steel	Zinc	105 C	UL94 V-0	Chassis Panel	2 Wall (Dual)	Flange	20 A	Screws	Barrier Block	22 AWG	12 AWG	24	0.438 in	11.12 mm	600 V		Solder Turret	1
Curtis Industries 430200-11-0	Polypropylene (PP)	Steel	Zinc	105 C	UL94 V-0	Chassis Panel	2 Wall (Dual)	Flange	20 A	Screws	Barrier Block	22 AWG	12 AWG	11	0.438 in	11.12 mm	600 V	11	Solder Turret	1
Curtis Industries 430200-23-0	Polypropylene (PP)	Steel	Zinc	105 C	UL94 V-0	Chassis Panel	2 Wall (Dual)	Flange	20 A	Screws	Barrier Block	22 AWG	12 AWG		0.438 in	11.12 mm	600 V	23	Solder Turret	1		23

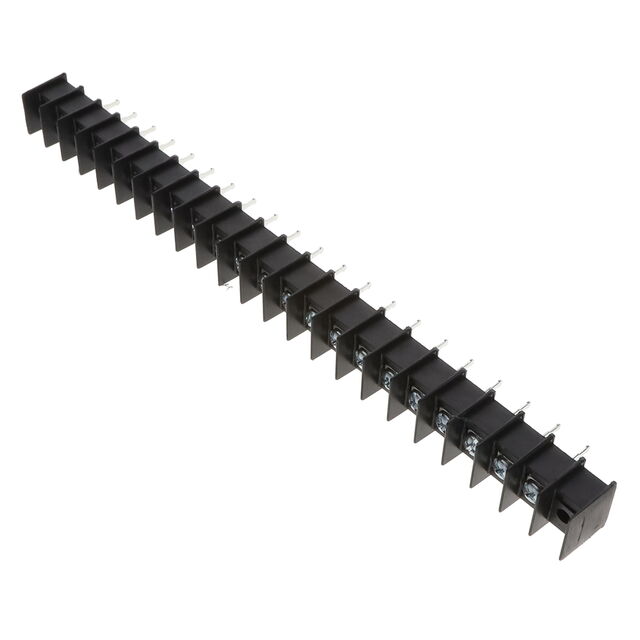

Curtis Industries 430200-21-0	Polypropylene (PP)	Steel	Zinc	105 C	UL94 V-0	Chassis Panel	2 Wall (Dual)	Flange	20 A	Screws	Barrier Block	22 AWG	12 AWG	21	0.438 in	11.12 mm	600 V	21	Solder Turret	1
