0542-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

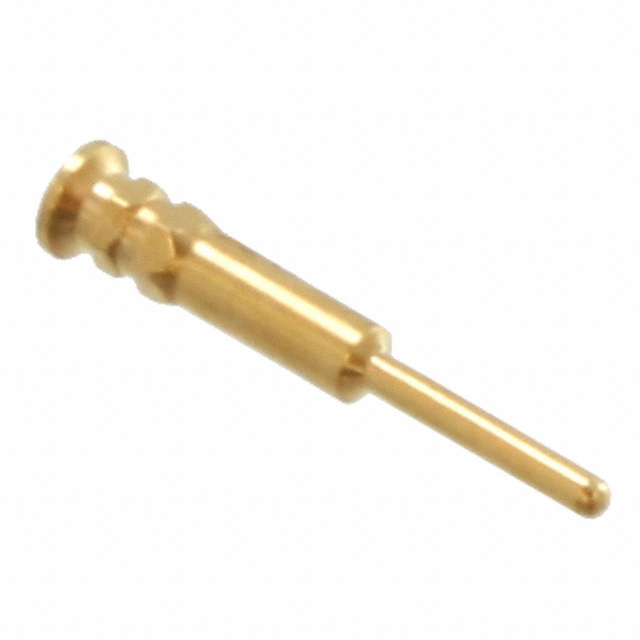

CONN PC PIN CIRC 0.020DIA GOLD
| Part | Length - Above Flange [custom] | Length - Above Flange [custom] | Terminal Type | Contact Material | Terminal Style | Contact Finish | Termination | Insulation | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Flange Diameter [diameter] | Flange Diameter [diameter] | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 7.09 mm | 0.279 in | PC Pin | Brass Alloy | Single End | Gold | Hex Press-Fit | Non-Insulated | 0.02 in | 0.51 mm | 0.039 in | 0.99 mm | Through Hole | 0.25 Ám | 10 Áin | 1.4 mm | 0.055 in | 0.295 in | 7.49 mm |
 Mill-Max Manufacturing Corp. | 7.09 mm | 0.279 in | PC Pin | Brass Alloy | Single End | Gold | Hex Press-Fit | Non-Insulated | 0.02 in | 0.51 mm | 0.039 in | 0.99 mm | Through Hole | 1.27 µm | 50 µin | 1.4 mm | 0.055 in | 0.295 in | 7.49 mm |
 Mill-Max Manufacturing Corp. | 7.09 mm | 0.279 in | PC Pin | Brass Alloy | Single End | Tin-Lead | Hex Press-Fit | Non-Insulated | 0.02 in | 0.51 mm | 0.039 in | 0.99 mm | Through Hole | 5.08 Ám | 200 Áin | 1.4 mm | 0.055 in | 0.295 in | 7.49 mm |
 Mill-Max Manufacturing Corp. | 7.09 mm | 0.279 in | PC Pin | Brass Alloy | Single End | Gold | Hex Press-Fit | Non-Insulated | 0.02 in | 0.51 mm | 0.039 in | 0.99 mm | Through Hole | 0.51 µm | 20 µin | 1.4 mm | 0.055 in | 0.295 in | 7.49 mm |
