PPPC202 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 40POS 0.1 GOLD PCB

Part	Contact Material	Contact Finish Thickness - Post	Contact Shape	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Current Rating (Amps)	Mounting Type	Number of Positions Loaded	Connector Type	Voltage Rating	Number of Rows [custom]	Contact Finish - Mating	Fastening Type	Termination	Contact Finish - Post	Material Flammability Rating	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post

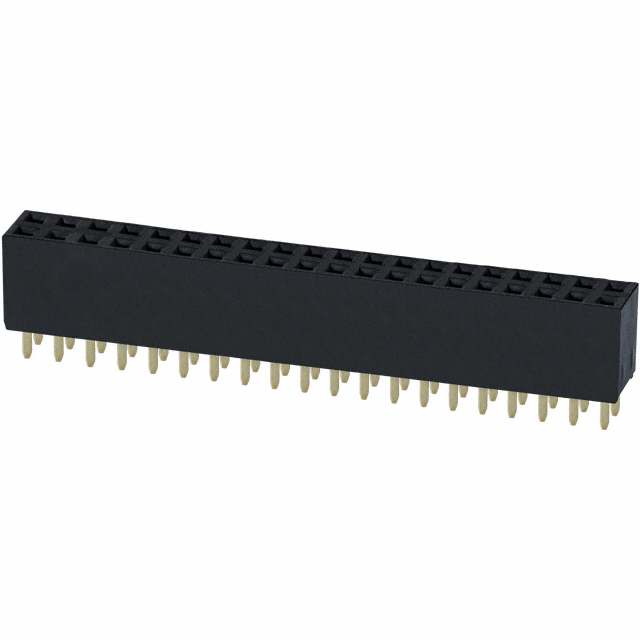

Sullins Connector Solutions PPPC202LFBN-RC	Phosphor Bronze	Flash	Square	Polyester	0.1 in	2.54 mm	Black	0.1 "	2.54 mm	0.126 "	3.2 mm	40	Flash	0.335 "	8.51 mm	3 A	Through Hole	All	Header	250 V	2	Gold	Push-Pull	Solder	Gold	UL94 V-0	Female Socket	-40 C	105 ░C

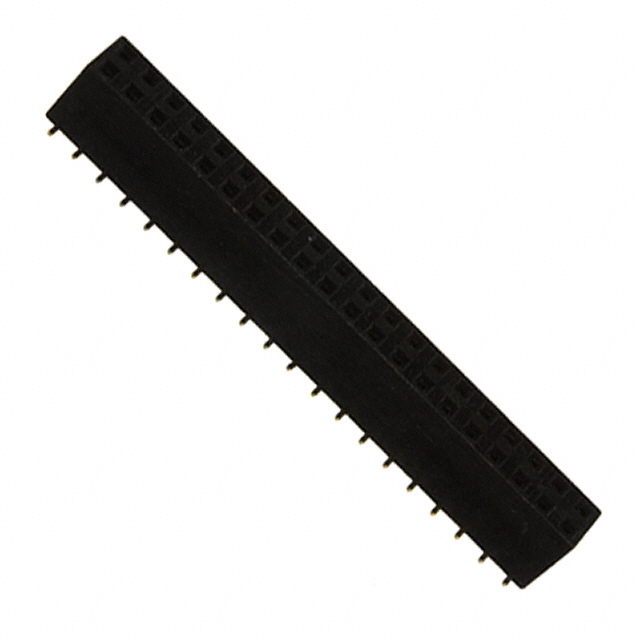

Sullins Connector Solutions PPPC202KFMS	Phosphor Bronze	Flash	Square	Polyester	0.1 in	2.54 mm	Black	0.1 "	2.54 mm			40	Flash		7.6 mm	3 A	Surface Mount	All	Header	250 V	2	Gold	Push-Pull	Solder	Gold	UL94 V-0	Female Socket	-40 C	125 °C	0.299 "
Sullins Connector Solutions PPPC202LFBN	Phosphor Bronze	Flash	Square	Polyester	0.1 in	2.54 mm	Black	0.1 "	2.54 mm	0.126 "	3.2 mm	40	Flash	0.335 "	8.51 mm	3 A	Through Hole	All	Header	250 V	2	Gold	Push-Pull	Solder	Gold	UL94 V-0	Female Socket	-40 C	105 ░C

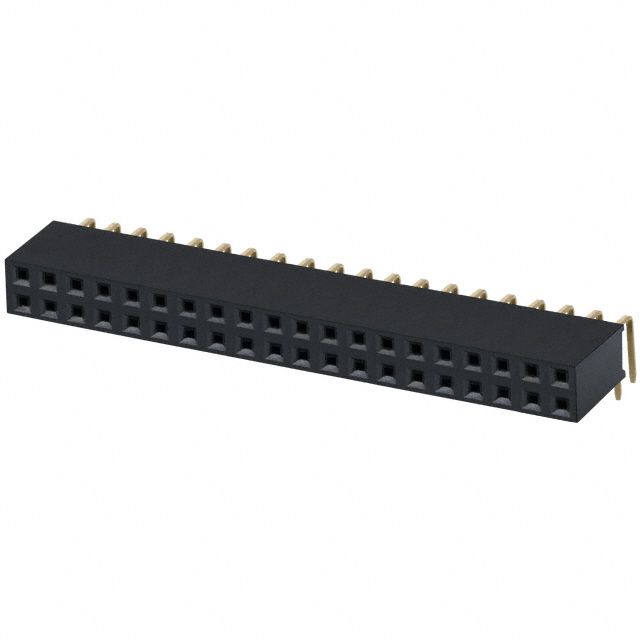

Sullins Connector Solutions PPPC202LJBN-RC	Phosphor Bronze	Flash	Square	Polyester	0.1 in	2.54 mm	Black	0.1 "	2.54 mm			40	Flash			3 A	Right Angle Through Hole	All	Header	250 V	2	Gold	Push-Pull	Solder	Gold	UL94 V-0	Female Socket	-40 C	105 ░C	0.2 in	5.08 mm	0.124 in	3.15 mm
