PPPN112 Series

Catalog

CONN HDR 22P 0.079 GOLD PCB R/A

Part	Insulation Material	Contact Shape	Contact Finish Thickness - Post	Contact Material	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Fastening Type	Contact Type	Number of Positions Loaded	Connector Type	Contact Finish - Post	Contact Finish Thickness - Mating	Insulation Height	Insulation Height [z]	Contact Length - Post	Contact Length - Post	Number of Positions	Material Flammability Rating	Insulation Color	Mounting Type	Row Spacing - Mating	Row Spacing - Mating

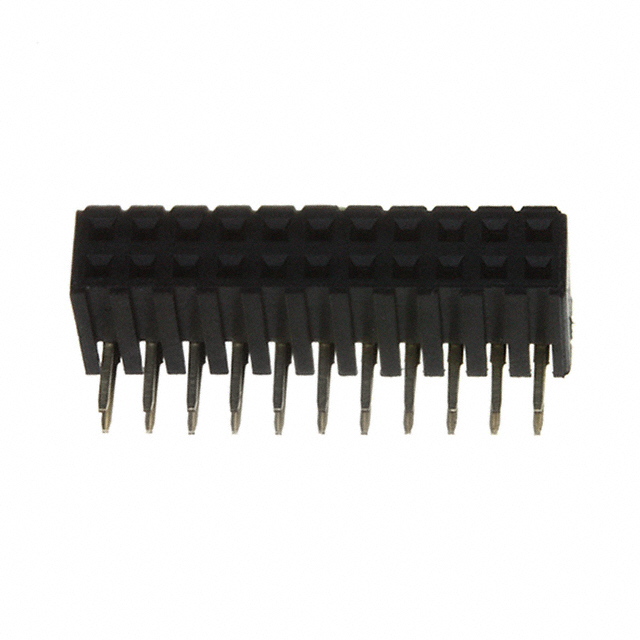

Sullins Connector Solutions PPPN112FJFN	Polyester	Square	Flash	Phosphor Bronze	0.079 "	2 mm	Gold	2	-40 C	105 ░C	Solder	Push-Pull	Female Socket	All	Header	Gold	Flash	4.85 mm	0.191 in	0.118 in	3 mm	22	UL94 V-0	Black	Right Angle Through Hole	2 mm	0.079 in
