5596001 Series

Manufacturer: DIALIGHT

Catalog

LED PMI SNAP-IN BLUE PVC FREE

Part	Lens Size	Lens Size	Current	Type	Millicandela Rating	Lens Color	Viewing Angle	Lamp Color	Lens Style	Termination Style	Termination Style	Termination Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Voltage	Panel Cutout Shape	Wavelength - Peak	Lens Transparency

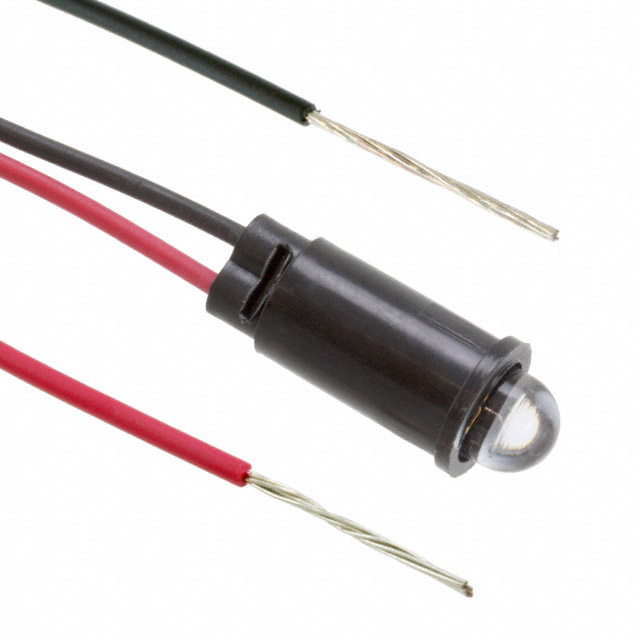

DIALIGHT 5596001027F	5 mm	T-1 3/4	30 mA	LED	1500 mcd	Colorless	30 °	Blue	Round with Domed Top	Wire Leads	14 in	355.6 mm	6.35 mm	0.25 in	3.6 V	Round	470 nm	Clear

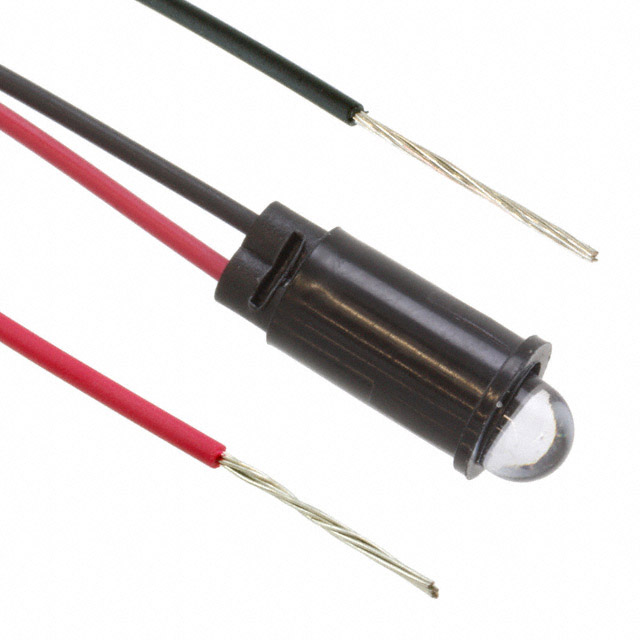

DIALIGHT 5596001023F	5 mm	T-1 3/4	30 mA	LED	1500 mcd	Colorless	30 °	Blue	Round with Domed Top				6.35 mm	0.25 in	3.6 V	Round	470 nm	Clear

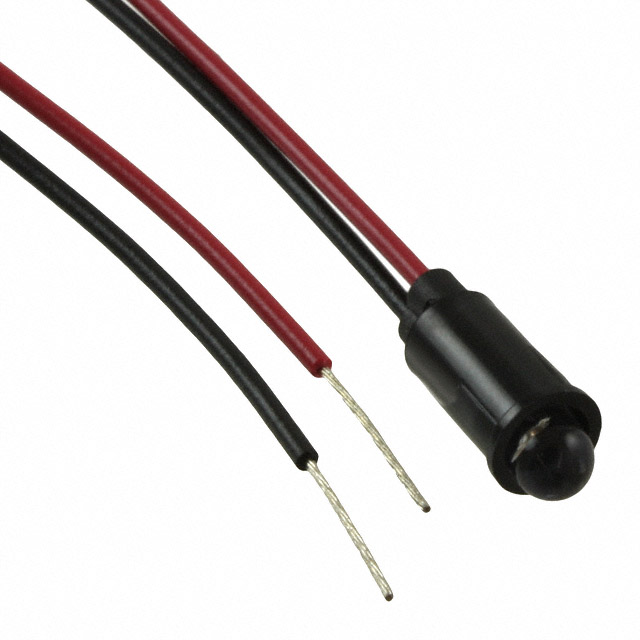

DIALIGHT 5596001003F	5 mm	T-1 3/4	30 mA	LED	1500 mcd	Colorless	30 °	Blue	Round with Domed Top				6.35 mm	0.25 in	3.6 V	Round	470 nm	Clear

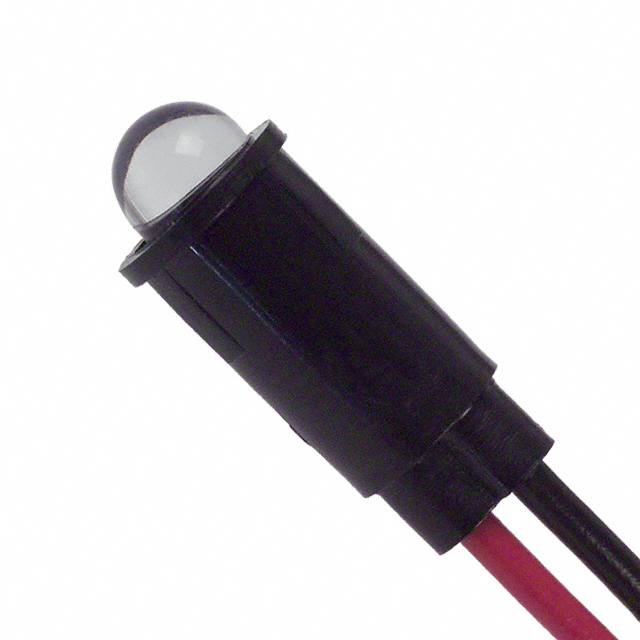

DIALIGHT 5596001007F	5 mm	T-1 3/4	30 mA	LED	1500 mcd	Colorless	30 °	Blue	Round with Domed Top	Wire Leads	14 in	355.6 mm	6.35 mm	0.25 in	3.6 V	Round	470 nm	Clear

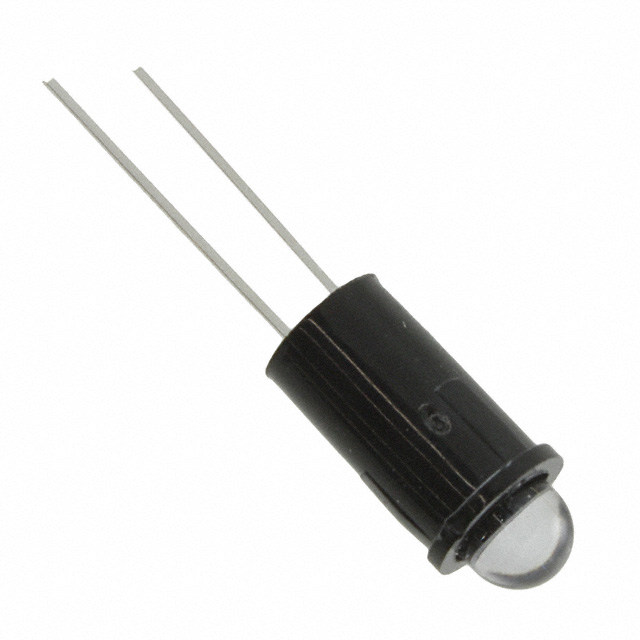

DIALIGHT 5596001001F	5 mm	T-1 3/4	30 mA	LED	1500 mcd	Colorless	30 °	Blue	Round with Domed Top	PC Pin			6.35 mm	0.25 in	3.6 V	Round	470 nm	Clear
