Ultra-Pod 250 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

QUICK DISCONNECT TERMINAL 10-14AWG BRASS NATURAL F 34.8MM TIN T/R

Part	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation	Contact Material	Tab Thickness	Tab Thickness	Tab Width [x]	Tab Width [x]	Length - Overall [x]	Length - Overall [x]	Terminal Type	Mounting Type	Contact Finish	Gender	Wire Gauge [Max]	Wire Gauge [Min]	Termination	Color	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]
TE Connectivity AMP Connectors 520974-2	0.13 in	4.57 mm	0.18 in	3.3 mm	Fully Insulated	Brass	0.81 mm	0.032 in	6.35 mm	0.25 in	1.37 in	34.8 mm	Standard	Free Hanging (In-Line)	Tin	Female	14 AWG	10 AWG	Crimp	Natural

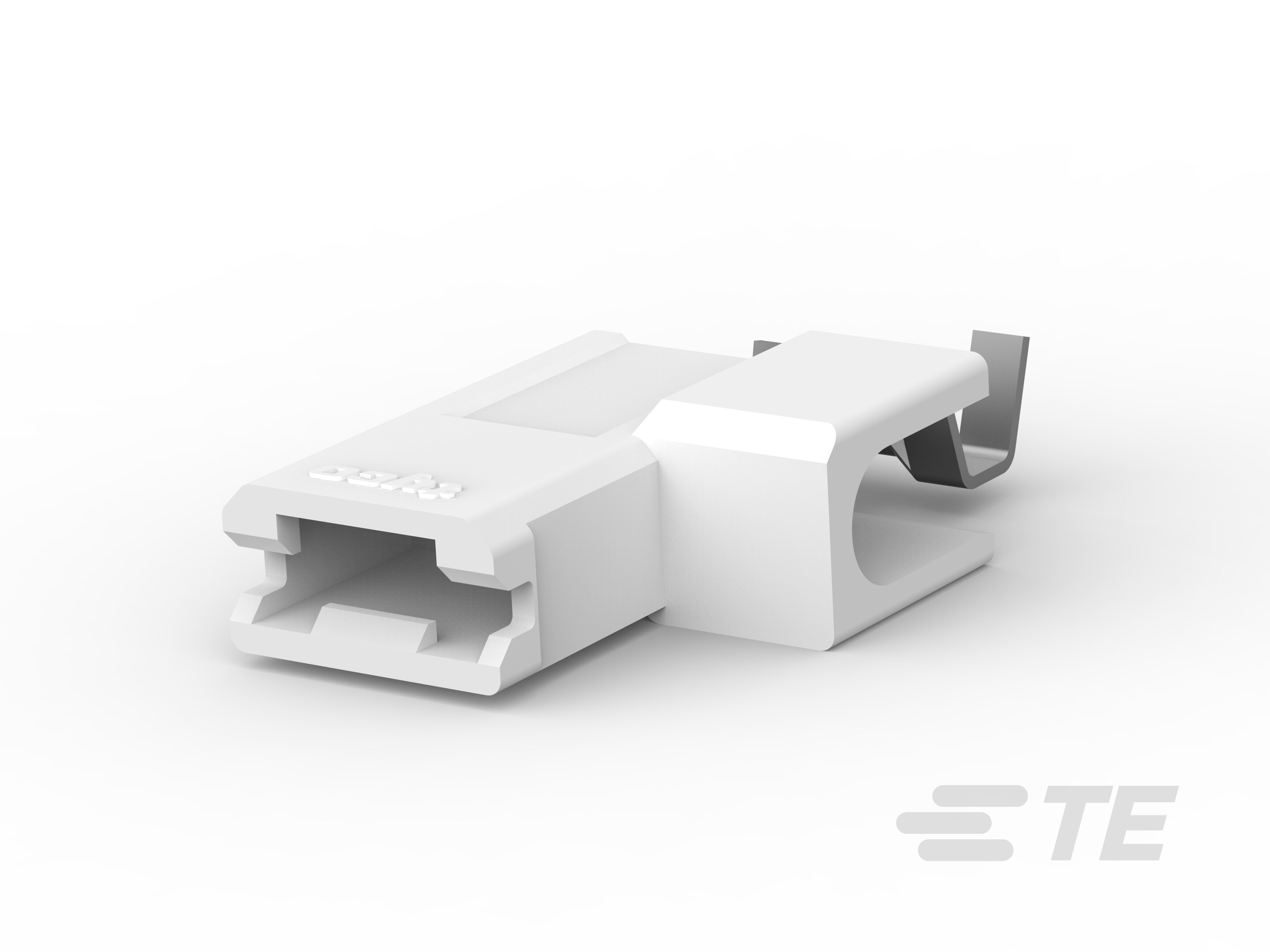

TE Connectivity AMP Connectors 521411-2					Fully Insulated	Brass	0.81 mm	0.032 in	6.35 mm	0.25 in			Angled - 90° Flag	Free Hanging (In-Line) Right Angle	Tin	Female	22 AWG	17.5 AWG	Crimp	Natural	0.1 in	0.05 in	2.54 mm	1.27 mm

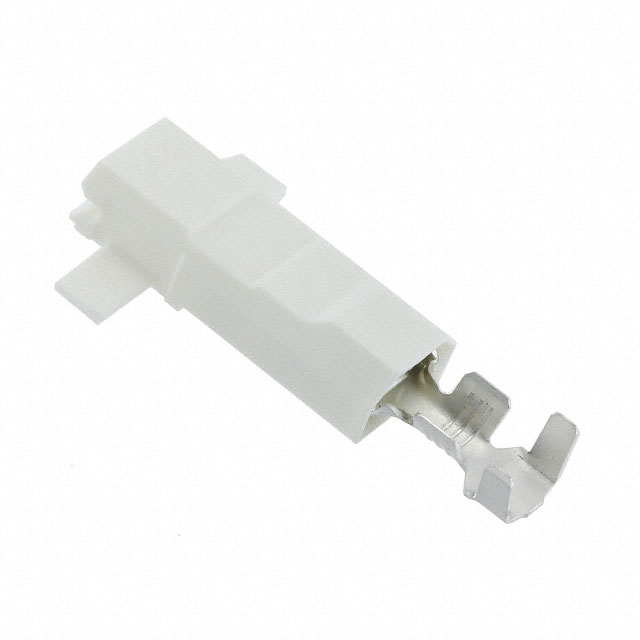

TE Connectivity AMP Connectors 521998-2	0.11 in	4.57 mm	0.18 in	2.79 mm	Mating End Insulated	Brass	0.81 mm	0.032 in	6.35 mm	0.25 in	1.37 in	34.8 mm	Standard	Free Hanging (In-Line)	Tin	Female	18 AWG	14 AWG	Crimp	White
TE Connectivity AMP Connectors 521317-2					Fully Insulated	Brass	0.81 mm	0.032 in	6.35 mm	0.25 in	1.32 in	33.53 mm	Standard	Free Hanging (In-Line)	Tin	Female	18 AWG	14 AWG	Crimp	Natural	0.17 "	0.11 in	4.32 mm	2.79 mm
TE Connectivity AMP Connectors 521282-2					Fully Insulated	Brass	0.81 mm	0.032 in	6.35 mm	0.25 in			Angled - 90° Flag	Free Hanging (In-Line) Right Angle	Tin	Female	18 AWG	14 AWG	Crimp	Natural	0.16 in	0.11 in	4.06 mm	2.79 mm
TE Connectivity AMP Connectors 521050-2					Fully Insulated	Brass	0.81 mm	0.032 in	6.35 mm	0.25 in			Angled - 90° Flag	Free Hanging (In-Line) Right Angle	Tin	Female	22 AWG	17.5 AWG	Crimp	Natural
TE Connectivity AMP Connectors 521317-1					Fully Insulated	Brass	0.81 mm	0.032 in	6.35 mm	0.25 in	1.32 in	33.53 mm	Standard	Free Hanging (In-Line)		Female	18 AWG	14 AWG	Crimp	Natural	0.17 "	0.11 in	4.32 mm	2.79 mm

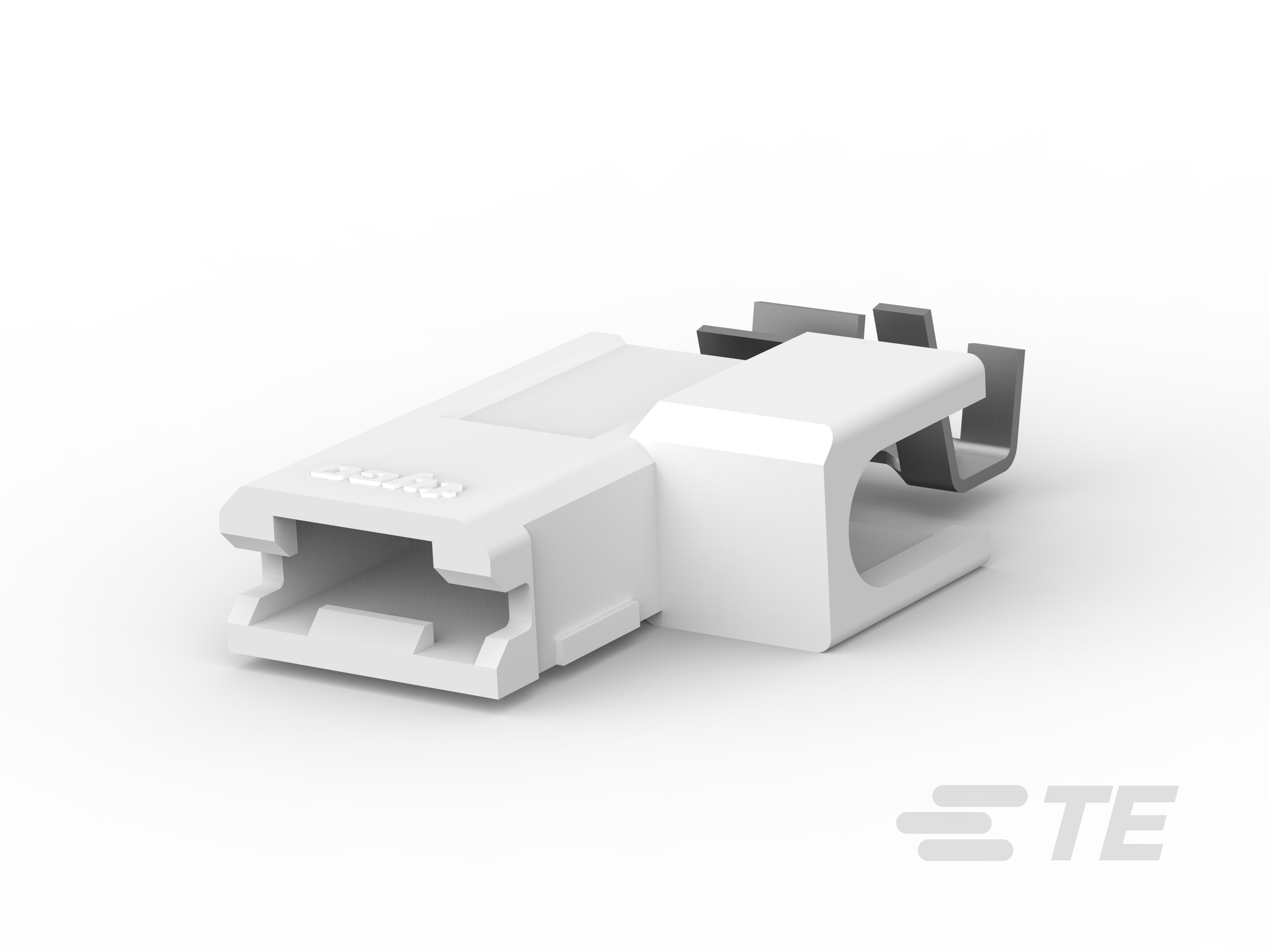

TE Connectivity AMP Connectors 521347-2					Fully Insulated	Brass	0.81 mm	0.032 in	6.35 mm	0.25 in			Angled - 90° Flag	Free Hanging (In-Line) Right Angle	Tin	Female	18 AWG	14 AWG	Crimp	Natural
TE Connectivity AMP Connectors 1969206-1					Fully Insulated	Brass	0.81 mm	0.032 in	6.35 mm	0.25 in	1.366 in	34.7 mm	Standard	Free Hanging (In-Line)		Female	18 AWG	14 AWG	Crimp	White Red Stripe

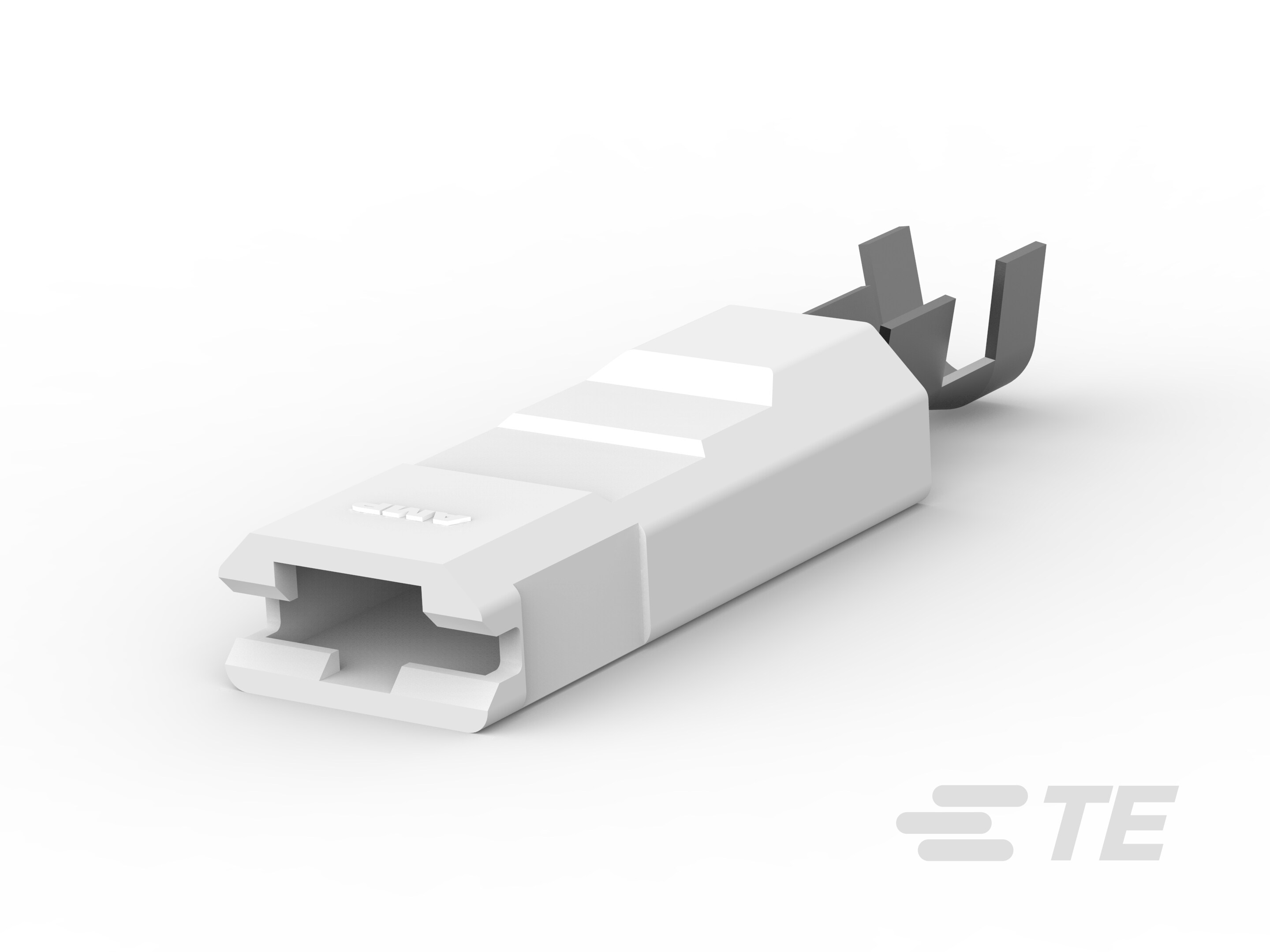

TE Connectivity AMP Connectors 521567-2					Fully Insulated	Brass	0.81 mm	0.032 in	6.35 mm	0.25 in	1.366 in	34.7 mm	Standard	Free Hanging (In-Line)	Tin	Female	18 AWG	14 AWG	Crimp	Natural	0.17 "	0.11 in	4.32 mm	2.79 mm
