076060 Series

Manufacturer: Molex

Catalog

CONN RCPT IMPACT 210POS EDGE MNT

Part	Material Flammability Rating	Number of Rows	Termination	Mounting Type	Color	Number of Positions Loaded	Connector Type	Contact Layout, Typical	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Contact Finish Thickness	Contact Finish Thickness	Number of Columns	Contact Finish	Number of Positions	Connector Style	Pitch [x]	Pitch [x]
Molex 0760605024	UL94 V-0	15	Press-Fit	Board Edge Right Angle Through Hole	Black	All	Receptacle Female Sockets	70 Differential Pairs	85 °C	-55 °C	30 VDC	0.76 Ám	30 Áin	14	Gold	210
Molex 0760605026	UL94 V-0	15	Press-Fit	Board Edge Right Angle Through Hole	Black	All	Receptacle Female Sockets	80	85 °C	-55 °C	30 VDC	0.76 Ám	30 Áin	16	Gold	240
Molex 0760605120	UL94 V-0	15	Press-Fit	Board Edge Right Angle Through Hole	Black	All	Receptacle Female Sockets	50 Differential Pairs	85 °C	-55 °C	30 VDC	0.76 Ám	30 Áin	10	Gold	150
Molex 0760600020	UL94 V-0	15	Press-Fit	Panel Mount Right Angle Through Hole	Black	All	Receptacle Female Sockets	50 Differential Pairs	85 °C	-55 °C	30 VDC	0.76 Ám	30 Áin	10	Gold	150	Impact
Molex 0760603020	UL94 V-0	15	Press-Fit	Board Edge Right Angle Through Hole	Black	All	Receptacle Female Sockets	50 Differential Pairs	85 °C	-55 °C	30 VDC	0.76 Ám	30 Áin	10	Gold	150	Guide Left Impact	0.053 in	1.35 mm
Molex 0760605110	UL94 V-0	15	Press-Fit	Board Edge Right Angle Through Hole	Black	All	Receptacle Female Sockets	50 Differential Pairs	85 °C	-55 °C	30 VDC	0.76 Ám	30 Áin	10	Gold	150

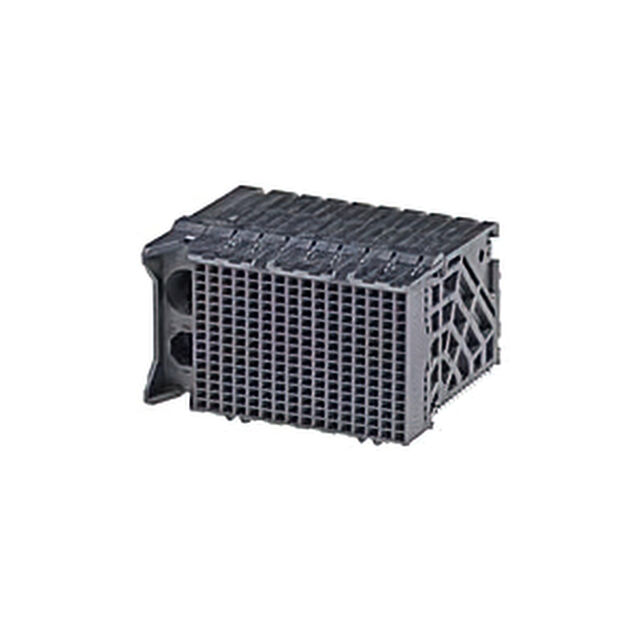

Molex 0760603126	UL94 V-0	15	Press-Fit	Board Edge Right Angle Through Hole	Black	All	Receptacle Female Sockets	80	85 °C	-55 °C	30 VDC	0.76 Ám	30 Áin	16	Gold	240	Guide Left Impact	0.053 in	1.35 mm
Molex 0760604016	UL94 V-0	15	Press-Fit	Board Edge Right Angle Through Hole	Black	All	Receptacle Female Sockets	80	85 °C	-55 °C	30 VDC	0.76 Ám	30 Áin	16	Gold	240
Molex 0760605020	UL94 V-0	15	Press-Fit	Board Edge Right Angle Through Hole	Black	All	Receptacle Female Sockets	50 Differential Pairs	85 °C	-55 °C	30 VDC	0.76 Ám	30 Áin	10	Gold	150
