RT6338 Series

Catalog

IC REG DL BUCK/LNR 500KHZ 23QFN

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Topology	Voltage/Current - Output 1	Voltage/Current - Output 1	Voltage/Current - Output 2	Voltage/Current - Output 2	Supplier Device Package	Package / Case	Frequency - Switching	Number of Outputs	Mounting Type	Voltage/Current - Output 2 [custom]	Voltage/Current - Output 2 [custom]

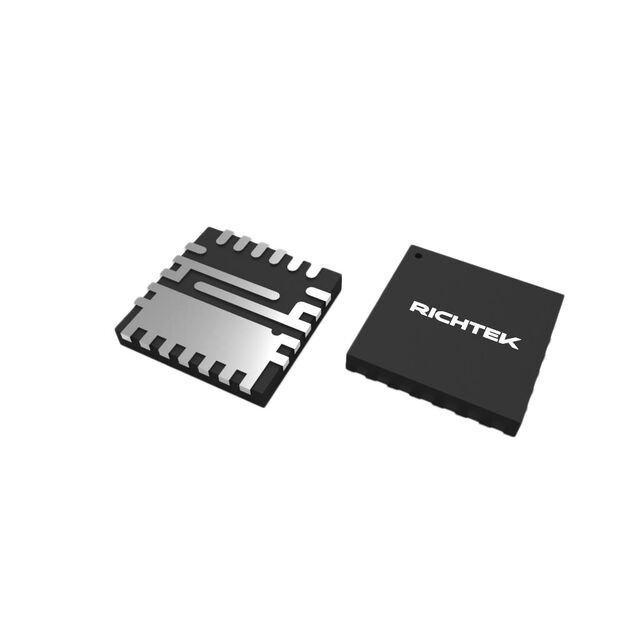

Richtek USA Inc. RT6338CHGQUF	-40 C	125 °C	5.2 V	23 V	Linear (LDO) (1) Step-Down (Buck) Synchronous (1)	Fixed	5.1 V 8 A	Fixed	5 V 100 mA	23-UQFN (FC) (3x3)	23-PowerUFQFN	500 kHz	2	Surface Mount
Richtek USA Inc. RT6338BHGQUF	-40 C	125 °C	4.5 V	23 V	Linear (LDO) (1) Step-Down (Buck) Synchronous (1)	Fixed	3.3 V 8 A			23-UQFN (FC) (3x3)	23-PowerUFQFN	500 kHz	2	Surface Mount	3.3 V	100 mA
Richtek USA Inc. RT6338CGQUF	-40 C	125 °C	5.2 V	23 V	Linear (LDO) (1) Step-Down (Buck) Synchronous (1)	Fixed	5.1 V 8 A	Fixed	5 V 100 mA	23-UQFN (FC) (3x3)	23-PowerUFQFN	500 kHz	2	Surface Mount
