391-088 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 88POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Gender	Contact Material	Contact Finish	Color	Number of Positions/Bay/Row	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Number of Positions	Read Out	Pitch	Pitch	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Card Type	Termination	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 391-088-522-201	Polyester Thermoplastic	2	Female	Copper Alloy	Gold	Black	44	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	88	Dual	0.1 "	2.54 mm	Semi Bellows	0.25 Ám	10 Áin	2	Non Specified - Dual Edge	Solder
EDAC Inc. 391-088-522-208	Polyester Thermoplastic	2	Female	Copper Alloy	Gold	Black	44	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	88	Dual	0.1 "	2.54 mm	Semi Bellows	0.25 Ám	10 Áin	2	Non Specified - Dual Edge	Solder	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 391-088-522-202	Polyester Thermoplastic	2	Female	Copper Alloy	Gold	Black	44	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	88	Dual	0.1 "	2.54 mm	Semi Bellows	0.25 Ám	10 Áin	2	Non Specified - Dual Edge	Solder	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "
EDAC Inc. 391-088-555-202	Polyester Thermoplastic	2	Female	Copper Alloy	Gold	Black	44	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	88	Dual	0.1 "	2.54 mm	Semi Bellows	0.25 Ám	10 Áin	2	Non Specified - Dual Edge	Solder Eyelet(s)	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Card Extender
EDAC Inc. 391-088-521-207	Polyester Thermoplastic	2	Female	Copper Alloy	Gold	Black	44	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	88	Dual	0.1 "	2.54 mm	Semi Bellows	0.25 Ám	10 Áin	2	Non Specified - Dual Edge	Solder	Flush Mount M3 Threaded Insert Top Opening

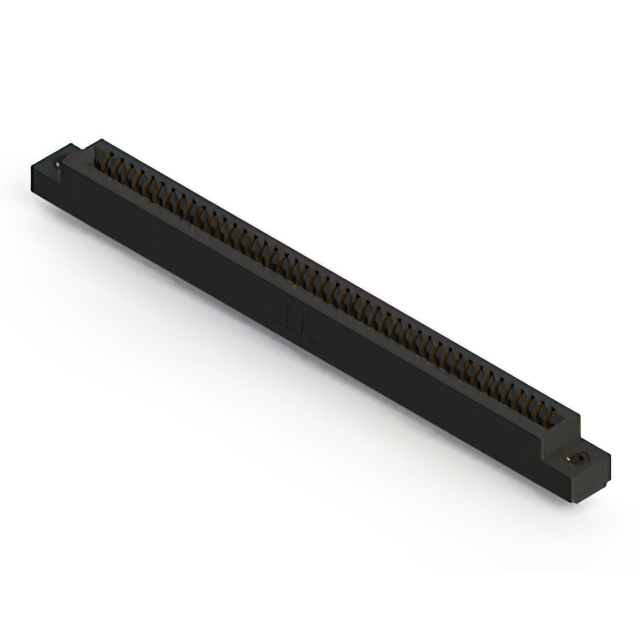

EDAC Inc. 391-088-520-207	Polyester Thermoplastic	2	Female	Copper Alloy	Gold	Black	44	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	88	Dual	0.1 "	2.54 mm	Semi Bellows	0.25 Ám	10 Áin	2	Non Specified - Dual Edge	Solder	Flush Mount M3 Threaded Insert Top Opening

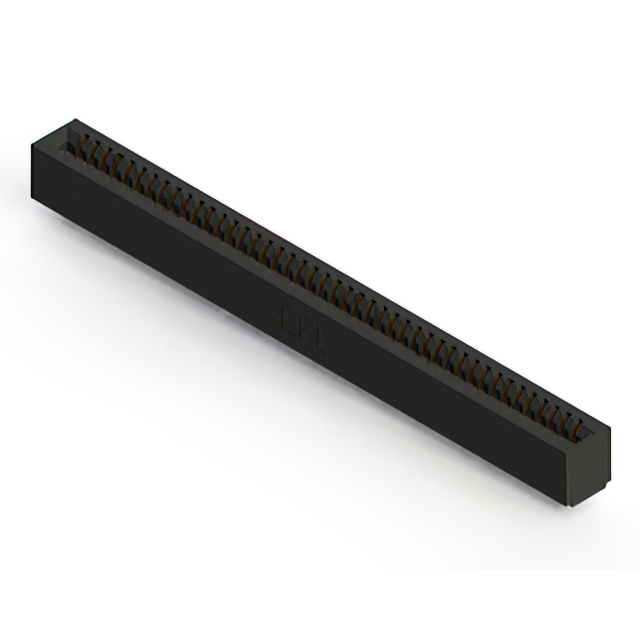

EDAC Inc. 391-088-524-201	Polyester Thermoplastic	2	Female	Copper Alloy	Gold	Black	44	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	88	Dual	0.1 "	2.54 mm	Semi Bellows	0.25 Ám	10 Áin	2	Non Specified - Dual Edge	Solder
EDAC Inc. 391-088-520-202	Polyester Thermoplastic	2	Female	Copper Alloy	Gold	Black	44	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	88	Dual	0.1 "	2.54 mm	Semi Bellows	0.25 Ám	10 Áin	2	Non Specified - Dual Edge	Solder	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "
EDAC Inc. 391-088-521-204	Polyester Thermoplastic	2	Female	Copper Alloy	Gold	Black	44	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	88	Dual	0.1 "	2.54 mm	Semi Bellows	0.25 Ám	10 Áin	2	Non Specified - Dual Edge	Solder	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "
EDAC Inc. 391-088-556-203	Polyester Thermoplastic	2	Female	Copper Alloy	Gold	Black	44	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	88	Dual	0.1 "	2.54 mm	Semi Bellows	0.25 Ám	10 Áin	2	Non Specified - Dual Edge	Solder	Floating Bobbin Flush Mount	2.95 mm	0.116 "	Card Extender
