MS087 Series

Catalog

RF SHIELD 0.272X0.366" SNAP FIT

Part	Height - Overall [z]	Height - Overall [z]	Length - Overall [x]	Length - Overall [x]	Ventilation	Width - Overall [x]	Width - Overall [x]	Type	Mounting Type	Width - Overall [y]	Width - Overall [y]

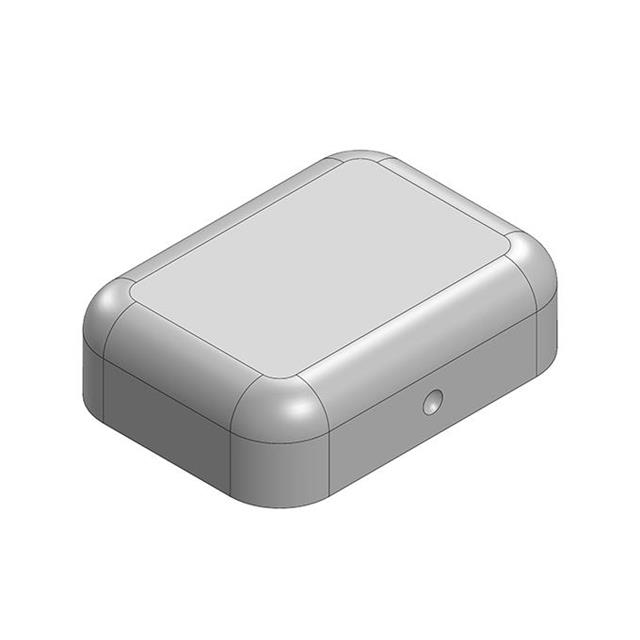

Masach Tech Ltd. MS087-10C-NS	0.106 in	2.7 mm	0.366 in	9.3 mm	Non-Vented	0.272 in	6.9 mm	Cover	Snap Fit
Masach Tech Ltd. MS087-10C	0.106 in	2.7 mm	0.366 in	9.3 mm	Non-Vented	0.272 in	6.9 mm	Cover	Snap Fit
Masach Tech Ltd. MS087-10F	0.118 in	3 mm	0.343 in	8.7 mm				Frame	Solder	6.3 mm	0.248 in

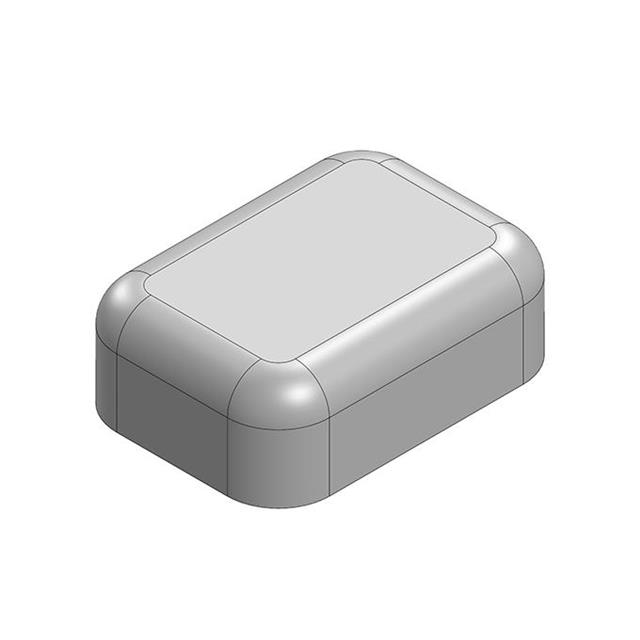

Masach Tech Ltd. MS087-10S-NS	0.118 in	3 mm	0.343 in	8.7 mm	Non-Vented			Shield 1-Piece	Solder	6.3 mm	0.248 in

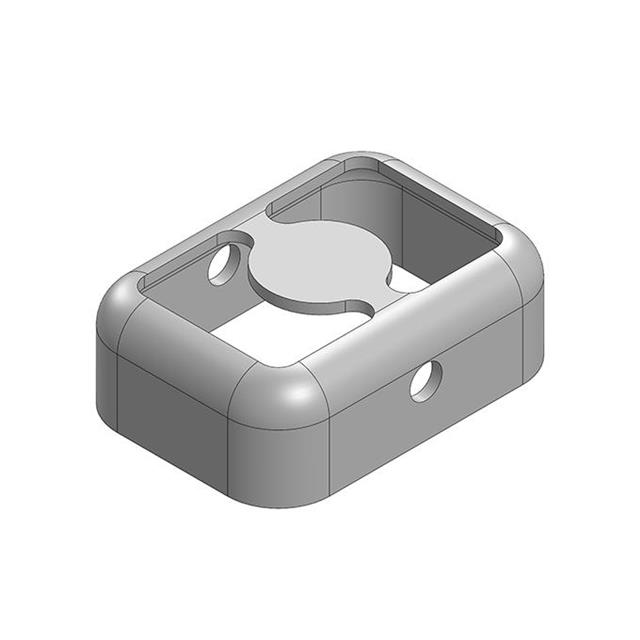

Masach Tech Ltd. MS087-10F-NS	0.118 in	3 mm	0.343 in	8.7 mm				Frame	Solder	6.3 mm	0.248 in
