MAX5392 Series

Dual, 256-Tap, Volatile, Low-Voltage, Linear Taper Digital Potentiometer

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

Dual, 256-Tap, Volatile, Low-Voltage, Linear Taper Digital Potentiometer

Part	Taper	Package / Case [y]	Package / Case	Package / Case [y]	Configuration	Tolerance	Features	Supplier Device Package	Resistance - Wiper (Ohms) (Typ) [Max]	Number of Taps	Number of Circuits	Interface	Memory Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Temperature Coefficient (Typ)	Resistance (Ohms) [custom]	Resistance (Ohms)	Supplied Contents	Type	Function	Contents	Primary Attributes [custom]	Primary Attributes [custom]	Utilized IC / Part
Analog Devices Inc./Maxim Integrated MAX5392MAUE+	Linear	4.4 mm	16-TSSOP	0.173 in	Potentiometer	25 %	Selectable Address	16-TSSOP	200 Ohms	256	2	I2C	Volatile	125 °C	-40 C	1.7 V	5.5 V	Surface Mount	35 ppm/°C	50 kOhms
Analog Devices Inc./Maxim Integrated MAX5392LAUE+	Linear	4.4 mm	16-TSSOP	0.173 in	Potentiometer	25 %	Selectable Address	16-TSSOP	200 Ohms	256	2	I2C	Volatile	125 °C	-40 C	1.7 V	5.5 V	Surface Mount	35 ppm/°C		10k
Analog Devices Inc./Maxim Integrated MAX5392NAUE+	Linear	4.4 mm	16-TSSOP	0.173 in	Potentiometer	25 %	Selectable Address	16-TSSOP	200 Ohms	256	2	I2C	Volatile	125 °C	-40 C	1.7 V	5.5 V	Surface Mount	35 ppm/°C		100k

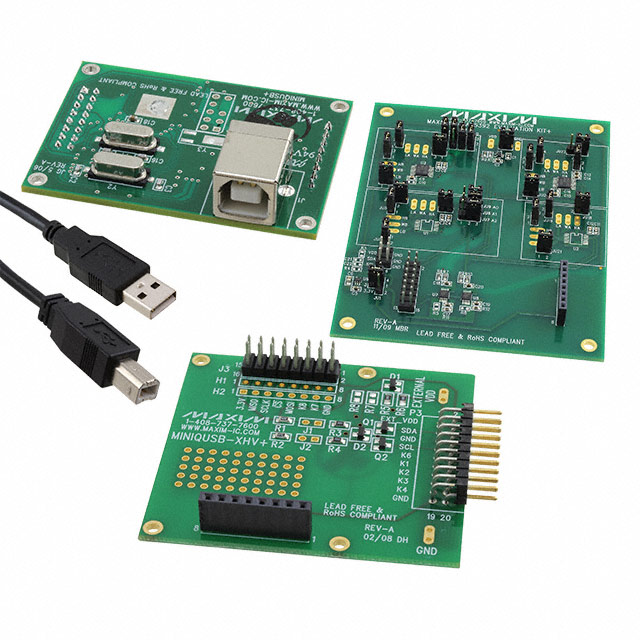

Analog Devices Inc./Maxim Integrated MAX5392EVMINIQU+																						Board(s)	Data Acquisition	Digital Potentiometer	Board(s)	2	256	MAX5392
Analog Devices Inc./Maxim Integrated MAX5392LAUE+T	Linear	4.4 mm	16-TSSOP	0.173 in	Potentiometer	25 %	Selectable Address	16-TSSOP	200 Ohms	256	2	I2C	Volatile	125 °C	-40 C	1.7 V	5.5 V	Surface Mount	35 ppm/°C		10k
Analog Devices Inc./Maxim Integrated MAX5392NAUE+T	Linear	4.4 mm	16-TSSOP	0.173 in	Potentiometer	25 %	Selectable Address	16-TSSOP	200 Ohms	256	2	I2C	Volatile	125 °C	-40 C	1.7 V	5.5 V	Surface Mount	35 ppm/°C		100k

Catalog

Dual, 256-Tap, Volatile, Low-Voltage, Linear Taper Digital Potentiometer

Description

The MAX5392 dual, 256-tap, volatile, low-voltage, linear taper digital potentiometer offers three end-to-end resistance values of 10kΩ, 50kΩ, and 100kΩ. Operating from a single +1.7V to +5.5V power supply, the device provides a low, 35ppm/°C end-to-end temperature coefficient. The device features an I²C interface.The small package size, low supply operating voltage, low supply current, and automotive temperature range of the MAX5392 makes the device uniquely suited for the portable consumer market, battery-backup industrial applications, and the automotive market.The MAX5392 is specified over the automotive -40°C to +125°C temperature range and is available in a 16-pin TSSOP package.ApplicationsAdjustable Voltage References/Linear RegulatorsAutomotive ElectronicsLow-Voltage Battery ApplicationsMechanical Potentiometer ReplacementOffset and Gain ControlPortable Electronics
