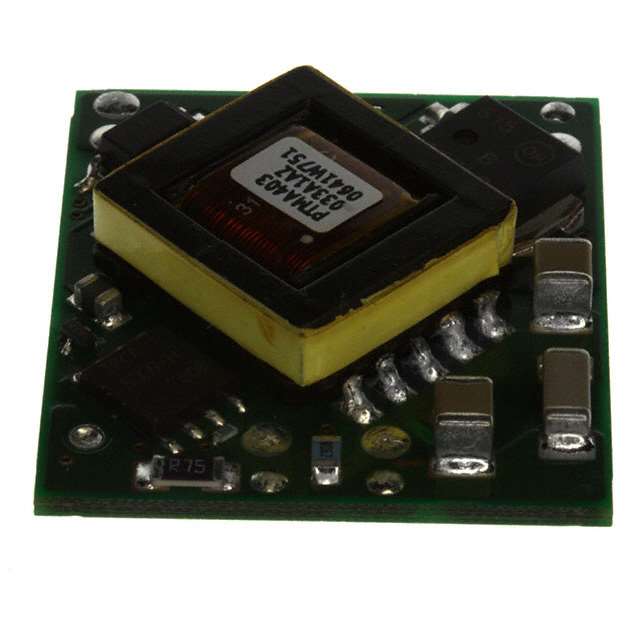

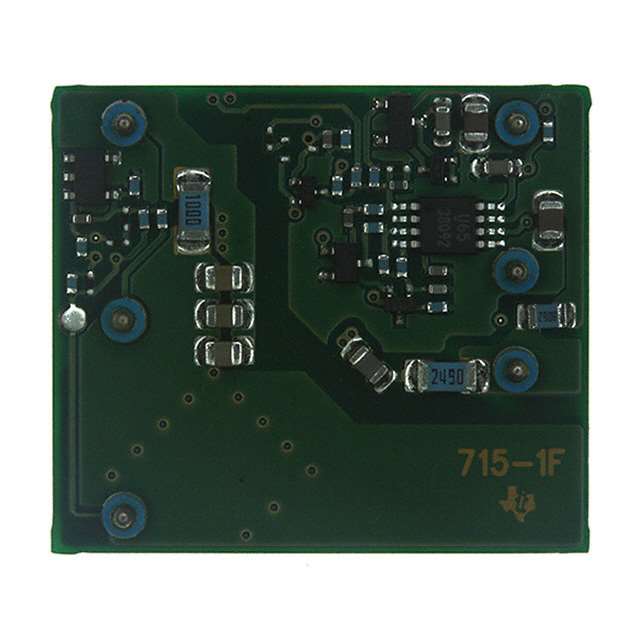

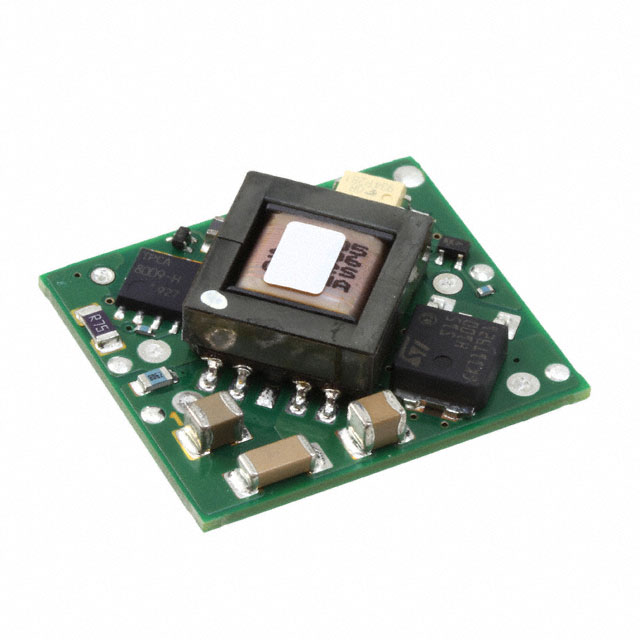

PTMA4 Series

Catalog

DC DC CONVERTER 12V 10W

Part	Voltage - Input (Max) [Max]	Power (Watts)	Voltage - Output 1	Applications	Package / Case	Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Mounting Type	Features	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Isolation	Efficiency
Texas Instruments PTMA401120A3AZ	75 V	10 W	12 V	ITE (Commercial)	6-SMD Module	Isolated Module	85 °C	-40 °C	1	Surface Mount	OCP OVP UVLO	1 A	36 V	1.1 "	9.1 mm	0.36 in	0.96 in	24.4 mm	27.9 mm	1.5 kV
Texas Instruments PTMA403033A2AZ	75 V	10 W	3.3 V	ITE (Commercial)	6-SMD Module 5 Leads	Isolated Module	85 °C	-40 °C	1	Surface Mount	OCP OVP UVLO	3 A	36 V	1.1 "	9.1 mm	0.36 in	0.96 in	24.4 mm	27.9 mm	1.5 kV
Texas Instruments PTMA403033P1AZ	75 V	10 W	3.3 V	ITE (Commercial)	5-SMD Module	Isolated Module	85 °C	-40 °C	1	Surface Mount	OCP OVP UVLO	3 A	36 V	1.1 "	9.1 mm	0.36 in	0.96 in	24.4 mm	27.9 mm	1.5 kV
Texas Instruments PTMA402050A3AZ	75 V	10 W	5 V	ITE (Commercial)	6-SMD Module	Isolated Module	85 °C	-40 °C	1	Surface Mount	OCP OVP UVLO	2 A	36 V	1.1 "	9.1 mm	0.36 in	0.96 in	24.4 mm	27.9 mm	1.5 kV	85 %
Texas Instruments PTMA403033N1AS	75 V	10 W	3.3 V	ITE (Commercial)	5-SMD Module	Isolated Module	85 °C	-40 °C	1	Surface Mount	OCP OVP UVLO	3 A	36 V	1.1 "	9.1 mm	0.36 in	0.96 in	24.4 mm	27.9 mm	1.5 kV
Texas Instruments PTMA401120A2AZ	75 V	10 W	12 V	ITE (Commercial)	5-SMD Module	Isolated Module	85 °C	-40 °C	1	Surface Mount	OCP OVP UVLO	1 A	36 V	1.1 "	9.1 mm	0.36 in	0.96 in	24.4 mm	27.9 mm	1.5 kV
Texas Instruments PTMA402050P2AST	75 V	10 W	5 V	ITE (Commercial)	6-SMD Module	Isolated Module	85 °C	-40 °C	1	Surface Mount	OCP OVP Remote On/Off UVLO	2 A	36 V	1.1 "	9.1 mm	0.36 in	0.96 in	24.4 mm	27.9 mm	1.5 kV	85 %
Texas Instruments PTMA401120N1AZ	75 V	10 W	12 V	ITE (Commercial)	5-SMD Module	Isolated Module	85 °C	-40 °C	1	Surface Mount	OCP OVP UVLO	1 A	36 V	1.1 "	9.1 mm	0.36 in	0.96 in	24.4 mm	27.9 mm	1.5 kV
Texas Instruments PTMA402050A1AZT	75 V	10 W	5 V	ITE (Commercial)	4-SMD Module	Isolated Module	85 °C	-40 °C	1	Surface Mount		2 A	36 V	1.1 "	9.1 mm	0.36 in	0.96 in	24.4 mm	27.9 mm	1.5 kV	85 %
Texas Instruments PTMA402050P2AS	75 V	10 W	5 V	ITE (Commercial)	6-SMD Module	Isolated Module	85 °C	-40 °C	1	Surface Mount	OCP OVP Remote On/Off UVLO	2 A	36 V	1.1 "	9.1 mm	0.36 in	0.96 in	24.4 mm	27.9 mm	1.5 kV	85 %
