3223 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

DIAMOND GRIP 16-14 HR R 6

Part	Thickness	Thickness	Width - Outer Edges [x]	Width - Outer Edges [x]	Stud/Tab Size	Features	Insulation	Mounting Type	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Termination	Length - Overall [x]	Length - Overall [x]	Contact Material	Terminal Type	Contact Finish	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Length - Overall	Length - Overall	Width - Outer Edges [y]	Width - Outer Edges [y]	Length - Overall	Number of Wire Entries	Material - Insulation	Insulation Diameter [Max]	Color

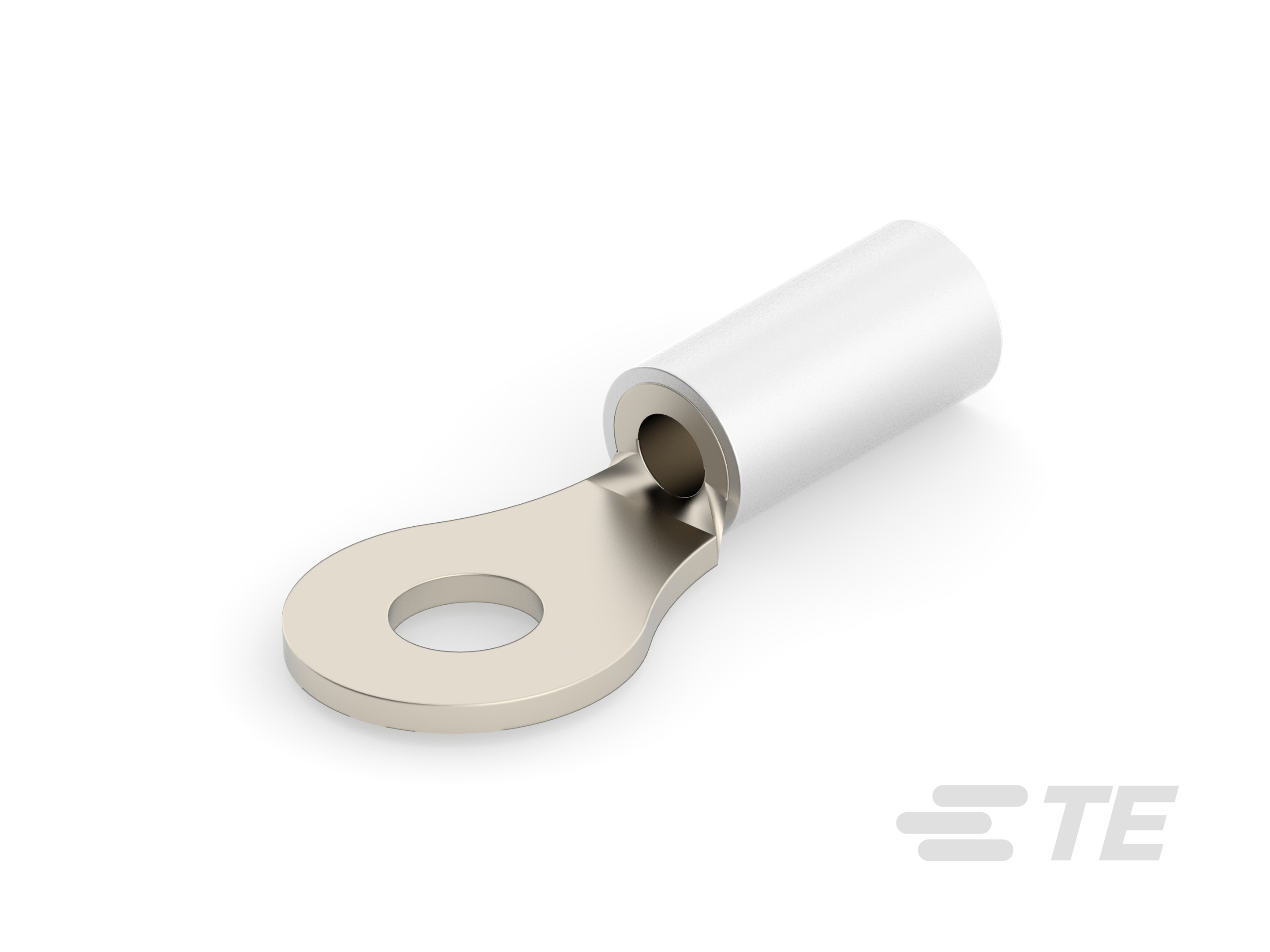

TE Connectivity Raychem Cable Protection 322373	0.031 in	0.79 mm	0.343 in	8.71 mm	6 Stud	Serrated Termination	Non-Insulated	Free Hanging (In-Line)	0.12 in	0.17 in	4.32 mm	3.05 mm	Crimp	20.6 mm	0.811 in	Copper	Circular	Nickel

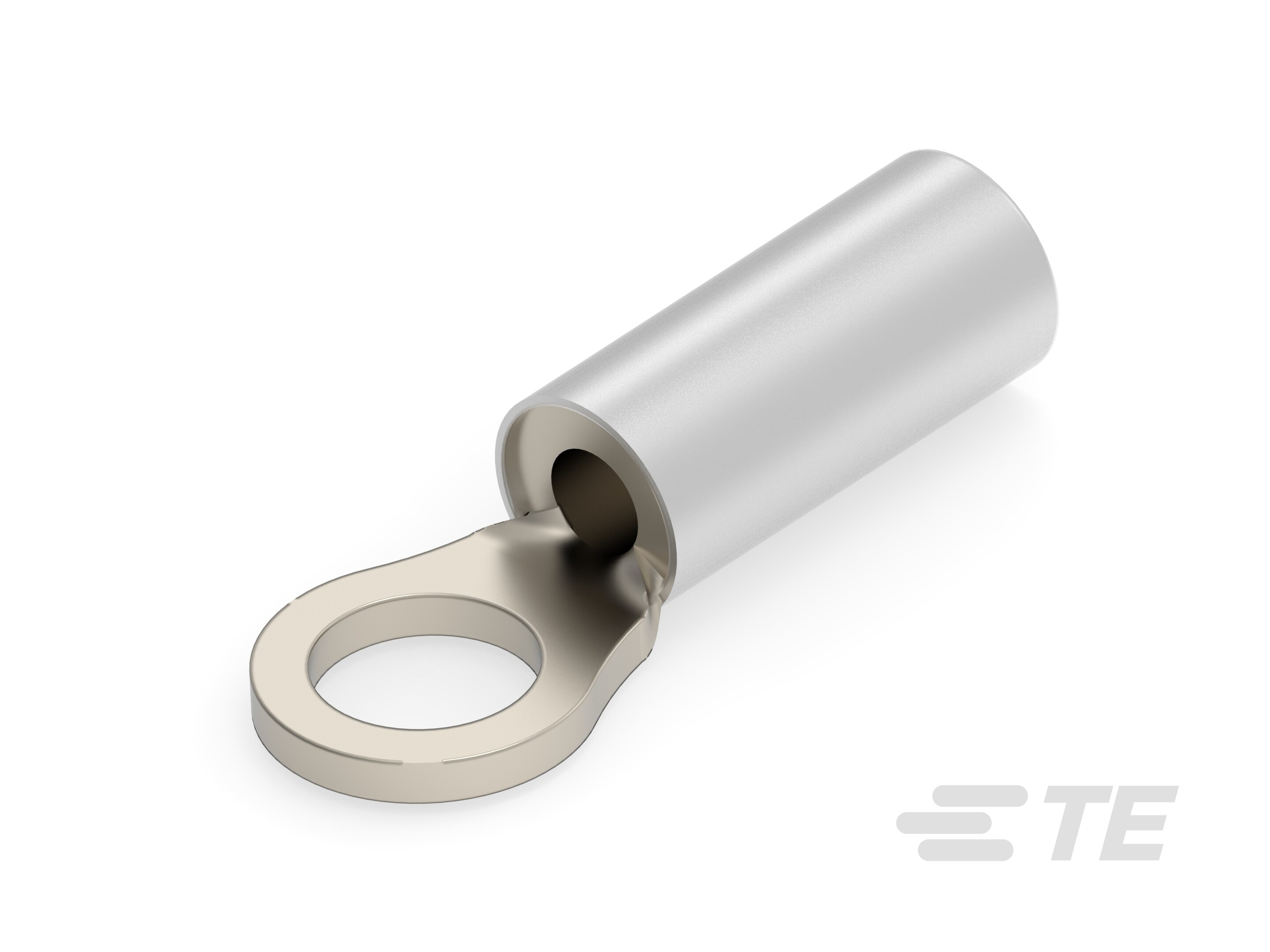

TE Connectivity Raychem Cable Protection 322364	0.031 in	0.79 mm	0.218 in	5.54 mm	6 Stud	Serrated Termination	Non-Insulated	Free Hanging (In-Line)					Crimp			Copper	Circular	Nickel	22 AWG	16 AWG	0.14 in	0.105 in	3.56 mm	2.67 mm	0.624 in	15.85 mm

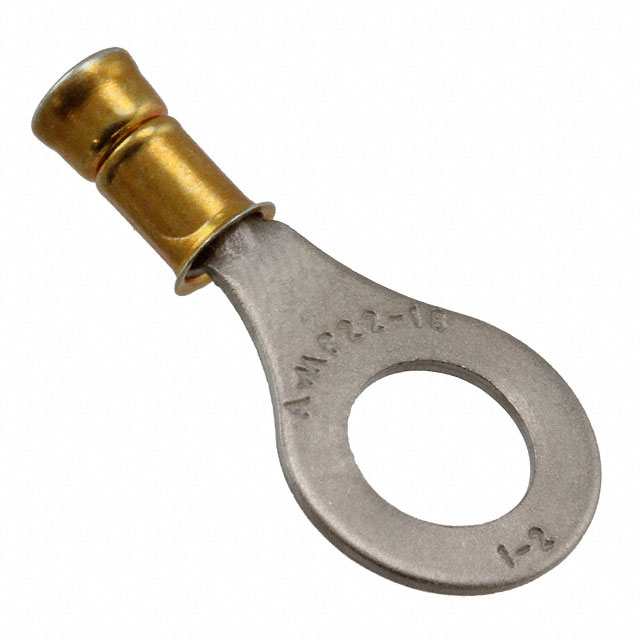

TE Connectivity Raychem Cable Protection 322320	0.031 in	0.79 mm			0.25 Stud	High Temperature Serrated Termination	Non-Insulated	Free Hanging (In-Line)					Crimp			Nickel	Circular		22 AWG	16 AWG	0.14 in	0.105 in	3.56 mm	2.67 mm		1.031 in	0.468 in	11.89 mm	26.19 mm
TE Connectivity Raychem Cable Protection 322325						High Temperature Serrated Mating Area	Non-Insulated						Crimp				Butt Splice Individual Openings Inline		22 AWG	16 AWG										2

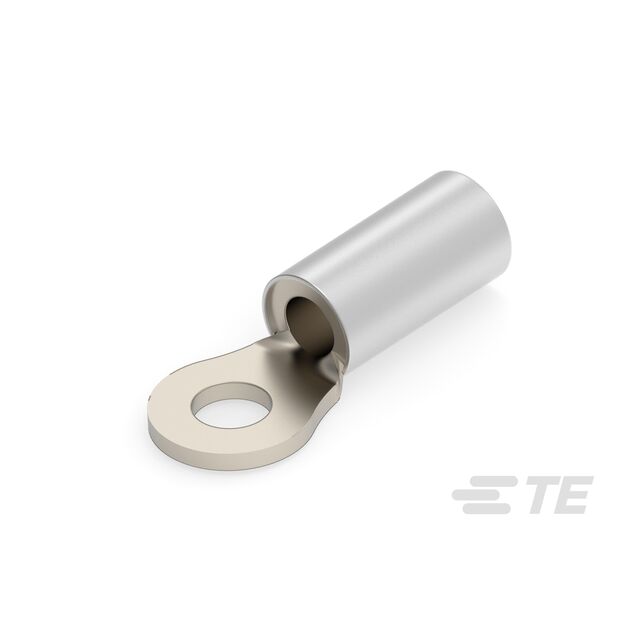

TE Connectivity Raychem Cable Protection 322371	0.031 in	0.79 mm			4 Stud	Serrated Termination	Non-Insulated	Free Hanging (In-Line)	0.12 in	0.17 in	4.32 mm	3.05 mm	Crimp	16.64 mm	0.655 in	Copper	Circular	Nickel									0.25 "	6.35 mm
TE Connectivity Raychem Cable Protection 322367	0.031 in	0.79 mm			0.25 Stud	Serrated Termination	Non-Insulated	Free Hanging (In-Line)					Crimp			Copper	Circular	Nickel	22 AWG	16 AWG	0.14 in	0.105 in	3.56 mm	2.67 mm		1.031 in	0.469 in	11.91 mm	26.19 mm
TE Connectivity Raychem Cable Protection 322341	0.031 in	0.79 mm			0.25 Stud	Serrated Termination	Non-Insulated	Free Hanging (In-Line)	0.12 in	0.17 in	4.32 mm	3.05 mm	Crimp		1.03 in	Nickel	Circular									26.16 mm	0.468 in	11.89 mm
TE Connectivity Raychem Cable Protection 322347						Brazed Seam High Temperature Serrated Mating Area	Non-Insulated						Crimp				Inline Individual Openings (Parallel)													2
TE Connectivity Raychem Cable Protection 322315	0.04 in	1.02 mm			10 Stud	Serrated Termination	Insulated	Free Hanging (In-Line) Right Angle	0.15 "	0.23 in		3.81 mm	Crimp Flag			Copper	Circular	Tin	12 AWG	10 AWG							0.5 in	12.7 mm			Poly-Vinyl Chloride (PVC)	5.84 mm	Natural Yellow Stripe
TE Connectivity Raychem Cable Protection 322332	0.031 in	0.79 mm			6 Stud	Serrated Termination	Non-Insulated	Free Hanging (In-Line)	0.12 in	0.17 in	4.32 mm	3.05 mm	Crimp	16.64 mm	0.655 in	Nickel	Circular										0.25 "	6.35 mm
