R22250 Series

Catalog

SMP / STRAIGHT MALE RECEPTACLE S

Part	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Body Finish	Center Contact Plating	Body Material	Contact Termination	Number of Ports	Shield Termination	Housing Color	Connector Type	Features	Impedance	Mounting Type	Center Contact Material	Fastening Type	Frequency - Max [Max]	Mating Cycles

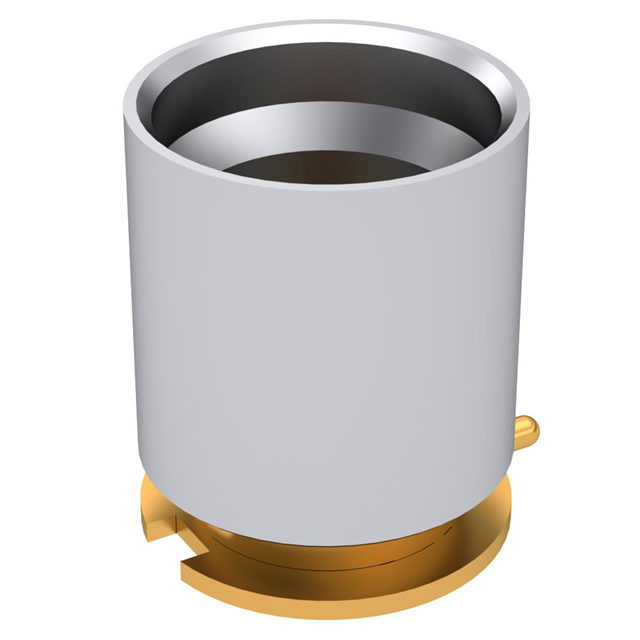

Radiall USA, Inc. R222508700	250 V	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Gold	Gold	Brass Stainless Steel	Solder	1	Solder	Gold Silver	Receptacle Male Pin	Smooth Bore	50 Ohms	Surface Mount	Beryllium Copper	Snap-On	12 GHz
Radiall USA, Inc. R222508000W	335 V	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Gold	Gold	Brass Stainless Steel	Solder	1	Solder	Gold Silver	Receptacle Male Pin	Full Detent	50 Ohms	Surface Mount	Beryllium Copper	Snap-On	18 GHz

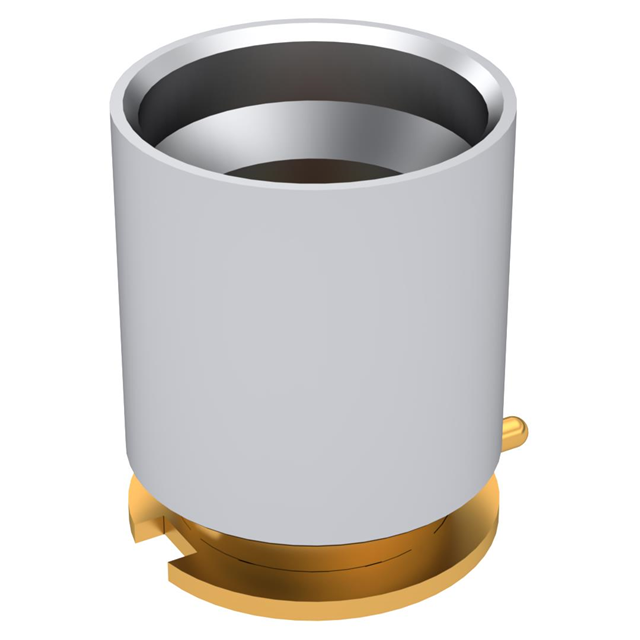

Radiall USA, Inc. R222508000	335 V	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Gold	Gold	Brass Stainless Steel	Solder	1	Solder	Gold Silver	Receptacle Male Pin	Full Detent	50 Ohms	Surface Mount	Beryllium Copper	Snap-On	18 GHz
Radiall USA, Inc. R222508722W	335 V	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Gold	Gold	Brass Stainless Steel	Solder	1	Solder	Gold Silver	Receptacle Male Pin	Catcher's Mitt	50 Ohms	Surface Mount	Beryllium Copper	Snap-On	18 GHz	1000
Radiall USA, Inc. R222508300W	335 V	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Gold	Gold	Brass Stainless Steel	Solder	1	Solder	Gold Silver	Receptacle Male Pin	Limited Detent	50 Ohms	Surface Mount	Beryllium Copper	Snap-On	18 GHz	500
Radiall USA, Inc. R222508300	335 V	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Gold	Gold	Brass Stainless Steel	Solder	1	Solder	Gold Silver	Receptacle Male Pin	Limited Detent	50 Ohms	Surface Mount	Beryllium Copper	Snap-On	18 GHz	500
Radiall USA, Inc. R222508710W
