EA DIP205 Series

Catalog

LCD GRAPHIC DISPLAY MODULES & ACCESSORIES 4X20 DIP CHARACTER DISPLAY WITH LED BACKLIGHT Y/G

Part	Controller Type	Outline Height	Outline Width	Outline Length	Interface	Character Format Feature	Character Width (Dots)	Character Height (Dots)	Operating Temperature (Max)	Operating Temperature (Min)	Text Color	Viewing Area Length	Viewing Area Width	Display Type	Voltage - Supply	Display Rows	Display Columns	Dot Size Width	Dot Size Height	Background Color	Number of Characters	Backlight
Display Visions EA DIP205G-4NLED	SSD1803	10.8 mm	26.8 mm	68 mm	4/8-Bit Parallel Serial SPI	Cursor	5 Dots	8 Dots	70 °C	-20 °C	Black	61 mm	19 mm	LCD - Color	3.3 V	4	20	0.43 mm	0.44 mm	Yellow	80 characters	LED - Black/White LED - Blue/White LED - Yellow/Green

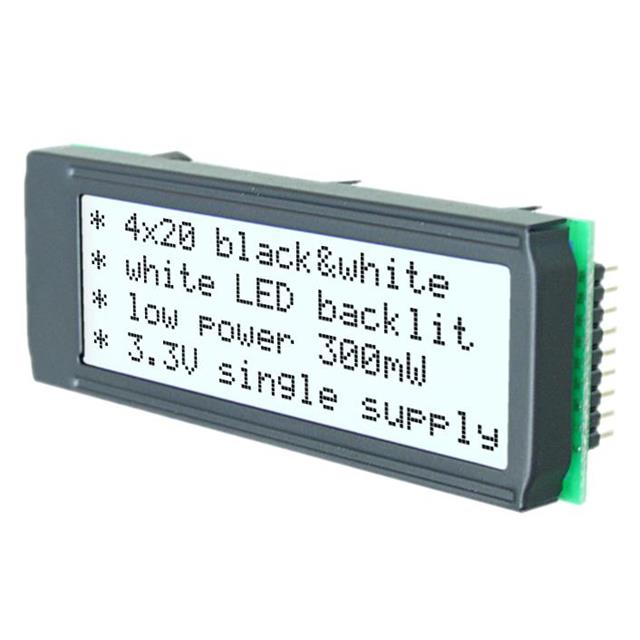

Display Visions EA DIP205J-4NLW	SSD1803	10.8 mm 13.8 mm	26.8 mm	75 mm	4/8-Bit Parallel Serial SPI	Cursor	5 Dots	8 Dots	70 °C	-20 °C	Black	61 mm	19 mm	LCD - Color	3.3 V	4	20	0.43 mm	0.44 mm	White	80 characters	LED - Black/White LED - Blue/White LED - Yellow/Green
