172448 Series

Manufacturer: Molex

Catalog

MINI-FIT JR. HEADER, DUAL ROW, RIGHT-ANGLE, WITH SNAP-IN PLASTIC PEG PCB LOCK, 2 CIRCUITS, PA POLYAMIDE NYLON 6/6 94V-2, TIN (SN) PLATING, GLOW-WIRE CAPABLE

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Contact Length - Post	Contact Length - Post	Insulation Material	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Termination	Connector Type	Material Flammability Rating	Contact Type	Style	Features	Shrouding	Contact Shape	Contact Material	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Number of Positions	Number of Rows [custom]	Number of Positions Loaded	Mounting Type	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Finish - Mating

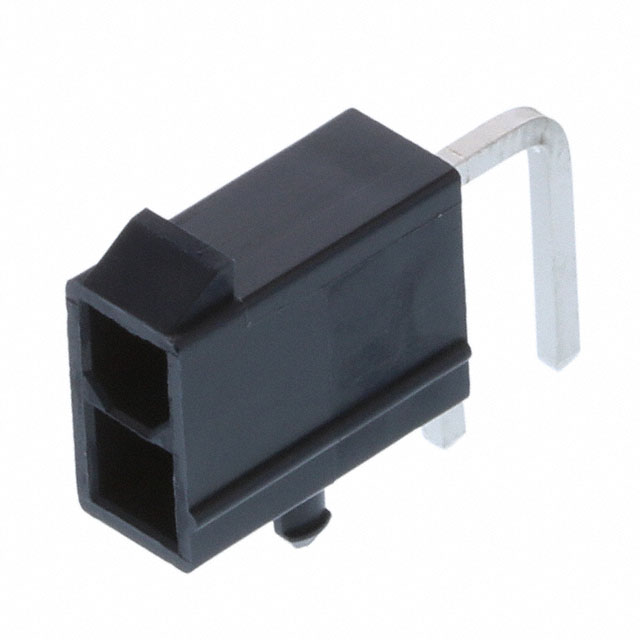

Molex 1724480002	2.54 µm	100 µin	General Purpose Industrial Telecommunications	0.142 in	3.6 mm	Nylon Polyamide (PA)	9.6 mm	0.378 in	0.165 in	4.2 mm	Solder	Header	UL94 V-2	Male Pin	Board to Cable/Wire	Board Lock Glow Wire Compliant	Shrouded - 4 Wall	Square	Brass	Black	100 çin	2.54 çm	Locking Ramp	2	2	All	Right Angle Through Hole	Tin

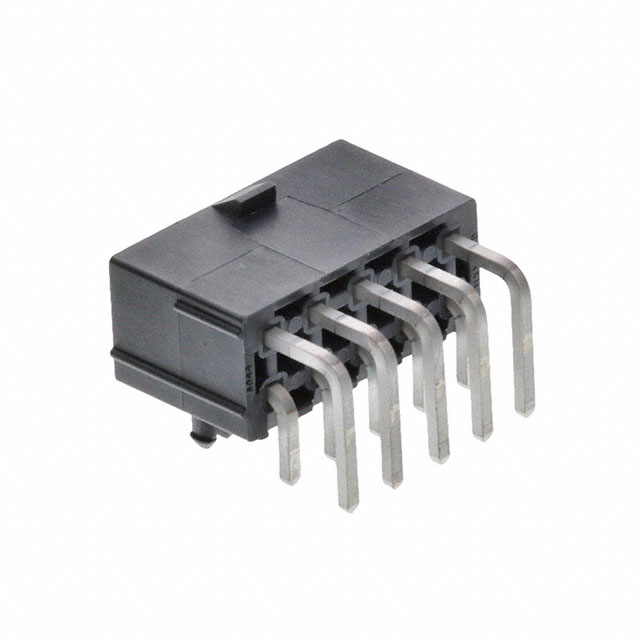

Molex 1724480010	2.54 µm	100 µin	General Purpose Industrial Telecommunications	0.142 in	3.6 mm	Nylon Polyamide (PA)	9.6 mm	0.378 in	0.165 in	4.2 mm	Solder	Header	UL94 V-2	Male Pin	Board to Cable/Wire	Board Lock Glow Wire Compliant	Shrouded - 4 Wall	Square	Brass	Black	100 çin	2.54 çm	Locking Ramp	10	2	All	Right Angle Through Hole	Tin	0.165 in	4.2 mm
Molex 1724480014	2.54 µm	100 µin	General Purpose Industrial Telecommunications	0.142 in	3.6 mm	Nylon Polyamide (PA)	9.6 mm	0.378 in	0.165 in	4.2 mm	Solder	Header	UL94 V-2	Male Pin	Board to Cable/Wire	Board Lock Glow Wire Compliant	Shrouded - 4 Wall	Square	Brass	Black	100 çin	2.54 çm	Locking Ramp	14	2	All	Right Angle Through Hole	Tin	0.165 in	4.2 mm

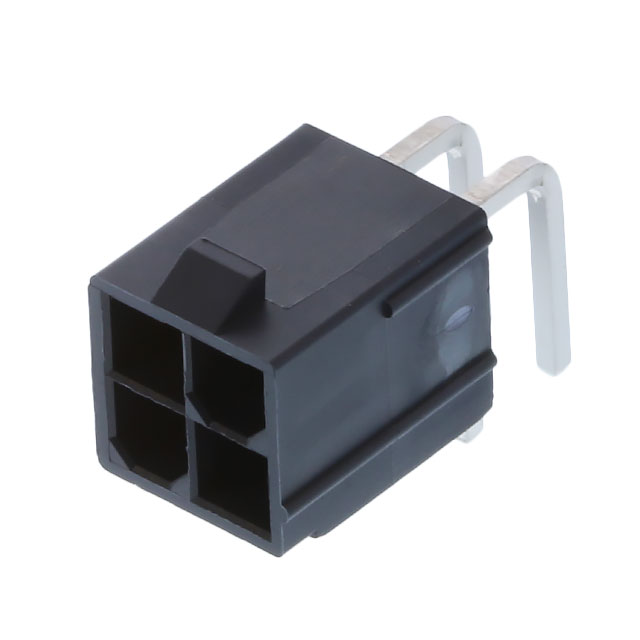

Molex 1724480004	2.54 µm	100 µin	General Purpose Industrial Telecommunications	0.142 in	3.6 mm	Nylon Polyamide (PA)	9.6 mm	0.378 in	0.165 in	4.2 mm	Solder	Header	UL94 V-2	Male Pin	Board to Cable/Wire	Board Lock Glow Wire Compliant	Shrouded - 4 Wall	Square	Brass	Black	100 çin	2.54 çm	Locking Ramp	4	2	All	Right Angle Through Hole	Tin	0.165 in	4.2 mm
Molex 1724481002	2.54 µm	100 µin	General Purpose Industrial Telecommunications	0.142 in	3.6 mm	Nylon Polyamide (PA)	9.6 mm	0.378 in	0.165 in	4.2 mm	Solder	Header	UL94 V-2	Male Pin	Board to Cable/Wire	Board Lock Glow Wire Compliant	Shrouded - 4 Wall	Square	Brass	Black	30 Áin	0.76 Ám	Locking Ramp	2	2	All	Right Angle Through Hole	Tin			Gold

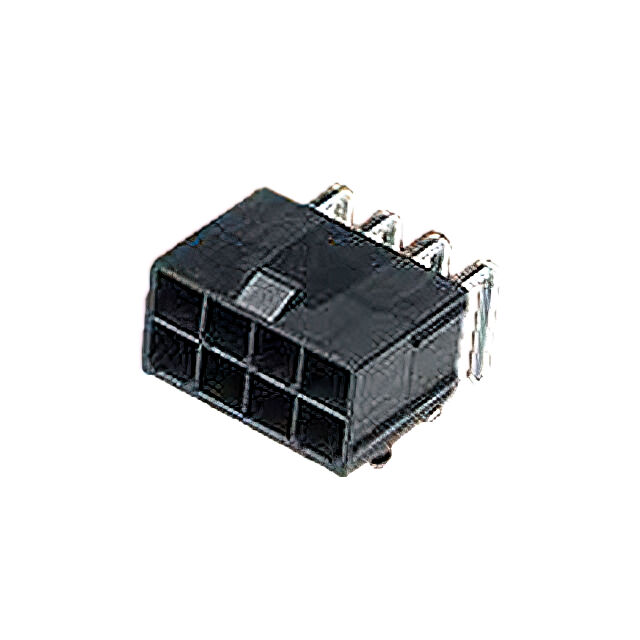

Molex 1724481012	2.54 µm	100 µin	General Purpose Industrial Telecommunications	0.142 in	3.6 mm	Nylon Polyamide (PA)	9.6 mm	0.378 in	0.165 in	4.2 mm	Solder	Header	UL94 V-2	Male Pin	Board to Cable/Wire	Board Lock Glow Wire Compliant	Shrouded - 4 Wall	Square	Brass	Black	30 Áin	0.76 Ám	Locking Ramp	12	2	All	Right Angle Through Hole	Tin	0.165 in	4.2 mm	Gold
Molex 1724481004	2.54 µm	100 µin		0.142 in	3.6 mm	Nylon Polyamide (PA)	9.6 mm	0.378 in	0.165 in	4.2 mm	Solder	Header	UL94 V-0	Male Pin	Board to Board Cable	Board Guide	Shrouded - 4 Wall	Square	Brass	Black	30 Áin	0.76 Ám	Locking Ramp	4	2	All	Right Angle Through Hole	Tin	0.165 in	4.2 mm	Gold

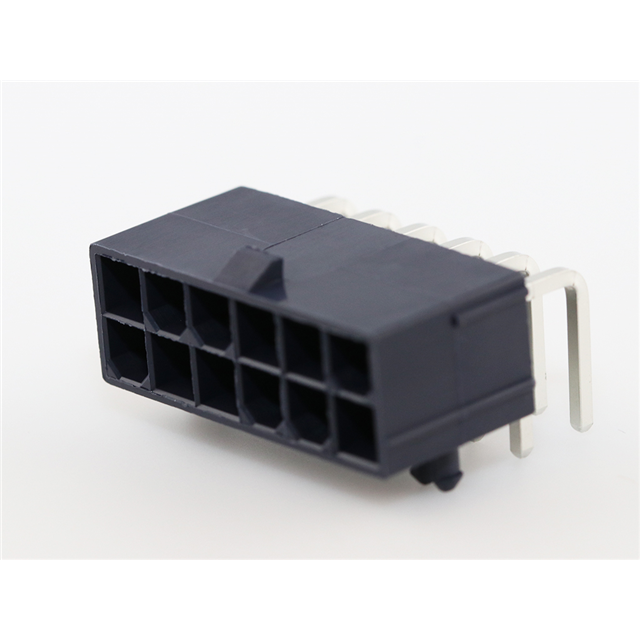

Molex 1724480012	2.54 µm	100 µin	General Purpose Industrial Telecommunications	0.142 in	3.6 mm	Nylon Polyamide (PA)	9.6 mm	0.378 in	0.165 in	4.2 mm	Solder	Header	UL94 V-2	Male Pin	Board to Cable/Wire	Board Lock Glow Wire Compliant	Shrouded - 4 Wall	Square	Brass	Black	100 çin	2.54 çm	Locking Ramp	12	2	All	Right Angle Through Hole	Tin	0.165 in	4.2 mm

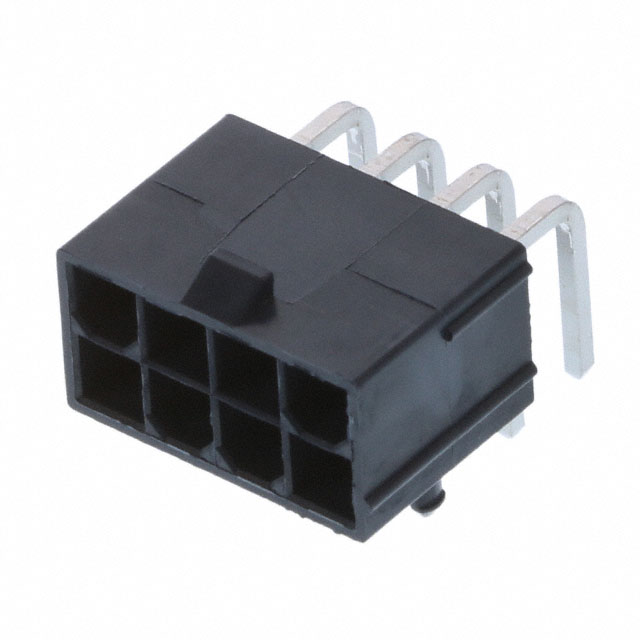

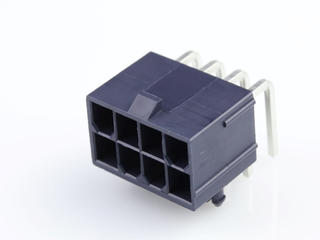

Molex 1724480008	2.54 µm	100 µin	General Purpose Industrial Telecommunications	0.142 in	3.6 mm	Nylon Polyamide (PA)	9.6 mm	0.378 in	0.165 in	4.2 mm	Solder	Header	UL94 V-2	Male Pin	Board to Cable/Wire	Board Lock Glow Wire Compliant	Shrouded - 4 Wall	Square	Brass	Black	100 çin	2.54 çm	Locking Ramp	8	2	All	Right Angle Through Hole	Tin	0.165 in	4.2 mm

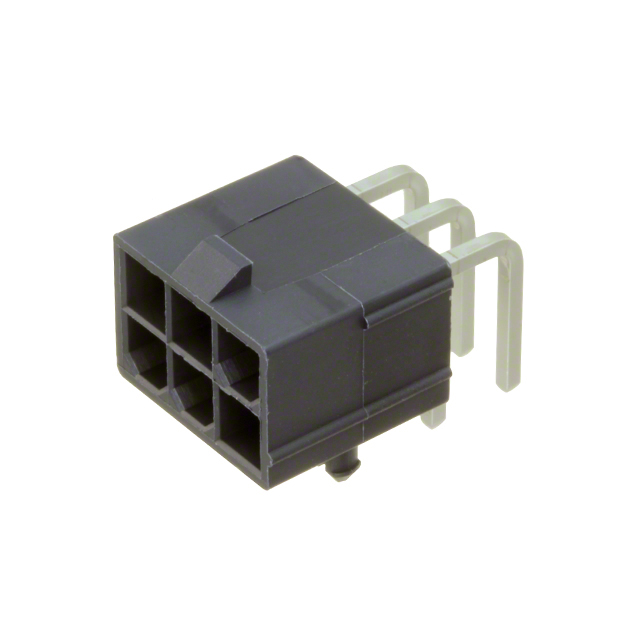

Molex 1724480006	2.54 µm	100 µin	General Purpose Industrial Telecommunications	0.142 in	3.6 mm	Nylon Polyamide (PA)	9.6 mm	0.378 in	0.165 in	4.2 mm	Solder	Header	UL94 V-2	Male Pin	Board to Cable/Wire	Board Lock Glow Wire Compliant	Shrouded - 4 Wall	Square	Brass	Black	100 çin	2.54 çm	Locking Ramp	6	2	All	Right Angle Through Hole	Tin	0.165 in	4.2 mm
