281271 Series

Catalog

CONN HEADER VERT 10POS 2.54MM

Part	Style	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Fastening Type	Insulation Color	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Insulation Height	Insulation Height	Number of Positions	Features	Number of Rows	Contact Length - Post	Contact Length - Post	Shrouding	Insulation Material	Contact Finish - Mating	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Number of Positions Loaded	Contact Material	Connector Type
TE Connectivity Raychem Cable Protection 281271-2	Board to Cable/Wire	0.1 in	2.54 mm	Tin	Push-Pull	Black	Male Pin	30 Áin	0.76 Ám	Through Hole	0.402 in	10.2 mm	10	Keying Slot	2	0.118 in	3 mm	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT) Glass Filled	Gold	Square	2.54 mm	0.1 in	Solder	All	Brass	Header

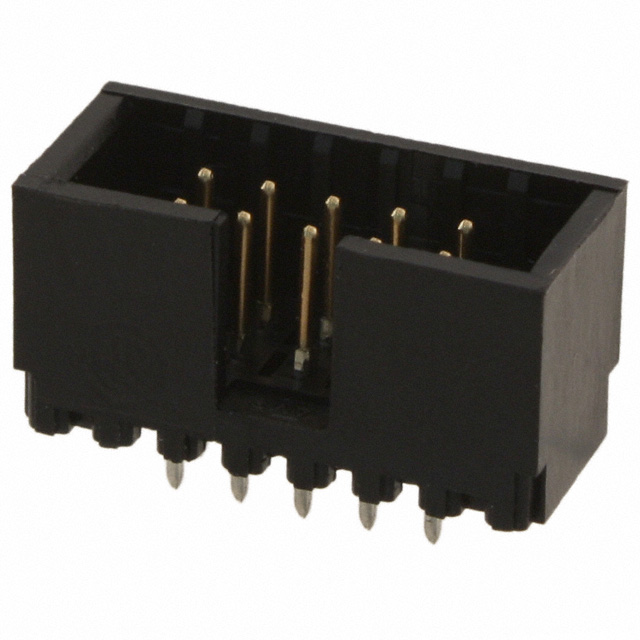

TE Connectivity Raychem Cable Protection 281271-1	Board to Cable/Wire	0.1 in	2.54 mm	Tin	Push-Pull	Black	Male Pin	30 Áin	0.76 Ám	Through Hole	0.402 in	10.2 mm	10	Keying Slot	2	0.118 in	3 mm	Shrouded - 4 Wall	Polybutylene Terephthalate (PBT) Glass Filled	Gold	Square	2.54 mm	0.1 in	Solder	All	Brass	Header
