9309 Series
Manufacturer: Belden Inc.
Beta
⌘K

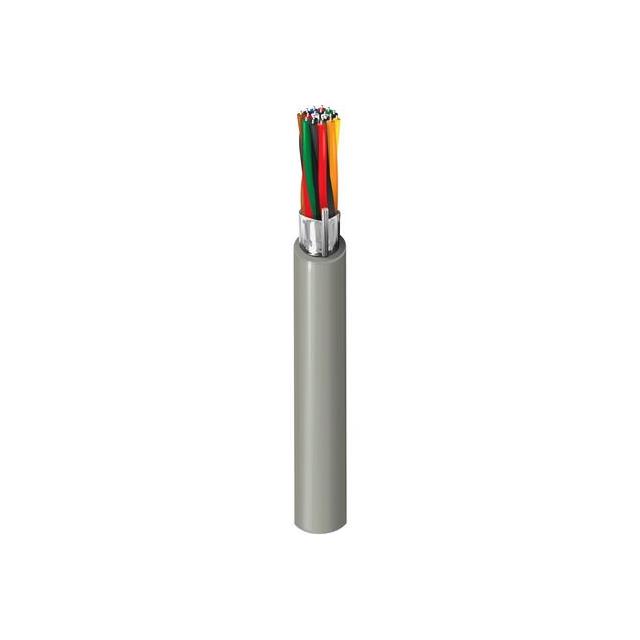

MULTI-PAIR 18COND 22AWG
| Part | Shield Coverage | Shield Material | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Cable Type | Conductor Insulation | Conductor Strand | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Number of Conductors | Jacket (Insulation) Material | Length | Length | Ratings | Usage | Jacket Color | Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Foil | 9.22 mm | 0.363 in | Copper Tinned | Multi-Pair | Poly-Vinyl Chloride (PVC) | Solid | 0.033 in | 0.838 mm | 22 AWG | 18 | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | UL Style 2464 | Audio Control Instrumentation | Chrome | 300 VDC | 80 °C | -20 ░C | Drain Wire |
