2081570 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

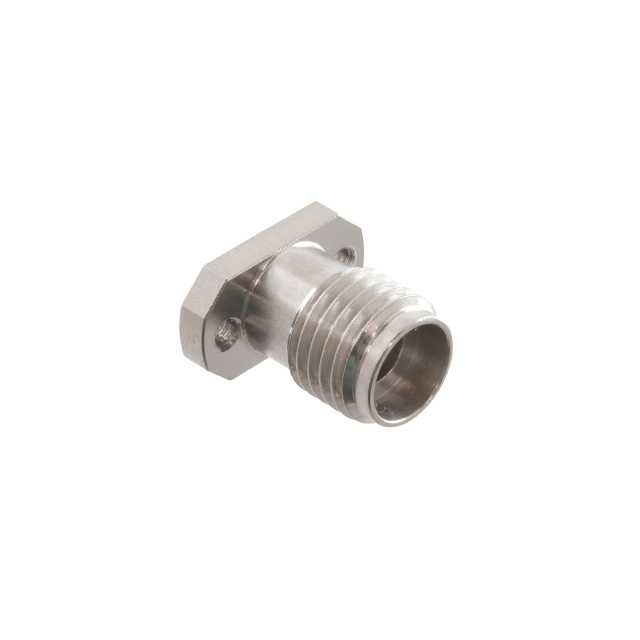

2.92MM JACK 2 HOLE FLANGE RECEPT
| Part | Voltage Rating | Mounting Feature | Connector Type | Shield Termination | Number of Ports | Frequency - Max [Max] | Center Contact Material | Mounting Type | Impedance | Operating Temperature [Min] | Operating Temperature [Max] | Connector Style | Contact Termination | Center Contact Plating | Body Material | Mating Cycles | Dielectric Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 335 V | Flange | Female Socket Jack | Screw | 1 | 40 GHz | Beryllium Copper | Surface Mount | 50 Ohms | -55 °C | 125 °C | 2.92 mm | Compression | Gold | Stainless Steel | 500 | Polyetherimide (PEI) |
 TE Connectivity Raychem Cable Protection | 335 V | Flange | Female Socket Jack | Screw | 1 | 40 GHz | Beryllium Copper | Surface Mount | 50 Ohms | -55 °C | 125 °C | 2.92 mm | Compression | Gold | Stainless Steel | 500 | Polyetherimide (PEI) |
