864-10 Series

Manufacturer: Qualtek

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Filter Type	Switch Features	Voltage Rating - Appliance Inlet	Current Rating - Appliance Inlet [Max]	Current Rating - Appliance Inlet [Min]	Termination	Connector Type	Mounting Type	Approval Agency	Features	Fuse Holder, Drawer	Connector Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]

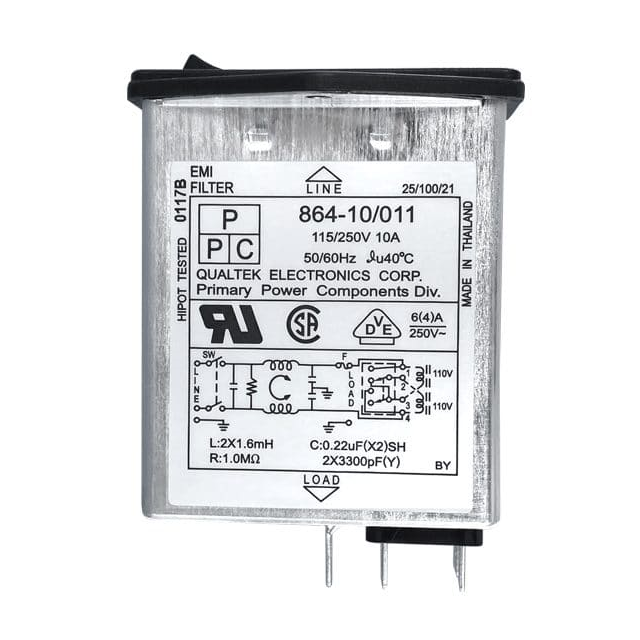

Qualtek 864-10/011	Filtered (EMI RFI) - Commercial	Switch On-Off	250 VAC	6 A	4 A	Quick Connect	Receptacle Male Blades - Module	Flange Panel Mount	CSA UL VDE	Voltage Selector	Fuse Holder	IEC 320-C14	60.2 mm	28.96 mm
Qualtek 864-10/009	Filtered (EMI RFI) - Commercial	Switch On-Off	250 VAC	6 A	4 A	Quick Connect	Receptacle Male Blades - Module	Flange Panel Mount	CSA UL VDE	Voltage Selector	Twin Fused	IEC 320-C14	60.2 mm	28.96 mm
Qualtek 864-10/012	Filtered (EMI RFI) - Commercial	Switch On-Off	250 VAC	6 A	4 A	Quick Connect	Receptacle Male Blades - Module	Flange Panel Mount	CSA UL VDE	Voltage Selector	Fuse Holder	IEC 320-C14	60.2 mm	28.96 mm
